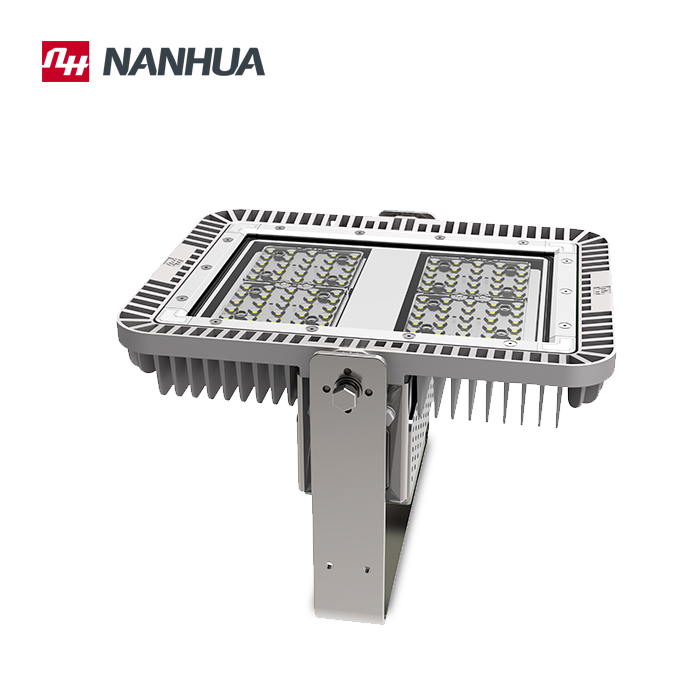

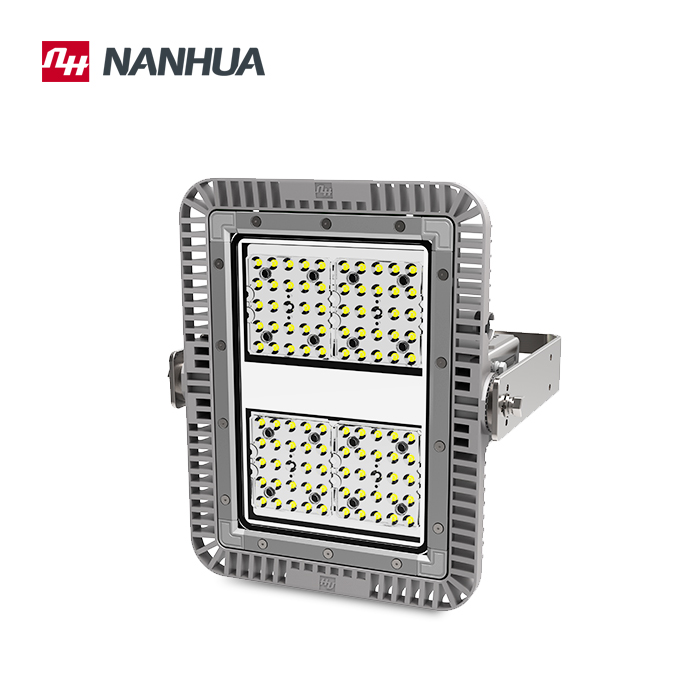

SAA mobile led lighting
Application
Designed for the indoor or outdoor lighting for the ports, mines, squares and large buildings
Major functions and features
- Excellent shockproof and corrosion resistance.
- Adjustable mounting bracket
- Perfect for the onshore application with IP65
- Lead line or Terminal wiring type.
- Multiply power consumptions can be chosen.
- Hollowed-out grid design and aluminum alloy body, light-weight and fabulous heat emission.
- State-of-the-art LED chips, high reliability and stability.
- With anti-drop chain to improve the safety-protection
- Multiply lighting angle is selectable
Specifications
Power consumption | LF301A:100W | Operating voltage | AC100V~AC240V | |
LF302A:150W | Power frequency | 50Hz~60Hz | ||
LF303A:200W | ||||
Color temperature | Cool white:5500K-6000K | Life span | ≥50000hrs | |
Warm white:3000K-3500K | Color rendering index | Cool white: Ra=75 | ||
Lighting efficacy | 85-90 lm/w | Warm white: Ra=80 | ||
PF | >0.9 |
|
| |
Weight | LF301A: 9.5Kg | Humidity | 10% ~ 95% (non coagulation) | |
LF302A: 10.5Kg | Operating temperature | -30°C ~ +60°C | ||
LF303A:11.2Kg | ||||
Material | Body:Aluminum alloy | IP rate | IP65 | |
Lens:PC |
|
| ||
Installation details
- Secure the light on a smooth surface which has enough strength with M10 screws
- Fix the anti drop chain at the appropriate place where has enough mechanical strength
- Open the gland cover at the side of the lamp, connect the power lines to terminal L, N, PE or directly connect to L, N, PE power through lead lines.
- Then fasten the scews of back borad and connect power.
Notice
- Temperature rise when light working is normal phenomenon.
- Make sure there are more than 3m between light and lighted objects to avoid fire.
- Do not cover light with any object.
- Replacement and maintenance should be processed by professionals after power off.
