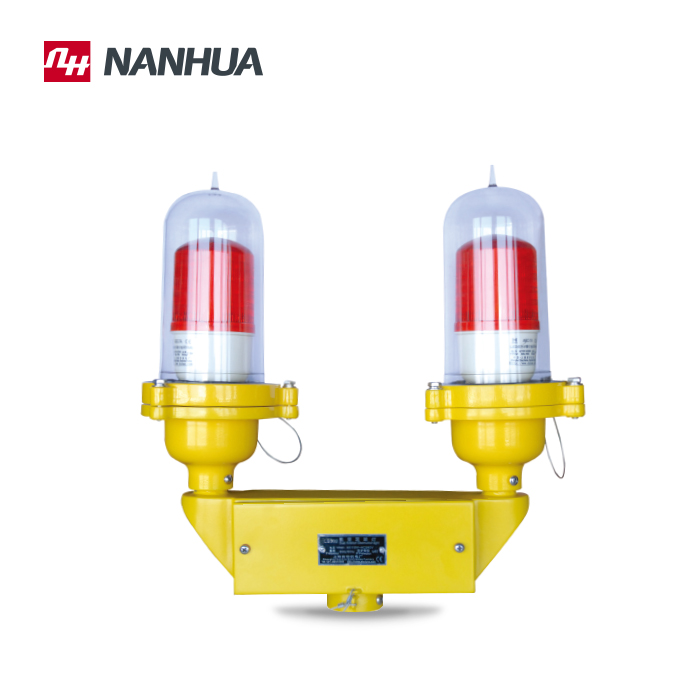

Dual Aviation Obstruction Light
NANHUA LS302C Dual/Double LED Aviation Obstruction Light/flashlight is specially designed for a wide variety of cranes used in harbors , metallurgies, tall buildings, telecom towers and lighthouses.The product consists of two ABC-7L aviation obstruction lights and die cast aluminum light fitting, which houses the electronics and LED cluster, providing high luminance, stable performance, external long life, environmental protection, corrosion resistance, shockproof and ease of mount.
| Description | Parameter |
|---|---|
| Supply voltage | AC110V~AC240V DC20V~DC60V (optional) |
| Frequency | 50Hz ~ 60Hz |
| IP Protection | IP65 |
| Lamp wattage | 5W |
| Luminous intensity | >10cd |
| Visual distance | 5Km (AT=0.85) |
| Horizontal divergence | 360° |
| Vertical divergence | 10° |
| LED lifetime | 100,000 hrs |
| Ambient Temperature | -30°C ~ +70°C |
| Dimesions | 380mm (L) * 118mm (W) * 385mm(H) |
| weight | <4kg |
| Flash mode | Steady Burning (flashing type available upon request) |
Functions & Features
- Employ cold rolled steel enclosure with powdercoat paint finishes, providing
- corrosion resistance and durability.
- Use LED cluster as bulb, the life is more than 100,000 hours.
- Stainless steel wire is used to secure the unit against falling in operation, and ease of mount.
- Sealed construction, featuring environmental protection.
- Built-in micro monitoring controller unit can detect the light faulty generate an alarm in case of power failure and photocell can switch ON/OFF the light at dawn and dusk.(optional)
- Flashing type or steady burning are available
Product File
- Model: NANHUA LS302C Dual/Double LED Aviation Obstruction Light/flashlight
- On Stream Date: Jul. 2, 2008
- Applications: High building, tower, crane, high chimney, lighthouse, high voltage cable tower, oil well, etc.
- Standard: MH-T 6012-1999; ICAO Annex 14
- Certificate:
- Wind Tunnel Test Report
- Improve Records:None
- Fault Records: NoneQuantity/Delivery Day: 5pcs / 7 Days
Production Flow Chart
We have kept our focus on people working under hazardous conditions, from harbors to mining fields, metallurgical plants, tall buildings, highways and offshore sites etc. Our engineers go to those work sites to develop more reliable industrial warning and communication products. The main products of nanhua:aviation obstruction light,industrial light,anemometer,becon and siren,marine navigation light,industrial communication, Solar beacon/airport runway light//taxiway/wind tower lighting.
Company Introduction
For more than 24 years, Shanghai NANHUA Electronics focus on the designing, manufacturing and marketing of industrial application
products. Specialized in the Aviation obstruction light system for international market since 2007 which have been ICAO and FAA
Certified. A complete line of cost-effective obstruction lighting and control solutions for the telecom tower, chimney, high building, port
machinery and any other high positions with dangers threaten for the aircraft, and have been proven to be professional design and
highly reliable.
NANHUA Electronics located in Shanghai, China, with a factory of 6000 square meters, 283 staffs till JAN of 2014 including 37 in R&D
center, which is ISO9001 quality authentication certified.
Our Philosophy
Nanhua believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for Nanhua’s
existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
Nanhua pursues broad perspective and believes that imaginative work can change the world. We expect Nanhua to become an internationally
competitive firm. Through constant hard work we anticipate a prosperous future.
Nanhua dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in Nanhua.
Our Company
On Exhibition
Show Room
Certification
ICAO SABS FAA CAAC Test Report Patent CE UL IECEx ATEx others
Nanhua customer service aims to provide our customers with accessible, efficient and satisfactory technical support and service.
- Quality enhancement: reducing the service requirements after sales.
- Efficient service: Guaranteeing specialized, reliable, prompt and efficient customer service.
- Consulting service: Responding to inquiries about products and services, handling repairs, and resolving complaints about customer service.
- Admissibility of complaints: Solving problems or proposing solutions within 24 hours
After-sale policy
Dear users, thank you for selecting products from Shanghai Nanhua Electronics Company.
- All Nanhua product users will enjoy services of free repair within one year after the purchase date and lifetime maintenance after sales.
After-sales service terms of aviation obstruction lights
1. Two years full warranty, five years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Customization Service
We believe that the more accessible our products are, the less they will cost our customers. For instance, our customers can employ available supply voltage, configure factory tones, employ standard socket interface, and so on.
We are providing the following services:
- Default tone setup and specified tone writing (standard safety tone, music, voice)
- Voltage customization (DC12V,DC24V,AC110V,AC220V,AC380V)
- Color customization (lamp, lampshade and housing)
- Flash warning light frequency setup
- Special voltage customization(DC12V~DC220V,AC24V~AC3000V)
- Volume adjustment
- Control mode modification
- Wattage adjustment
- IP protection enhancement
- Performance enhancement in high and low temperature
- Anti-electromagnetic interference enhancement
- Operating distance extension
- Accessories customization
- Functional circuit addition (Photoelectricity control, redundancy switch)
In order to solve the problems in practical application, we compile the feedback according to hotspots from users.
Principles of installation & operation (Must Read)
- Please strictly comply with Product Instruction Booklet issued by Nanhua during the installation process.
- Please also strictly comply with Product Instruction Booklet issued by Nanhua in selection of wattage and input.
- Please pay more attention to the mounting environment. There are constant malfunctions due to negligence and random installation.
Q. What is covered by your warranty?
Answer:The warranty given as standard ensures that the performance of the light meets the required specifications for the entire 5 year period. Please see Warranty for details.
Q. How does one know when an LED product is out of photometric specifications?
Answer:Our warranty allows for a minimum of 5 years of operation while ensuring the beacon meets the FAA"s minimum photometric requirements. LED"s do not "burn out" similar to incandescent. An LED will have a slight degradation of light output with use. This is similar to the degradation of a strobe tube.
