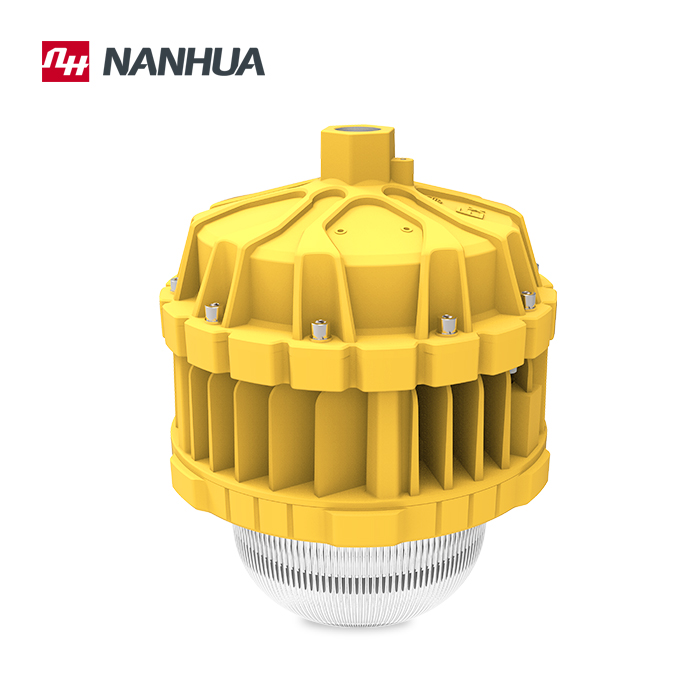

LP2 high quality led explosion proof light
Click on the image to view the original image
Product： views：4LP2 high quality led explosion proof light
Branch： NANHUA
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 19:53
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC 110-240V (50-60Hz)
Lamp Power(W):
45
CRI (Ra>):
80
Lamp Luminous Flux(lm):
3570
IP Rating:
IP66
Working Lifetime(Hour):
100000
Working Temperature(℃):
-30 - +60
Emitting Color:
White
Certification:
CE
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Model Number:
LP102
Light Source:
LED
Products name:
LP2 high quality led explosion proof light
Standard:
IEC60079-0,IEC60079-1,IEC60079-31
Light source:
LED
Power consumption:
20w/30w/45W
Operating voltage:
AC 110-240V (50-60Hz)
IP Class:
IP66
Anti-corrosion:
C4/WF1/WF2
Operating temperature:
-30°C~+60°C
Humidity:
10%~95%
Weight:
8Kg
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package
LP2 high quality led explosion proof light
Port
Shanghai
Lead Time:
10 days

LP2 high quality led explosion proof light







Product Description
 Application



Ex LED Area light was designed specially to offer the lighting system in a variety of Hazardous Area applications like oil & gas industry, chemical industry, marine, oil tanker and offshore platform, both indoor and outdoor.,

Applied to explosive gas mixture Zone 1, Zone 2 and ⅡA, ⅡB;

Applied to explosive dust mixture Zone 21, Zone 22.

Applied to T1-T6.





Major functions and features



• Aluminum alloy structure

• PC lens processed by the professional optics design

• Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.

• Exd structure design to offer more reliable explosion proof quality.

• Independent Exe connection cavity to improve the safety

•  Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions

•  High duty LED light source to ensure long life operation and superb energy saving.

•  Constant current design to guarantee the operation stability.





Specifications



Standard

IEC60079-0,IEC60079-1,IEC60079-31,

ATEX Marks

Ext ⅢCT6 Db

Light source

LED

Power consumption

20w/30w/45W/

Operating voltage

AC 110-240V (50-60Hz)

Anti-corrosion

C4/WF1/WF2

Cable entry

M25*1.5/NPT 3/4”cable entry, suitable for ø10~ ø14mm² cable

≤2.5mm² conductor

Installation

Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount





Operating temperature

-30°C~+60°C

IP Class

IP66

Humidity

10%~95%

Weight

8Kg





Model definition



LP 2

Bracket mount(A) Ceiling mount(X)

Installation   30°wall mount (B) 90° wal mount(D)

Jib mount(G)   guardrail mount (H) Flange mount(F)

Power consumption

3: 20W

4: 30W

5: 45W

6. 55w



Classification





Serial number  2



ATEX type





Classification rules





Explosive gas mixture

Explosive dust mixture

Ex marking

Application

0

ⅡB



ExdⅡBT6 Gb

Zone 1, 2

1

ⅢC

Ext ⅢCT6 Db

Zone 21, 22



e.g.: LP205X Ex-proof light, ⅡC explosive gas atmosphere, power 45w ,ceiling mount, Ex marking: Ex d IIC T6 Gb, Applied zone 1, 2
