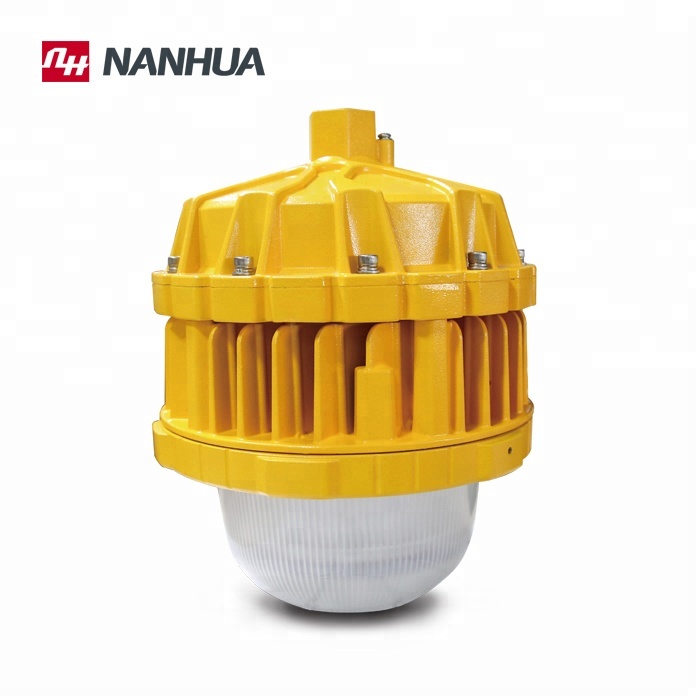

LP2 explosion proof lighting
Ex LED Area light was designed specially to offer the lighting system in a variety of Hazardous Area applications like oil & gas industry, chemical industry, marine, oil tanker and offshore platform, both indoor and outdoor.,
Applied to explosive gas mixture Zone 1, Zone 2 and ⅡA, ⅡB;
Applied to explosive dust mixture Zone 21, Zone 22.
Applied to T1-T6.
Major functions and features
- Aluminum alloy structure
- PC lens processed by the professional optics design
- Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
- Exd structure design to offer more reliable explosion proof quality.
- Independent Exe connection cavity to improve the safety
- Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
- High duty LED light source to ensure long life operation and superb energy saving.
- Constant current design to guarantee the operation stability.
Specifications
Standard | IEC60079-0,IEC60079-1,IEC60079-31, | ||
ATEX Marks | Ext ⅢCT6 Db | ||
Light source | LED | ||
Power consumption | 20w/30w/45W/ | ||
Operating voltage | AC 110-240V (50-60Hz) | ||
Anti-corrosion | C4/WF1/WF2 | ||
Cable entry | M25*1.5/NPT 3/4”cable entry, suitable for ø10~ ø14mm² cable ≤2.5mm² conductor | ||
Installation | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount | ||
|
| ||
Operating temperature | -30°C~+60°C | IP Class | IP66 |
Humidity | 10%~95% | Weight | 8Kg |
Model definition
LP 2
Bracket mount(A) Ceiling mount(X)
Installation 30°wall mount (B) 90° wal mount(D)
Jib mount(G) guardrail mount (H) Flange mount(F)
Power consumption
3: 20W
4: 30W
5: 45W
6. 55w
Classification
Serial number 2
ATEX type
Classification rules
| Explosive gas mixture | Explosive dust mixture | Ex marking | Application |
0 | ⅡB |
| ExdⅡBT6 Gb | Zone 1, 2 |
1 | ⅢC | Ext ⅢCT6 Db | Zone 21, 22 |
e.g.: LP205X Ex-proof light, ⅡC explosive gas atmosphere, power 45w ,ceiling mount, Ex marking: Ex d IIC T6 Gb, Applied zone 1, 2
