- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- FR191W
- Products name:
- FR191W aviation warning obstacle light control unit/outdoor
- Working Voltage:
- AC110V~AC240V
- Max. alarm output:
- 9
- Max. control light:
- 8
- Flash rate:
- 30~60 times/min(adjustable)
- Photocell sensitivity:
- 70~100Lux(on/off)
- Alarm output:
- Dry contact
- Control mode:
- Steady burning/flashing
- Temperature:
- -30~+70
- IP grade:
- IP65
- Supply Ability:
- 500 Set/Sets per Quarter
- Packaging Details
- carton packaging or wooden cases(Large quantities) special customized for FR191W aviation warning obstacle light control unit/outdoor
- Port
- Shanghai
- Lead Time:
- Normally 10 days,depend on goods quantity

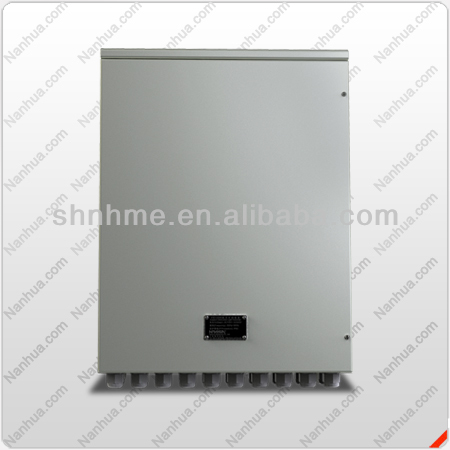

FR191W aviation warning obstacle light control unit/outdoor
FR191 Control Box can give alarm when light fault, control light flashing frequency and on / off at dusk / dawn, also can be used in street light.
| Description | Parameter |
|---|---|
| Working Voltage | AC110V~AC240V |
| Max. alarm output | 9 |
| Max. control light | 8 |
| Flash rate | 30~60 times/min(adjustable) |
| Photocell sensitivity | 70~100Lux(on/off) |
| Alarm output | Dry contact |
| Control mode | Steady burning/flashing |
| Temperature | -30C ~ +70C |
| IP grade | IP65 |
| Humidity | 10% ~ 95% (no condensing) |
| Weight | 10±0.5 Kg |
| Material | Enclosure: Cold rolled steel |
Functions & Features
- Control all the light flashing at the same time
- Individual alarm signal and LED indicator shows corresponding light working state.
- Alarm output passive signal
- Automatic/override manual are available, if in override state, the light will not control by photocell
- Alarm output when outdoor photosensor fault
Product File
- Model: FR191W
- On Stream Date: Aug. 2010
- Applications: High building, tower, crane, high chimney, lighthouse, high voltage cable tower, oil well, etc.
- Standard: MH-T 6012-1999; ICAO Annex 14
