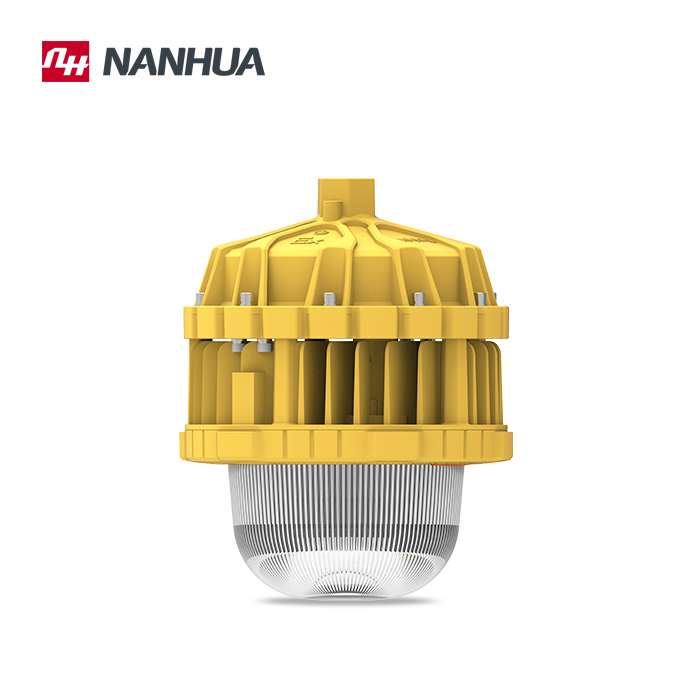

LP2X Ex LED Area Light(obstruction light) series
Application
Ex LED Area light was designed specially to oil exploration, oil refining, chemical industry, military industry and other dangerous environment.
Suitable for high-rise buildings, drilling platform, oil tanker, oil tanks need to have the place of the warning role on aircraft.
and is suitable for explosive gas environment place to zone 1 and zone 2; Applicable to Ⅱ A and Ⅱ B , Ⅱ C explosive gas environment.
Suitable for combustible dust area 20, 21, 22.
Suitable for T1 - T6 temperature classes.
Major functions and features
• Aluminum alloy body.
• ABS plating aluminum film reflector, professional optical design.
• Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Exd structure design to offer more reliable explosion proof quality.
• Independent Exe connection cavity to improve the safety.
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions .
• High duty LED light source to ensure long life operation (100000h) and superb energy saving.
• Constant current design to guarantee the operation stability.
Specifications
Standard | GB3836.1,GB3836.2,GB12476.1,IEC60079-0,IEC60079-1,IEC60079-31 MH/T 6012-1999,FAA1505345-43G,MH5001-2013 | ||
Ex-mark | Ex d ⅡC T6 Gb/ Ex tb ⅢC T85℃ Db IP66 | ||
Light source | LED | ||
Power consumption | 30W | ||
Operating voltage | AC 110-240V (50-60Hz) | ||
Anti-corrosion | C4/WF2 | ||
Cable entry | M25*1.5 cable entry, suitable for ø10~ ø14mm² cable ≤2.5mm² conductor | ||
Installation | flange mount (F),bracket mount(A) | ||
luminescent intensity | 2000cd±25% | light Angle | ≥3°(V)/,360°(H) |
Working condition | Flashing (frequency adjustable) | color | red |
Operating temperature | -40~+60 | IP Class | IP66 |
operating humidity | 10%~95% | Weight | 8Kg |
Model definition
Classification rules
| Explosive air condition | Explosive dust condition | Ex-mark | Zone |
0 | ⅡB |
| Ex d ⅡB T6 Gb | 1,2 |
1 |
| ⅢC | Ex tb ⅢC T85°C Db | 20,21,22 |
e.g.:LP202XO Ex LED Area light(obstruction light) ⅡC explosive dust condition light,30W, ceiling mount,Ex-mark:ExdⅡC T6 Gb,Applied zone 1,2.
Installation
Order instruction
- Please choose the right model based on the model definition
e.g: 30W Ex LED Area light(obstruction light), bracket mount,
ⅢC (explosive dust condition zone 20), the model is LP212AO
Ex-mark:Ex tb ⅢC T85℃ Db IP66.
- No lead wire is offered, please order it based on the specifications.
- Mount accessories please refer to the below table.
NO. | Name | note |
1 | LP2 EX LED Area light |
|
2 | Bracket adapter plate |
|
3 | Bracket mounting |
|
17 | Flange |
|
