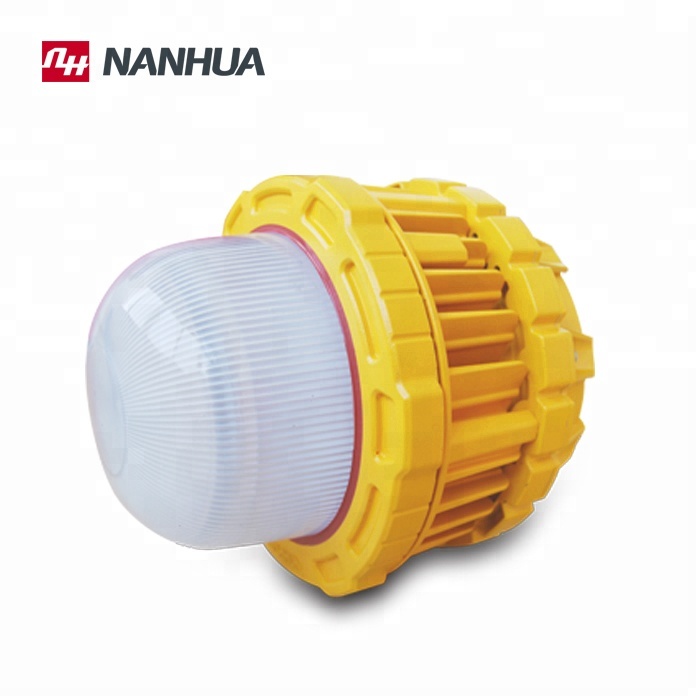

EX-proof obstruction light
Major functions and features
• Aluminum alloy body.
• ABS plating aluminum film reflector, professional optics design.
• Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Flameproof enclosures “d” structure design to offer more reliable explosion proof quality.
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions .
• High duty LED light source to ensure long life operation (100000h) and superb energy saving.
• Constant current design to guarantee the operation stability.
Specifications
Standard | IEC 60079-0:2011, IEC 60079-1:2007-04, IEC 60079-31:2008; EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009; | |||
Marking | Ex d ⅡC T6 Gb,Ex tb IIIC T85°C Db IP66 Ⅱ 2 G Ex d ⅡC T6 Gb, Ⅱ 2 D Ex tb ⅢC T85°C Db | |||
Certificate No. | IECEx CQM 15.0002X | TÜV 15 ATEX 7675 X | ||
Issued by | CQM | TÜV Rheinland (0035) | ||
Light source | LED | |||
Power consumption | 30W | |||
Operating voltage | AC 110V-240V (50-60Hz) | |||
Anti-corrosion | C4//WF1/WF2 | |||
Cable entry | M25*1.5 or NPT3/4 cable entry, suitable for ø10~ ø14mm² cable ≤2.5mm² conductor | |||
Installation | flange mount (F),bracket mount(A) | |||
Intensity | 2000cd±25% | light Angle | ≥3°(V)/,360°(H) | |
Operating mode | Flashing 20F/M(other can be customized) | color | Red | |
Operating temperature | -40℃~+60℃ | IP rating | IP66 | |
Humidity | 10%~95% | Weight | 8Kg | |
Classification rules
| Explosive gas mixture | Explosive dust mixture | Ex marking | Application |
0 | ⅡB |
| ExdⅡBT6 Gb | Zone 1, 2 |
1 | ⅢC | Ext ⅢCT6 Db | Zone 21, 22 |
e.g.: LP101X Ex-proof light, ⅡB explosive dust condition, ceiling mount, Ex marking: Ext ⅢCT6 Db, Applied zone 1, 2
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
