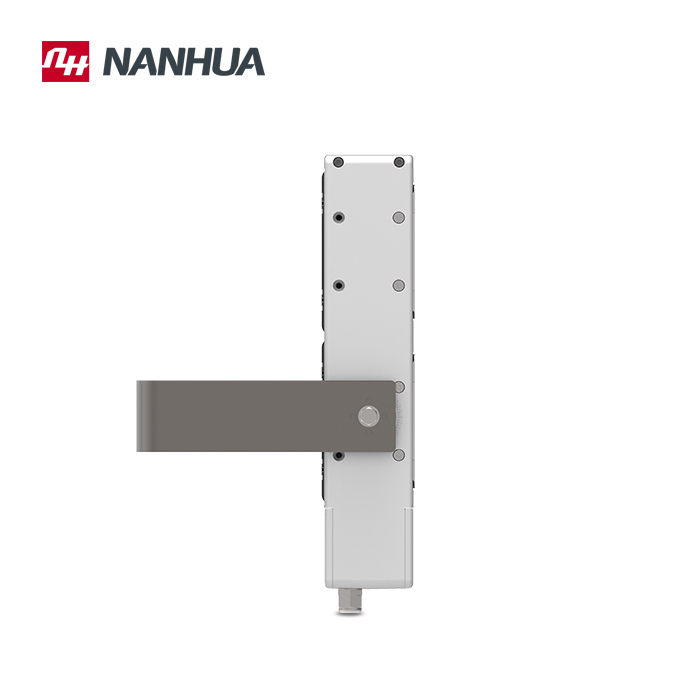

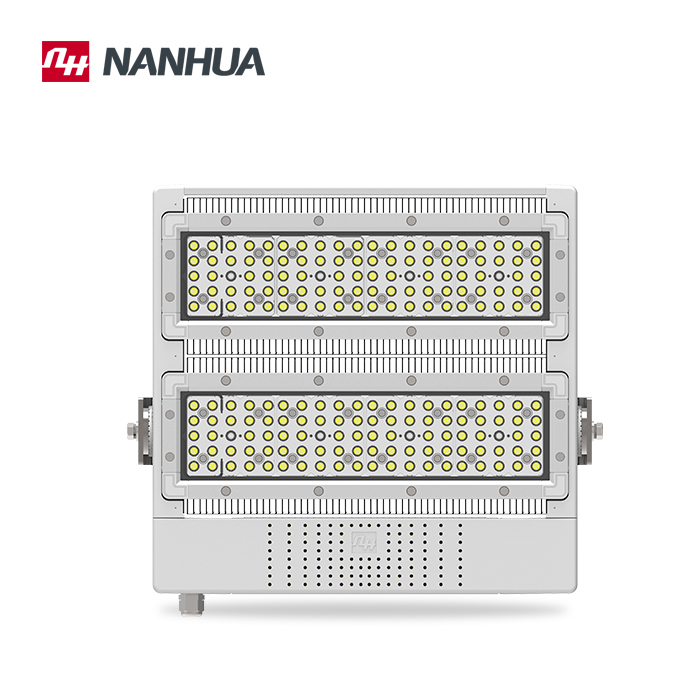

NANHUA LF430 High power LED flood light industrial products/high mast light
Application
NANHUA LF430 High power LED flood light industrial products/high mast light specially designed for the lighting system of port terminals ( port cranes and high mast tower), mines,sport stadium and large buildings
Major functions and features
- integrated module and professional lens optics design
- professional fin-plate thermal design, pass through the thermal simulation
- entire light weight structure design
- 2 degree dip angled backside structure design to avoid dust accumulation
- scientific layout and photoelectricity separation design
- with protective vent to avoid led chips overtemperatured
- specialized vibration resistance components and ingress protection design
- world renowned brand led chips and power driver
- self-design (optics, electricity, thermal, structure, mould)
- bi-direction 350 degree adjustable mounting bracket
- with safety chain to improve the safety protection capacity
Specifications
power consumption | 400w | voltage | ac100v~ac240v |
cct | 5500k-6000k 3000k-3500k ≤2700k | cri | 5500k-6000k ra≥75 <2700k/3000k-3500k ra≥80 |
light efficacy | 90 lm/w | frequency | 50hz~60hz |
| lifetime | ≥50,000hrs | pf | >0.9 |
beam angle | 15 /25 /60 /90 /120 | humidity | 10% ~ 95% (no coagulation) |
weight | 19kg | material | body:aluminum len:pc
|
working temperature | -30 ~ +60 | ip class | ip65 |
Installation
- secure the light on a smooth surface which has enough strength with m12 screws, it a must to equip with anti-off nuts.
- fix the safety chain at the appropriate place where has enough mechanical strength
- correctly connect the lead wire to l, n, pe of the power supply
- power it on to work
Notice
- temperature rise when light working is normal phenomenon.
- make sure there are more than 3m between light and lighted objects to avoid fire.
- do not cover light with any object.
- replacement and maintenance should be processed by professionals after power off
Product File
Model: NANHUA LF430 High power LED flood light industrial products/high mast light
Applications: Specially designed for the lighting system for hoist and lifting cranes working at Ports & Quays, Container yard, large-scale buildings, etc.
Standard:
Certificate:
Improve Records: None
Fault Records: None
Quantity/Delivery Day:
Light distribution curve:
Mounting dimension(unit: mm)& Wiring Connection
