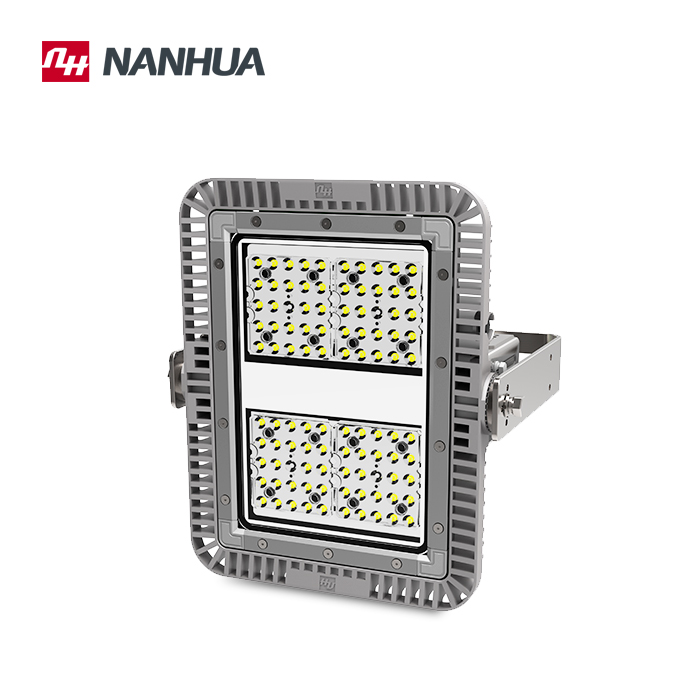

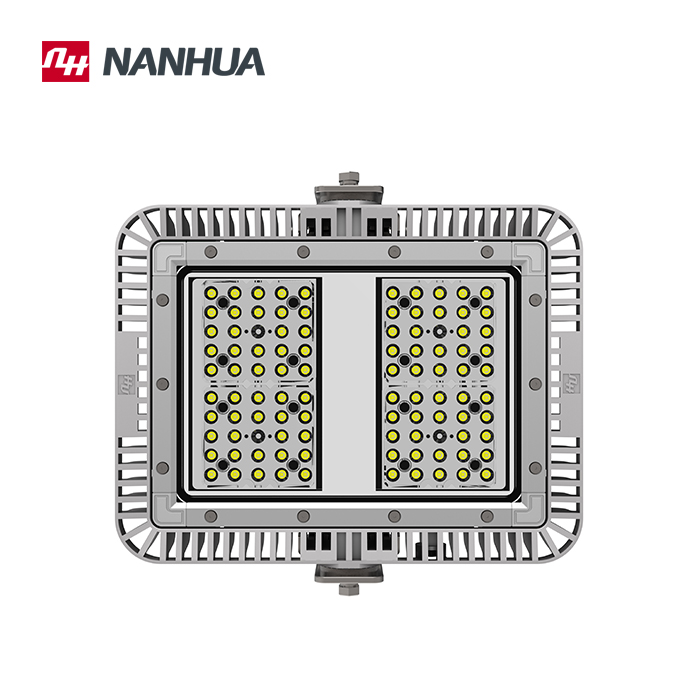

SAA led flood light replace for 1000w Metal halide lampled badminton court light
Application
Designed for the indoor or outdoor lighting for the ports, mines, squares and large buildings
Major functions and features
- Excellent shockproof and corrosion resistance.
- Adjustable mounting bracket
- Perfect for the onshore application with IP65
- Lead line or Terminal wiring type.
- Multiply power consumptions can be chosen.
- Hollowed-out grid design and aluminum alloy body, light-weight and fabulous heat emission.
- State-of-the-art LED chips, high reliability and stability.
- With anti-drop chain to improve the safety-protection
- Multiply lighting angle is selectable
Specifications
Power consumption | LF301A:100W | Operating voltage | AC100V~AC240V | |
LF302A:150W | Power frequency | 50Hz~60Hz | ||
LF303A:200W | ||||
Color temperature | Cool white:5500K-6000K | Life span | ≥50000hrs | |
Warm white:3000K-3500K | Color rendering index | Cool white: Ra=75 | ||
Lighting efficacy | 85-90 lm/w | Warm white: Ra=80 | ||
PF | >0.9 |
|
| |
Weight | LF301A: 9.5Kg | Humidity | 10% ~ 95% (non coagulation) | |
LF302A: 10.5Kg | Operating temperature | -30°C ~ +60°C | ||
LF303A:11.2Kg | ||||
Material | Body:Aluminum alloy | IP rate | IP65 | |
Lens:PC |
|
| ||
Installation details
- Secure the light on a smooth surface which has enough strength with M10 screws
- Fix the anti drop chain at the appropriate place where has enough mechanical strength
- Open the gland cover at the side of the lamp, connect the power lines to terminal L, N, PE or directly connect to L, N, PE power through lead lines.
- Then fasten the scews of back borad and connect power.
Notice
- Temperature rise when light working is normal phenomenon.
- Make sure there are more than 3m between light and lighted objects to avoid fire.
- Do not cover light with any object.
- Replacement and maintenance should be processed by professionals after power off.
