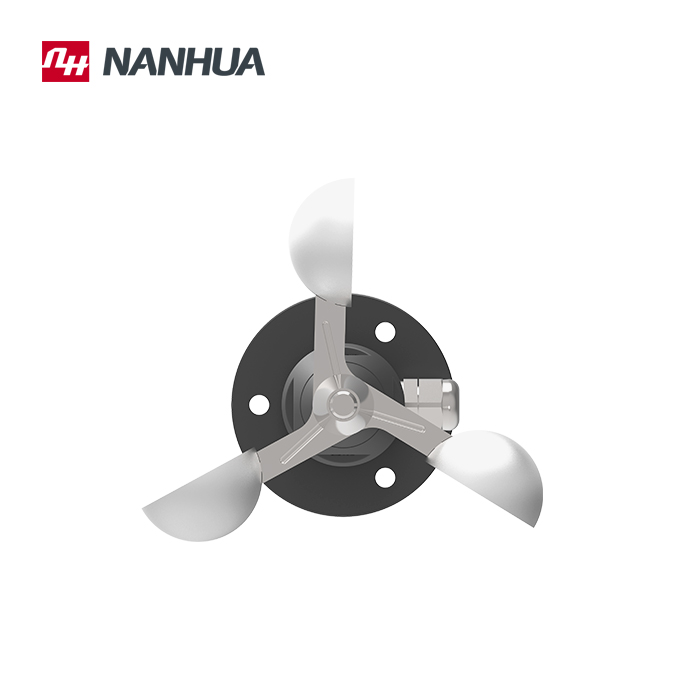

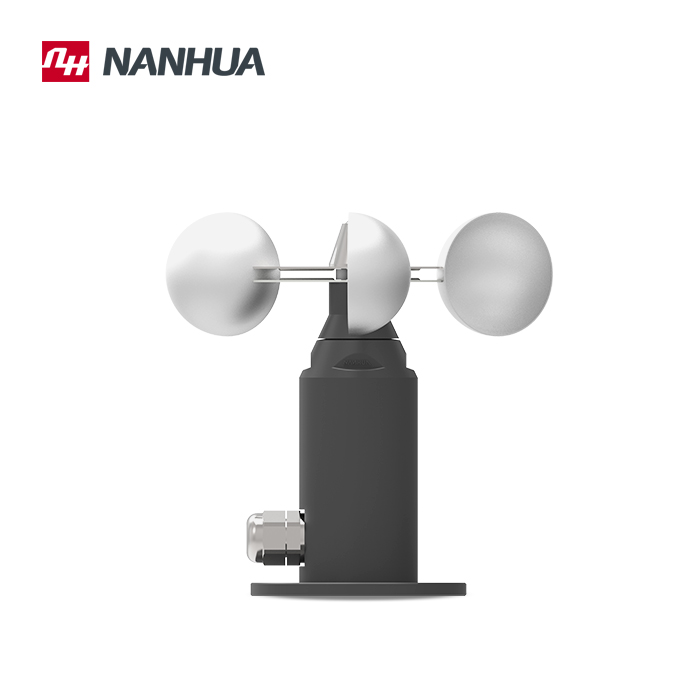

NANHUA FA130 heating wind speed sensor
Application
Special design for large equipments of factory, wind industry, engineering machinery, port machinery, mingin area,etc.
Major functions & features
• Anemometer sensor use magnetic sensor measuring principle.
• Sensor data collected with high precision and reliability.
• Wind speed measurement with wide range, low wind speed start.
• Wind speed sensor use metal enclosure, corrosion resistant and strong anti-wind capability.
• Wind cup stainless steel, can be used in harsh conditions
• Compact sensor design, set wind speed measurement, heating device in one, easy installation and maintenance.
• Sensor fault-tolerant design, sensor will not be damaged even wrong wiring.
• Surge protection design.
• wide supply power voltage range
Specification
Operating voltage | VCC=DC12V-DC30V | Measuring range | 0.5-50m/s |
Threshold | 0.5m/s | Anti-wind level | >70 m/s |
Accuracy | ±0.5 m/s (<5m/s) Measuring vale±3% (≥5 m/s) | Heating type | Automatic |
Heating voltage | DC24V±6V | Heating power | ≤50W |
Surge protection | 4KV/2KA | ESD protection | 15KV |
Ambient temperature | -40°C~+70°C | Relative humidity | 0%~99% |
Body material | Aluminum alloy/ Fluorocarbon | Ingress protection | IP55 |
Wind cup material | Stainless Steel | Bearing material | Stainless Steel 440C |
Weight | FA13XA/FA13XD=0.6KG FA13XB=2.5Kg | ||
Signal and model selection
| Model | Mounting method | Wiring | Signal |
|---|---|---|---|
| FA131A | Φ42~Φ54 pipe | Aviation plug | Asynchronous serial port output,baud rate 300, eight bit data, no parity, one stop bit, signal range 0~VCC. Match Nanhua FA101C or FA130C display panel. |
| FA131B | Self-balanced | Wire out directly | |
| FA131D | G3/4” whorl | ||
| FA133A | Φ42~Φ54 pipe | Aviation plug | 4~20mA three-wire current loop;load resistance≤500Ω |
| FA133B | Self-balanced | Wire out directly | |
| FA133D | G3/4” whorl | ||
| FA135A | Φ42~Φ54 pipe | Aviation plug | NPN pulse signal;0.5m/s=2Hz;50m/s=573Hz V[m/s]=0.08669×f[Hz]+0.32 |
| FA135B | Self-balanced | Wire out directly | |
| FA135D | G3/4” whorl |
Communications cable
- Communication cable RVVP / 5 pin / 0.5mm ² / copper / low-temperature shield cord, the default wiring length L = 0.5 m (customizable); maximum communication distance of 200m.
Product File
- Model: NANHUA FA130 heating wind speed sensor
- Applications: Plant, electric power, harbor, factories and mines, wind generator etc large mechanical equipments
- Standard:QX-T 23-2004 rotating anemometry sensor
- Certificate: SHBST2012031702YER-1 CE EMC REPORTImprove Records: None
- CMC certified
- CE certified
- Wind Tunnel Test Report
- Utility model patent certificate
- Fault Records: None
- Quantity/Delivery Day:5sets/10Days
