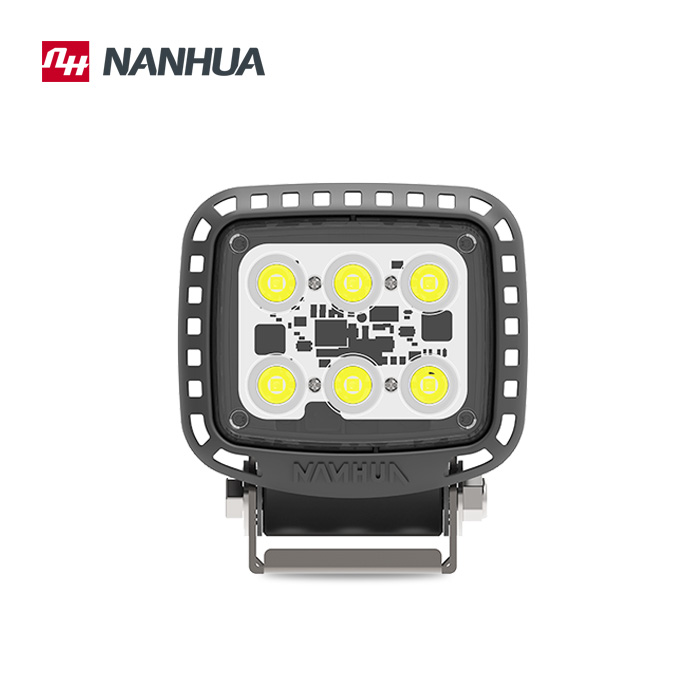

Click on the image to view the original image
- Input Voltage(V):
- 18~32
- CRI (Ra>):
- 80
- Beam Angle(°):
- 40
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP68
- Certification:
- CE, EMC, LVD
- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- LW230A
- Light Source:
- LED
- Lamp Luminous Flux(lm):
- 4800
- Working Temperature(℃):
- -40 - +85
- Item Type:
- Flood Lights
- Color Temperature(CCT):
- Cool White
- LED Light Source:
- Cree
- Lamp Power(W):
- 60
- Lamp Luminous Efficiency(lm/w):
- 100
- Supply Ability:
- 500 Piece/Pieces per Month
- Packaging Details
- standard package
- Port
- Shanghai
- Lead Time:
- 7 working days
Application
LED high bay light is applied for the lighting system of various lifting machinery(tyred gantry crane, crawler crane, travelling crane, etc), port machinery (gantry crane, bridge crane, reachstaker, etc), metallurge, chemical industries, mine and marine vessel, etc.
Major functions and features
• Based on engineering vehicle lighting technology, high power LED light source, it features high luminance, low power consumption and long lifetime.
• Aluminum body features excellent heat emission, anti oxidation ability for long term stable operation.
• Sealed structure, excellent waterproof and vibration resistance capacity
• 60°~140° mounting angle and built-in Deutsch socket to make the cable connection convenient
Specification
Operating voltage | DC18V-DC32V | LED lifetime | ≥50,0 00hrs | ||
Power consumption | LW230A(Low beam)/LW230B(High beam): 60W | CCT | 5500K-6000K(Cold White) <2700K(Warm White) | ||
LW231A(Low beam)/LW231B(High beam): 48W | |||||
LW232A(Low beam)/LW232B(High beam): 30W | |||||
LW233A(Low beam)/LW233B(High beam): 18W | |||||
Operating Temperature | -40 ~ +85 | IP Class | IP68 | ||
Humidity | 10% ~ 95% (non coagulation) | Weight | 2.5kg | ||
Material | Lens:PC Base:Aluminum | ||||
Installation and operation
• To check the power supply voltage is same as the nominal voltage
•Fix the lamps to the mounting surface which has enough mechnical strengthen with M10 screws. The mounting angle of the bracket is adjustable within 60°~140°
• With built-in Deutsch socket, 1 is positive and 2 is negative
• The lamp is lit once powered on.
Note
• Do not reversely connect the power supply
• Please external connect the fuse of rated current 5A to protect the circuit
• Do not use it until the bracket and lamps are screwed tightly
• It is normal that the lamp has the temperature rise.
Nanhua (Shanghai) Electronics located in Shanghai, China was founded in 1990, with its registered capital RMB 5,000,000, a factory of 5000 square meters. Up to September 2012, 239 staff , there are 38 research personnel and covers 16.6% of the staff. Nanhua always keep the strict attitude on researching and controlling quality. Nanhua got the ISO9001 and CSQA quality authentication.
In 2011, annual sales is RMB 60.1 Million, we introduced the external audit to supervise our internal finance, and products expanded to Industrial Light. LED lighting as one of the pronoun for energy saving and environment protection and got the approval by customers. At the same year, the annual sales for Industrial Light is up to 13.3 Million. We have cooperated with the global famous wind power manufactures, and LED series lights become the preferred product for wind tunnel lighting.
We researched the LED high-power flood light in 2012,and promote steady performance LF20 Series flood light. Products used in ports, docks , mines, squares, andlarge workshops. Contrast with the same products, it has the advantage on quality and energy saving.
In 2014,NANHUA with a factory of 6000 square meters, 283 staffs till JAN of 2014 including 37 in R&D center, which is ISO9001 quality authentication certified.
