Application

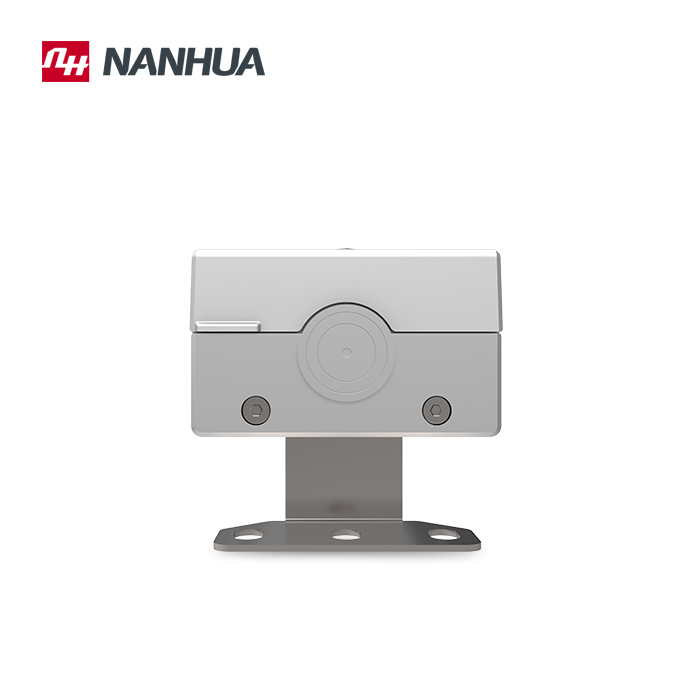

Nanhua LED walkway light is specially designed as the lighting system for the cabin room and walkway of the large-scale port cranes (RTG, RMG, QC, STS), interior luminanaires of wind turbines (nacelle, tower and hub) and ceiling and passages of marine vessels.
Major functions and features
•Soft light beam
Employ 5mm tempered glass diffuser to protect from being ageing and fading. Frosted finishing process to prevent the glaring.
•Extraordinarily long lifetime and superb energy reduction
The lifetime of LED light source up to 50,000hrs. Save at least 50% energy comparing the fluorescent lamp. With the long term operational stability and free of maintenance.
• Compact structure features small size and light weight. Adjustable mounting bracket makes it convenient for the field installation
• Air valve design to protect the electronics components from being overheated to guarantee the long lifetime
Specifications
Operating voltage | AC100V-AC240V/DC24V-DC48V/AC36V(can be customized) | Frequency | 50Hz ~ 60Hz |
Power consumption | 12W | Lifetime | ≥50,000hrs |
CCT | 5500K-6000K | CRI | Ra>72 |
LED efficacy | 100lm/W | Beam angle | >120o |
| |||
Working temperature | -40~ +50 | Humidity | 10% - 95% (no coagulation) |
IP Class | IP65 | Storage temperature | -40 ~ +70 |
Material | Lens: tempered glass Base: aluminum | Weight | 2.5KG |
Installation
•Please ensure the power voltage is same as the lamp voltage
•Please connect the power input cable through G3/4 liquid-tight gland (other can be customized) on the lamp
•Fix it on the mounting surface with 2 nos or 4 nos M8 screws. The mounting surface shouldhave enough mechanical strength and smoothness.
Note:
•It is normal that the lamp has temperature rise
•Do not open any part to avoid any dange when it works.
•As its sealed structure, do not disassemble the lamp without the company of professional people. Otherwise, the warranty is invaild.
Wiring Instruction
1. Open the 4 buckles 2. Pull up the lens
3. Connect the power cable to the right terminal 4. Close the cover and clap the buckles tightly
through the cable gland
5, Buckle installation (close/open) diagram.
