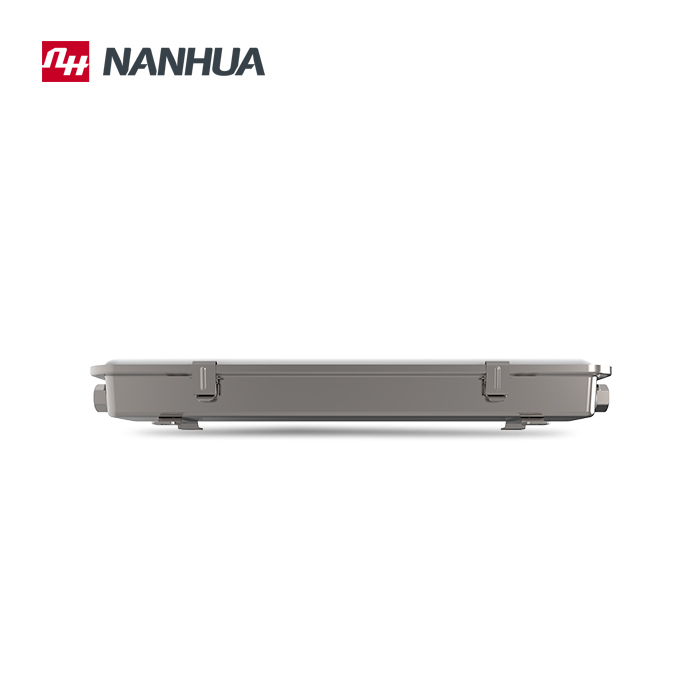

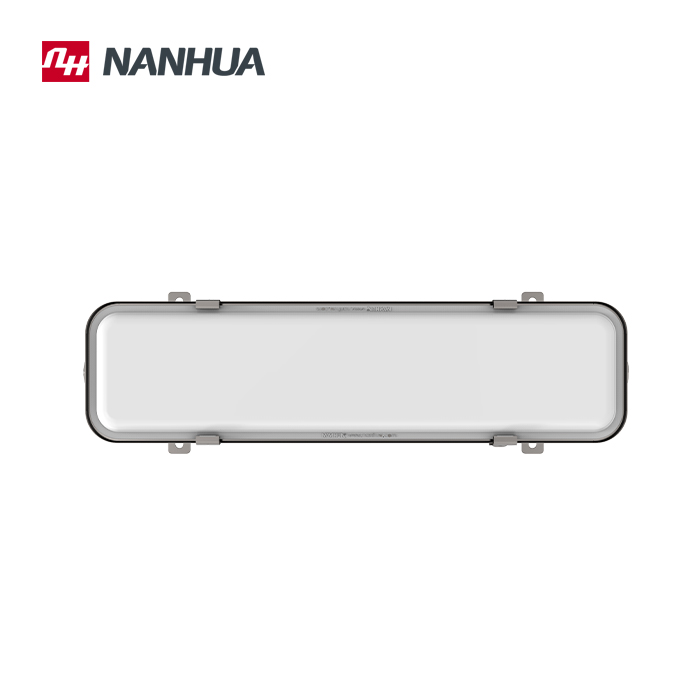

At least 90 minutes LED Emergency lights
Application
Design for wind generator (cabin, vessel and hub) inside lighting, and additional lighting for severe enviorment(waterproof, corrosion resistant, shockproof etc).
Main functions and features
- Soft light beam
PC grain housing makes the light beam softly, to protect eyes.
- External long life, energy saving and environmental friendly
The life of LED can reach more than 100,000hrs, and the light can save 50% energy than common bulb, maintenance free.
- Integrated design, convenient for mount
Lamp body and junction box are combined together on a base, convenient for mount and maintenance.
- Selectable plug, terminals and cable gland (see model selection)
Equipped with standard 16A power plug, other type of plug can be selected as request
No. of terminals and cable gland can be customized based on request.
- Emergency function(suitable for LY410 series)
In case of power failure, emergency duration is more than 90mins
Specifications
Operating voltage | AC100V-240V | Frequency | 50Hz ~ 60Hz | |
Power consumption | General: 14W, Emergency: 19W | LED life | ≥50,000hrs | |
Color temperature | 6000K-7000K | color rendering index | Ra72 | |
LED luminance | 100lm/W | Lighting angle | >200° | |
Working temperature | General:-40°C ~ +50°C | Relative humidity | 10% - 95% (no coagulation) | |
Emergency normal temperature:-10°C ~ +40°C | IP Protection | IP44(with plug)(IP65plug available)IP65(without plug) | ||
Emergency low temperature:-30°C ~ +40°C | Material | Housing: PC Base: cold rolled steel with coating | ||
Ambient temperature | -40°C ~ +70°C |
|
| |
Model selection
Model | LY410 | LW410 | LY410A | LW410A | LY410B | LW410B |
Plug function | available | available |
|
|
|
|
Plug model | 10A plug | 10A plug |
|
|
|
|
Emergency function | available |
| available |
| available |
|
Emergency duration | 90 min |
| 90 min |
| 90 min |
|
Terminals | available | available | available | available | non | non |
Terminals no | 16 | 16 | 6 | 6 | 1 | 1 |
Cable gland no. | 4 | 4 | 4 | 4 | 2 | 2 |
Weight | 4.8Kg | 4.6kg | 4.8kg | 4.6kg | 3.6kg | 4.3kg |
