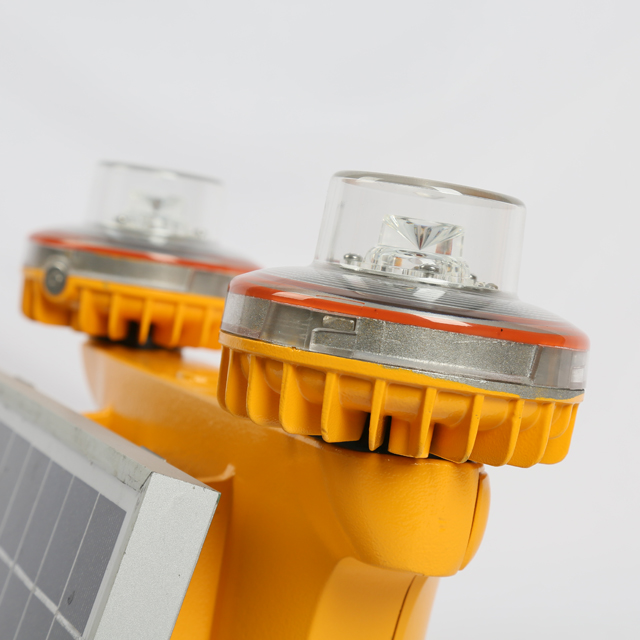

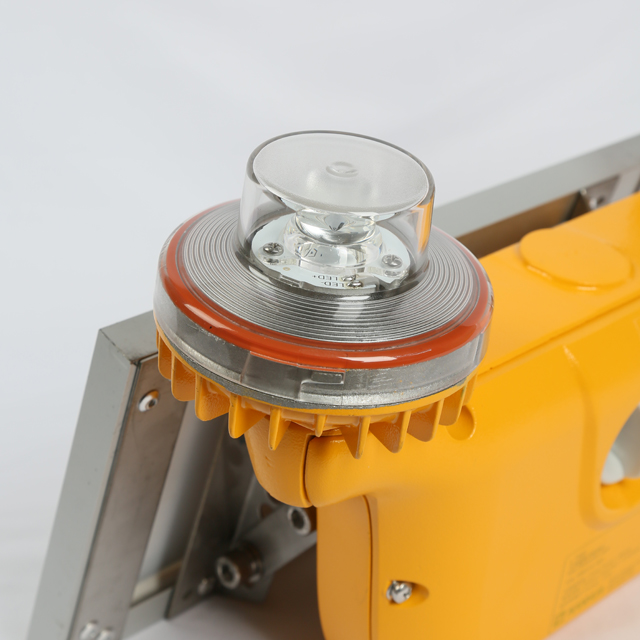

NANHUA LT602U solar power emergency light
Specifications-- NANHUA LT602U solar power emergency light
| Description | Parameter |
|---|---|
| Reference Standard | ICAO(Annex 14) Type B low intensity aviation light and FAA-L810 |
| Light source | LED |
| Vertical degree | ≥10° |
| Light color | Red(others can be customized) |
| Horizontal degree | 360° |
| Intensity | ≥32.5cd |
| Flashing rate | 30times/min(Others can be customized) |
| LED lifetime | ≥100,000h |
| On/off level | 500Lux |
| Battery | 3.6V/8AH NiMH |
| Solar panel | 6W/5V |
| Autonomy | >7 days (at 25°C, if the ambient temperature is lower than 0°C or above 40°C, it will affect the battery discharge) |
| Operating temperature | -40°C~+55°C |
| IP Code | IP65 |
| Humidity | 10%~95% |
| Weight | 3.3Kg |
| Material | Base:Aluminium alloy Housing:PC |
Functions & Features-- NANHUA LT602U solar power emergency light
- Basing on LED and solar charging technology, extremely reliable and low maintenance cost..
- Standby light will switch on automatically in case lead light fails.
- Shock-proof and corrosion resistant
- Using normal NiMH battery, easy for replacement
- Lamp housing-Polycarbonate, with bird spike, with good anti-impact strength, thermal stability, high transmittance.
- Combustibility rating:UL94-V0
Mounting dimension(unit: mm)
Installation and Operation-- NANHUA LT602U solar power emergency light
- Mount the solar light in the most suitable place such as under direct sunlight, to ensure its continuous operation.
- Installation:G3/4"pipe mounting.
- For first usage, open the battery switch at the bottom. If store for a long time, close the switch.
- The angle of solar panel is adjustable from 15°~60°. End user can obtain suitable angle by adjusting the installation holes.
- The light is with optically control function. When ambient illumination is below 500lux, it starts to work
Product File-- NANHUA LT602U solar power emergency light
- Model: NANHUA LT602U solar power emergency light
- On Stream Date: MAY, 2013
- Applications: Applying to masts & tower obstacles(Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.
- Standard: ICAO(Annex 14) Type B low intensity aviation light and FAA-L810
- Applying to masts & tower obstacles(Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.
