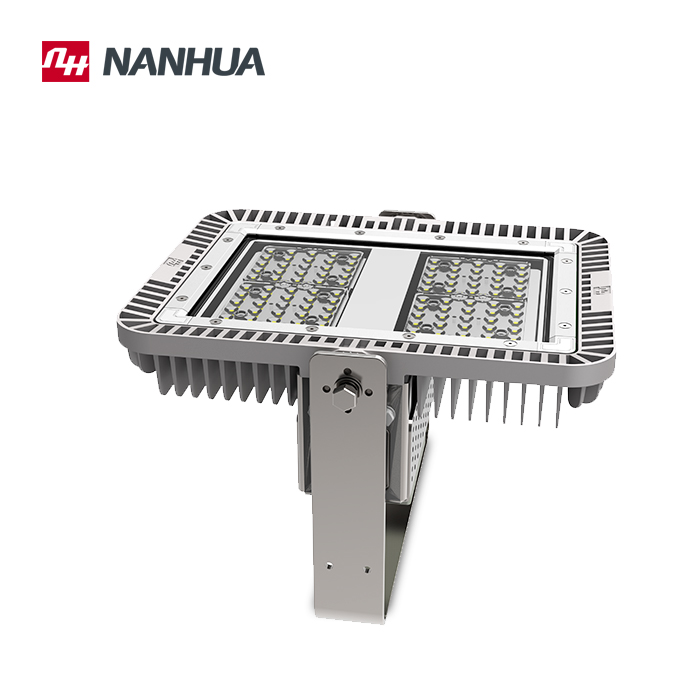

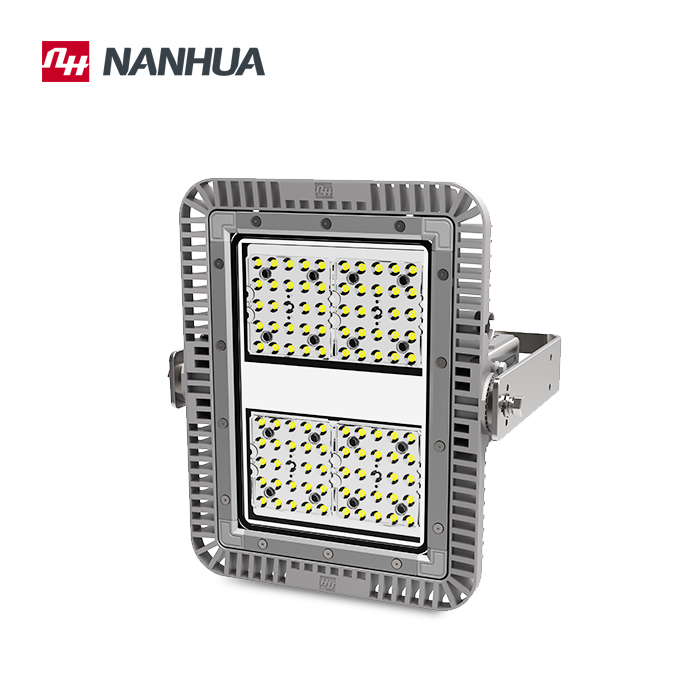

saa certified led lighting
Application
Designed for the lighting system of high masts at container terminals, parks, squares & plaza, etc.
Major functions and features
• Excellent shockproof and corrosion resistance.
• Adjustable mounting bracket
• Perfect for the outdoor application with IP 65
• Lead line or Terminal wiring type.
• Multiply power consumptions (100W, 150W & 200W) can be chosen.
• Hollowed-out grid design and aluminum alloy body, light-weight and fabulous heat emission.
• State-of-the-art LED chips, high reliability and stability.
• With safety chain to improve the safety-protection
• 140° beam angle
Specifications
Power consumption | LF301E:100W | Operating voltage | AC100V~AC240V | |
LF302E:150W | ||||
LF303E:200W | Frequency | 50Hz~60Hz | ||
Color temperature | Cool white:5500K-6000K | Life span | ≥50000Hours | |
Warm white:3000K-3500K | Color rendering index | Cool white:Ra=75 | ||
Lighting efficacy | 85-90 lm/w | Warm white:Ra=80 | ||
PF | >0.9 | |||
Weight | LF301E: 9Kg | Humidity | 10% ~ 95% (non coagulation) | |
LF302E: 10Kg | ||||
LF303E: 11Kg | Operating temperature | -30C ~ +60C | ||
Material | Body:Aluminum alloy | IP Code | IP65 | |
Lens:PC | ||||
Installation
• Fix it to the mounting surface where has enough mechanical strength by using M10 screws
• Fix the safety chain at the appropriate place where has enough mechanical strengthen
• Connect the lead wire to L.N. PE of the power supply
• Power it on after finishing the connection
Notice
• Temperature rise when light working is normal phenomenon.
• Make sure there are more than 3m between light and lighted objects to avoid fire.
• Do not cover light with any object.
• Replacement and maintenance should be processed by professionals after power off.
