Application

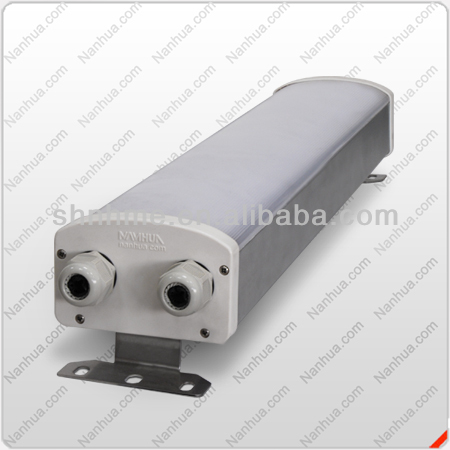

Designed for wind turbine (tower, nacelle) inside lighting and other harsh environment
(For those need waterproof, corrosion resistant, shockproof applications)
Main functions and features
• Soft light beam
PC grain housing makes the light beam softly, to protect eyes.
• External long life, energy saving and environmental friendly
The life of LED can reach more than 50,000hrs, and the light can save 50% energy than common ••Emergency function.
In case of power failure, emergency duration is more than 60mins
Specifications
Operating voltage | AC100V-AC300V | Frequency | 50Hz ~ 60Hz |
Power consumption | 19W | LED life | ≥50,000 hrs |
Color temperature | 5500K-6000K | color rendering index | Ra>72 |
LED luminance | 100lm/W | Lighting angle | >200o |
| |||
Working temperature | Emergency low temperature:-10°C ~ +40°C | Relative humidity | 10% - 95% (no coagulation) |
IP Protection | IP54 | ||
storage temperature | -40°C ~ +70°C | Material | Housing: PC Base: aluminium alloy |
weight | 4.4 KG | ||
Operation and installation
• Check whether the power supply complies with rated voltage of the light.
• Secure the light on a smooth surface which has enough strength using M8 screws.
• Equipped with M32 cable gland (Can be customized per request), and connect the power cable and output cable through the cable gland.
• Power cable wiring diagram see left side
•After connecting the power line insert the attached cap into the icon SW SW tank. Emergency power start working at this time, and will automatically switch to the normal state when power on.(Do not insert the sub hat into the SW SW groove if no power connected for a long time to advoid the battery discharge deeply).
• Indicator light status: 1.Power starts Red,Blue light interactively flashes every 3sec
2.No battery Red,Blue light goes out.
3.Battery abnormality Red, blue light consective interactive-flashing
4.Charge Red light on
5.Full Blue light on
Notice
•Temperature rise when light working is normal phenomenon.
•Please do not open any components inside by yourself.
•Ni-MH battery inside the lamp is a consumable, the cycle life(IEC61951-2/2011/7.5.1.2)is 500 times. It is recommended to conduct charge-discharge one time every 3 months once a year.
•This product is a sealed structure, please do not be tampered with anyone other than registered installer.
