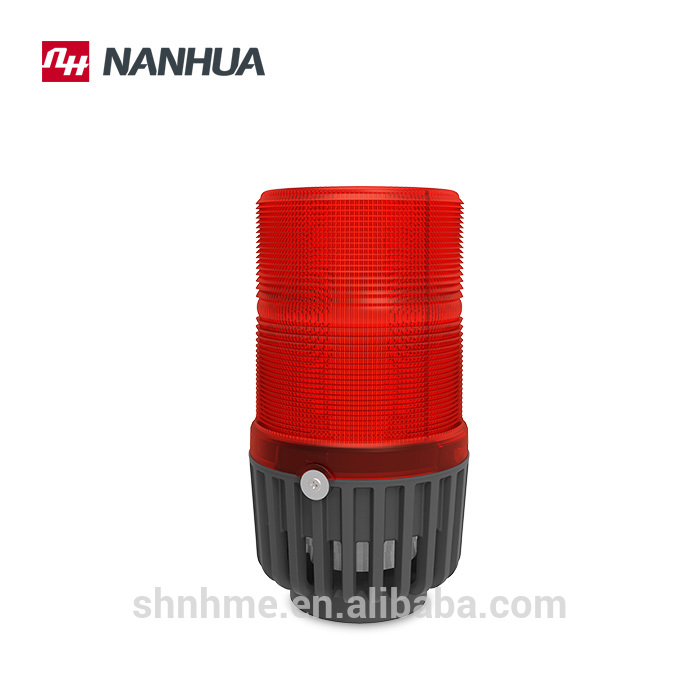

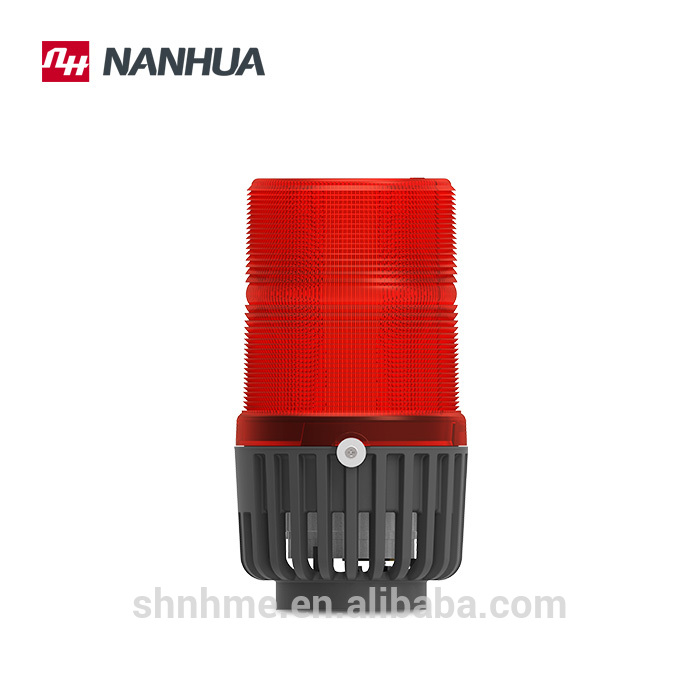

Giving eye-catching audio visual alarms for mechanical engineering(overhead cranes, crawler crane and RTG etc), port machnery(gantry cranes and bridge cranes etc)
Specifications
| Description | Parameter |
|---|---|
| Voltage | AC24V~AC240V/AC380V/DC12V/DC24V/DC48V(optical) |
| Frequency | 50Hz~60Hz |
| Tone | A,B,D,E,Y |
| Power | 10W |
| Color | Red,Yellow,Green(optical) |
| Sound level | 108dB~110dB |
| Alarm | Audio-visual alarm |
| Humidity | 10% ~ 95% (no condensing) |
| IP protection | IP65 |
| Material | Body:PA6+GF30%, Housing:PC |
| Weight | 0.5kg |
Functions & Features
- Compact size and light weight.
- High brightness, alarm sound and selectable tones.
- Continuous operation, reliability and stability.
- Several tones, and wide applications.
- PC housing, Fresnel Type design, high transmittance, anti-UV, anti-aging.
- Both xenon light tube and Led light tube are available.
- Several mounting styles for selections, such as screws fixing, magnetic fixing or flange type.
Model Selection
| Model | Light source | Installation | Others |
|---|---|---|---|
| AL80-8U | Xenon | Common type | Tone is optional |
| AL80-9U | LED | Common type | Tone is optional |
| AL80-8F | Xenon | With Flange | Tone is optional |
| AL80-9F | LED | With Flange | Tone is optional |
| AL80-8C | Xenon | With Magnetic | Tone is optional |
| AL80-9C | LED | With Magnetic | Tone is optional |
Mounting Dimension(Unit:mm)
Wiring Diagram
Installation and Operation
- Check whether the power supply complies with rated voltage of the siren.
- Fix it onto the surface with 3pcs M6 bolts for the common mounting. Fix it onto the surface which has enough strength with 3pcs M6 bolts and nuts for the flange mounting. Directly fix it onto the surface of the magnetic metal which has enough magnetic force to avoid the coming off because of fierce shock or strong wind for magnetic mounting.
- For Giving emergency sound and alert light synchronously, please see the figure 1, connect the power cable to the corresponding terminals, power on and then the siren start to work.
- For Giving emergency sound and alert light separately, please see the figure 2, connect the power cable and control cable to the corresponding terminals, power on and then the siren start to work.
Notice
- If install this product outdoor, please do not water towards the speaker, he speaker need to towards ground.
- Advise not to use magnetic mounting under the fiercely shocking situation.
- Please do not hesitate to contact us if any problem.
Product File
- Model: AL80
- Applications: Giving eye-catching audio visual alarms for mechanical engineering(overhead cranes, crawler crane and RTG etc), port machnery(gantry cranes and bridge cranes etc) .
- Standard:
- Certificate:
- CE certified
- Improve Records:
- Fault Records:
- Quantity/Delivery Day:
