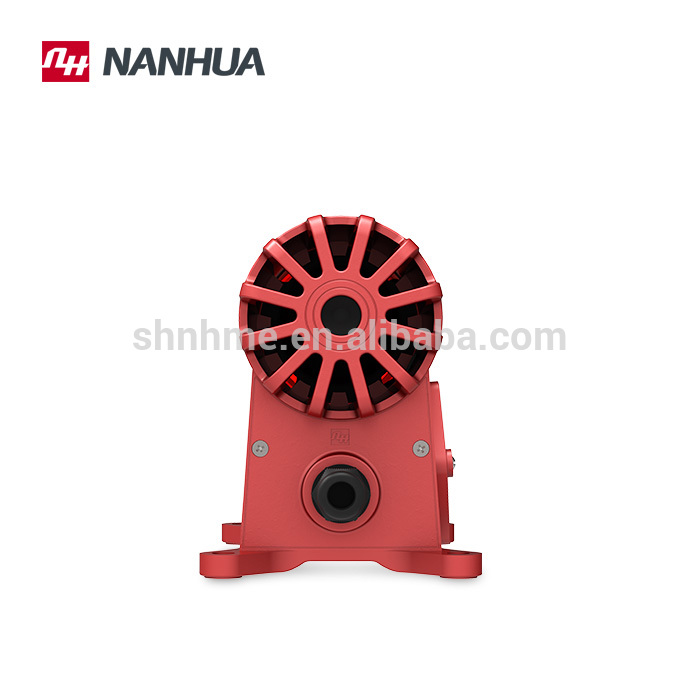

Use sophisticated acoustic-optics control technology, we developed BC-8 series product, to code with the special requirements of overhead traveling cranes, gantry cranes and hoisting machines used in the field of harbor, metallurgy and coal mines etc.
The inner electric core employs integrated circuit, providing strong anti-interference capability and stability etc. Its enclosure employs die casting aluminum, which houses super bright LED cluster and the electronics, providing environmental protection, shockproof and external long life. The product also features good aethetics, light weight and ease of mount. This combination of siren and flashing light modes, clearly differentiates this signal from the common"flashing only" products
It is ideal for drawing attention to special activities or operations such as command centers at emergency sites or special operation. Customized tones(like music or speech)may also be implemented based on customer"s special requirement.
| Description | Parameter |
|---|---|
| Application | Overhead traveling cranes, gantry cranes and hoisting machines used in the field of harbor, metallurgy and coal mines etc. |
| Supply voltage | AC24V / AC36V / AC48V / AC110V / AC240V / AC380V / DC24V / DC48V(optional) |
| Frequency | 50Hz-60Hz |
| IP Protection | IP65 |
| Working current | <1A |
| Ambient temperature | -30°C~+70°C |
| Sound frequency | 800Hz (D Tone) |
| Siren wattage | 5W / 8Ω / 106dB |
| Tone | A / B / E / D / Y / L / F / Speech (optional) |
| Color | Red Yellow Green (optional) |
| Weight | 2.7Kg |
Functions & Features
- Enclosure employs die casting aluminum, providing good aesthetics, lightweight, corrosion resistance and
environmental protection. - Use super bright LEDs as lamp bulb, and the life is more than 100,000 hrs
- Lamp housing employs PC, providing good intensity, thermal stability and good finishing surface.
- Specially designed intergrated core, providing strong electromagnetic anti-interference capability.
- Various tones and adjustable volume for selection.
Specifications
Model | Features | ||
|---|---|---|---|
| Tone | Volume Adjustable | Others | |
| BC-8 | D | ||
| BC-8X | D | Adjustable | |
| BC-8Q | A / B | Adjustable | |
| BC-8U | A / B | ||
| BC-8S | D / B | ||
| BC-8Y | D / Y | ||
| BC-8H | D / A | ||
| BC-8K | E / E | ||
| BC-8C | B / E | Adjustable | |
| BC-8M | D | Adjustable | With switch |
| BC-8T | D | Light and emergency sound being controlled respectively | |
| BC-8P | D | Strobe |
Product File
- Model: BC-8
- On Stream Date: Mar.1991
- Applications: Wharf, Plant, Large Motorcycle, etc.
- Standard: GB 8108-1999 ,GB 3785-1983
- Certificate: CE
- Patent: 200930094515.2
- Improve Records: Jun. 2008, new molds made, outside become more smooth;Jun.2009, FC paint used, anti-causticity increased
- Fault Records: Paint Falls
- Quantity/Delivery Day: 50 Sets / 5 Days
