Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- BC-110
- Usage:
- Other
Supply Ability
- Supply Ability:
- 3000 Piece/Pieces per Month N/A
Packaging & Delivery
- Packaging Details
- standard cartons.
- Port
- shanghai
- Lead Time:
- Normally 10days,depend on order quantity

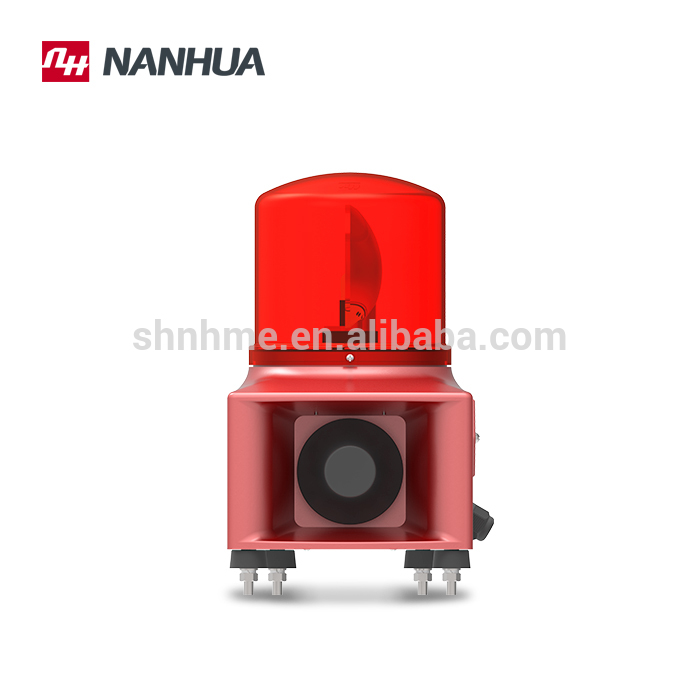

BC-110 Outdoor siren and revolving light is specially designed for overhead traveling crane, gantry crane, bridge cranes used in the field of harbor, metallurgy, large plant and coalmines. Its enclosure employs die casting aluminum, which houses integrated circuit, high power speaker and super bright bulb, providing environmental protection, shockproof, ease of mount and operation and external long life . Practical application shows that it plays an important role in guaranteeing safety of human life and equipment
Customized tone and speech may be implemented based on customer"s special requirement
Specifications
| Description | Parameter |
|---|---|
| Application | For overhead traveling crane, gantry crane, bridge cranes used in the field of harbor, metallurgy, large plant and coalmines |
| Supply voltage | AC24V~AC240V / AC380V DC24V (optional) |
| Frequency | 50Hz~60Hz |
| Working current | <1.5A |
| IP Protection | IP56 |
| Siren wattage | 20W~50W |
| Siren tone | A / B / E / D / F or F tone or music |
| Ambient temperature | -30°C~+70°C |
| Base color | Red Yellow Green(optional) |
| Weight | ≤6.8kg |
Functions & Features
- Die casting aluminum enclosure, providing environmental protection, good appearance and corrosion resistance.
- Specially designed integrated core, providing super strong anti-interference capability.
- Various tones for selection and a full range adjustable sound output, for wide application.
- Employ transparent PC housing, providing UV resistance, anti-aging, high transmittance and impact resistance.
- Vacuum Reflector well improves light diffusion.
- Rotate steadily and noiselessly.
- Gear transmission mode, providing high efficient transmission, even lighting, reliable work and external long life.
Model Selection
| Model | Tone |
|---|---|
| BC-110 | A / B / E / D (optional) |
| BC-110F | Music or speech |
| BC-110A | Two adjustable tones (A or B tone) |
Product File
- Model: BC-110
- On Stream Date:
- Applications: Wharf, Plant, Large Motorcycle
- Standard: GB 8108-1999 ,GB 3785-1983
- Certificate:
- Patent:
- Improve Records: Dec. 2009, film of the loud-speacker updated
- Fault Records: Loud-speacker failure
- Quantity/Delivery Day: 20 Sets / 6 Days
