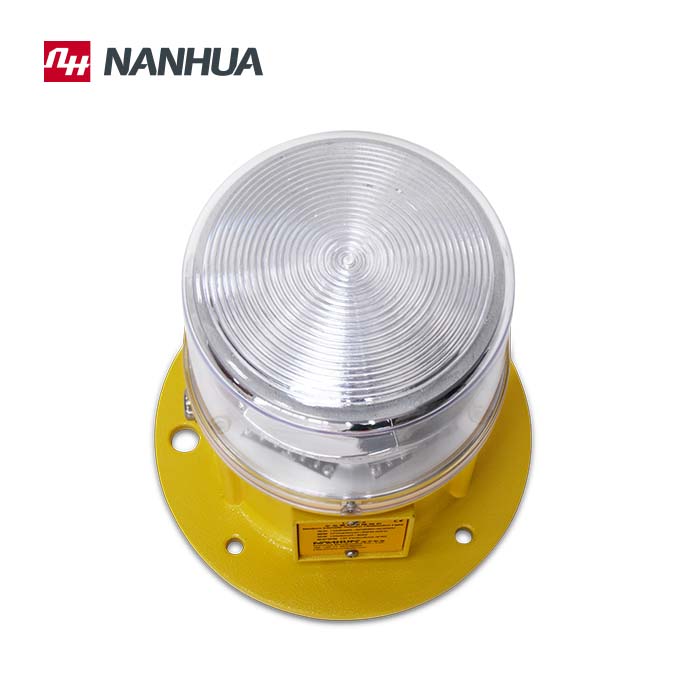

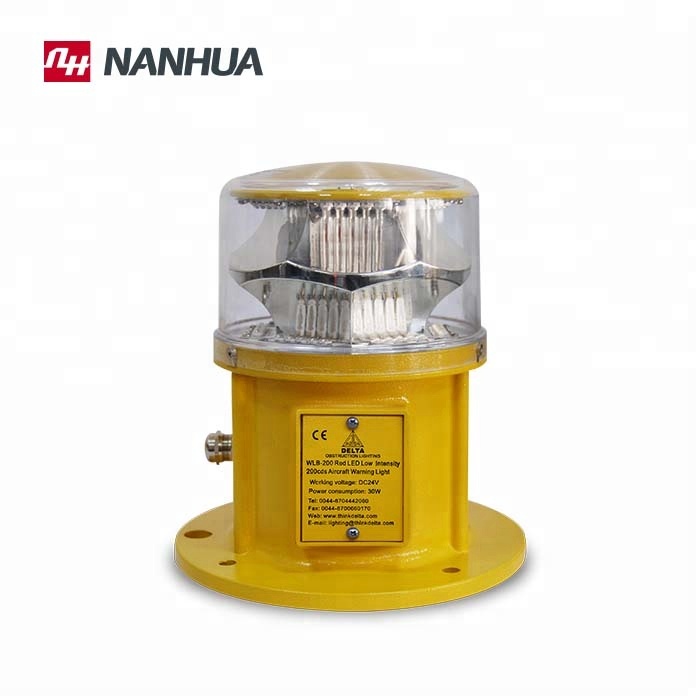

Wind turbine obstruction light
Applications
Obstruction light for a wide variety of cranes used in Harbors, Metallurgies, Towers (Telecom, GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light.
Main functions and features.
- Based on LED technology and meets optics standard
- Built in LED protective circuit, stability and cost savings
- Resistant to Shock and Vibrations
- Corrosion Resistant Lamp& Housing
- Combustibility rating: UL94-V0
- When and if the bottom LEDs fails, it will switch on the top LED automatically, and give an alarm
Specifications
Standard | Compliant to the ICAO (Aerodromes Annex 14) and FAA-L864 | Vertical degree | 3°Min | ||
Light source | LED | Horizontal degree | 360° | ||
LED color | Aviation red | Flashing rate | 30 times/min (default), other flashing rate available(20~60 times/min) | ||
Operating voltage | AC200V-240V/DC48V (can be customized) | Flashing duration | 150±20ms | ||
Power consumption | 30W(Steady) | LED life | ≥100,000h | ||
Led power consumption | 30W | On/off level | 50Lux | ||
Intensity | 2000±25%cd | Working type | Bottom light working,top light is spare | ||
Operating temperature | -40C ~ +70C | IP Protection | IP65 | ||
Relative humidity | 10%~ 95%(no condensing) | Weight | 5.5kg | ||
Material | Base:Die casting aluminum, housing: PC Reflector: ABS with vacuum coating | ||||
Installation and operation
- Install the light on a smooth surface, with enough mechanical strength; if there is no installation surface, we can customize the mounting bracket as requested.
- When install the light, do not install the photocell towards the light beam around, and also ensure the photocell is not covered by something.
- Verify whether the supply voltage complied with the rated voltage of the light.
- Open the nameplate cover, connect power cable and earth wire to corresponding terminals and then remount the cover.
- Power on after verification of connection, the service light will light up.
Notice
- Temperature rise inside the control box is normal phenomenon.
- Should not be tampered with by anyone other than registered installer.
- This product is a sealed structure,please do not open any components inside by yourself.
Product File
- Model: LM212 Medium Intensity Dual Aviation Obstruction Light
- Applications: Applied to iron towers(electicity,telecom, microwave, etc), chimneys(heat-engine plant, coking plant,chemical plant), high buildings, large-scale bridge.large-scale port machinery,large engineer machinery and wind turbines which need the warning for aircraft machines.
- Standard: ICAO Type B medium intensity FAA L-864 CAAC L-864
- Certificate:
- Improve Records: None
- Fault Records: None
- Quantity/Delivery Day: 5pcs/7Days
On Exhibition
Show Room
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
Certificates
