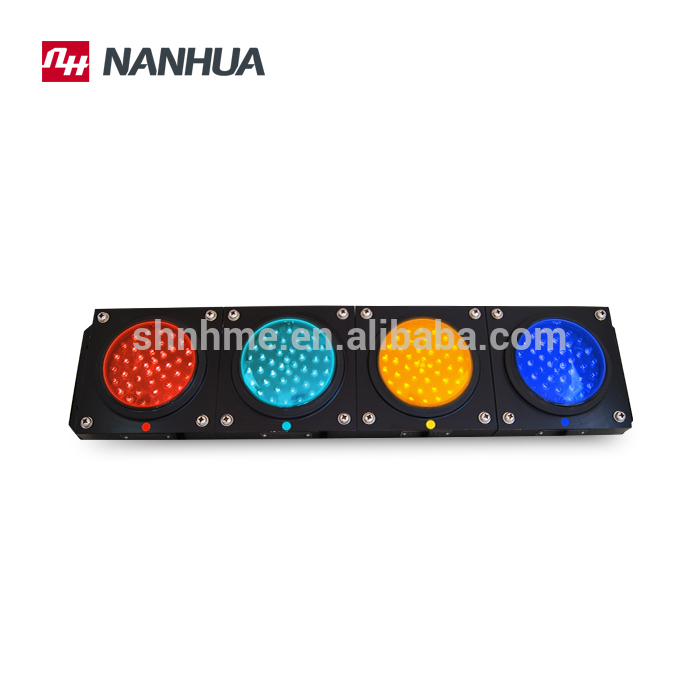

NANHUA ABC-16 LED Fault Indicator/warning LED light
The product is specially designed for sling on various cranes. It employs die casting aluminium enclosure, which houses super bright LED cluster and the electronics, providing environmental protection, shockproof, high luminance and external long life. When triggered, it will give an alert alarm and check the oper-ation status of the sling when a problem occurs. It also can be used in electric power stations, railways and metallurgies ect. Customized colors and number of lamps can be implemented based on customer"s special requirement
| Description | Parameter |
|---|---|
| Supply voltage | AC110V~AC240V DC24V~DC60V (optional) |
| Frequency | 50Hz~60Hz |
| IP Protection | IP65 |
| Ambient temperature | -30°C~+70°C |
| LED lifetime | >100,000hrs |
| Relative humidity | 10%~95%(no coagulation) |
| Cable length | 8m |
| Luminous surface diameter of each LED | Φ95 |
| Visible distance | >300m |
| LED Color | RedYellowGreenBlueWhite(optional) |
Functions & Features
- Lamp body is made of die casting aluminum, providing environmental protection, corrosion resistance and lightweight .
- Use super bright LEDs as lamp bulb and its life is more than 100,000hrs.
- Flexible combination mode for wide application
Wiring diagram
Product File
- Model: NANHUA ABC-16 LED Fault Indicator/warning LED light
- On Stream Date:
- Applications: Crane lifts
- Standard: GB 14887-2003,GB 8417-2003-T
- Certificate: CE certification
- Patent:
- Improve Records: Dec. 2009, circuit updated and isolation increased.
- Fault Records:
- Quantity/Delivery Day: 20 Sets / 6 days.
Our Company
On Exhibition
Show Room
ICAO SABS FAA CAAC Test Report Patent CE UL IECEx ATEx others
Nanhua customer service aims to provide our customers with accessible, efficient and satisfactory technical support and service.
- Quality enhancement: reducing the service requirements after sales.
- Efficient service: Guaranteeing specialized, reliable, prompt and efficient customer service.
- Consulting service: Responding to inquiries about products and services, handling repairs, and resolving complaints about customer service.
- Admissibility of complaints: Solving problems or proposing solutions within 24 hours.
After-sale policy
Dear users, thank you for selecting products from Shanghai Nanhua Electronics Company.
- All Nanhua product users will enjoy services of free repair within one year after the purchase date and lifetime maintenance after sales.
Customization Service
We believe that the more accessible our products are, the less they will cost our customers. For instance, our customers can employ available supply voltage, configure factory tones, employ standard socket interface, and so on.
We are providing the following services:
- Default tone setup and specified tone writing (standard safety tone, music, voice)
- Voltage customization (DC12V,DC24V,AC110V,AC220V,AC380V)
- Color customization (lamp, lampshade and housing)
- Flash warning light frequency setup
- Special voltage customization(DC12V~DC220V,AC24V~AC3000V)
- Volume adjustment
- Control mode modification
- Wattage adjustment
- IP protection enhancement
- Performance enhancement in high and low temperature
- Anti-electromagnetic interference enhancement
- Operating distance extension
- Accessories customization
- Functional circuit addition (Photoelectricity control, redundancy switch)
In order to solve the problems in practical application, we compile the feedback according to hotspots from users.
Principles of installation & operation (Must Read)
- Please strictly comply with Product Instruction Booklet issued by Nanhua during the installation process.
- Please also strictly comply with Product Instruction Booklet issued by Nanhua in selection of wattage and input.
- Please pay more attention to the mounting environment. There are constant malfunctions due to negligence and random installation.
Q. What is covered by your warranty?
Answer:The warranty given as standard ensures that the performance of the light meets the required specifications for the entire 5 year period. Please see Warranty for details.
Q. How does one know when an LED product is out of photometric specifications?
Answer:Our warranty allows for a minimum of 5 years of operation while ensuring the beacon meets the FAA"s minimum photometric requirements. LED"s do not "burn out" similar to incandescent. An LED will have a slight degradation of light output with use. This is similar to the degradation of a strobe tube.
