Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- BC-3B/3BF
- Usage:
- Other
Supply Ability
- Supply Ability:
- 5000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- export carton.
- Port
- Shanghai
- Lead Time:
- Normally 10days,depend on order quantity

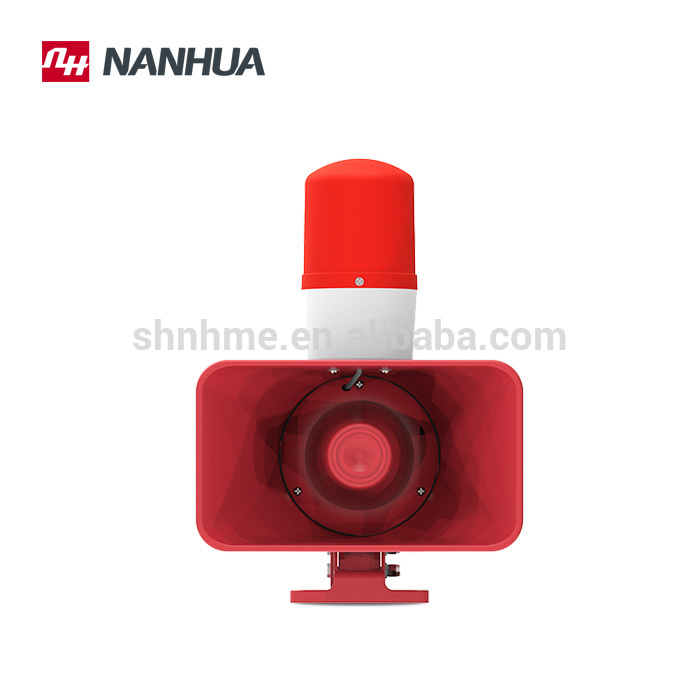

BC-3B Outdoor siren and flashing Light is specially designed for overhead travelling cranes, gantry cranes, bridge cranes used in harbors, metallurgies, large plants and coalmines etc.
It employs engineering plastic enclosure and PC dome, which houses amplifier circuit, siren and super bright LEDs, providing environmental protection, shockproof, ease of mount and operation and external long life
Customized tone may be implemented based on customer"s special requirement
Specifications
| Description | Parameter |
|---|---|
| Supply voltage | AC24V~AC240V / AC380V DC12V~220V(optional) |
| Frequency | 50Hz~60Hz |
| IP Protection | IP65 |
| Siren wattage | 10W |
| dB SPL | 106dB |
| LED wattage | < 5W |
| Weight | 1.8kg |
| Siren tone | A tone(Special tone can be customized) |
Functions & Features
- Giving emergency sound and alert light simultaneously.
- Loud power alarm sound.
- Providing continuous operation, stability and durability.
Product File
- Model: BC-3B
- On Stream Date:
- Applications: Wharf, Plant, Large Motorcycle, etc.
- Standard: GB 8108-1999 ,GB 3785-1983
- Certificate:
- Patent:
- Improve Records: Ist Dec. 2009, circuit changed, steability increased
- Fault Records: Cable break, light not work
- Quantity/Delivery Day: 50 Sets / 5 Days
