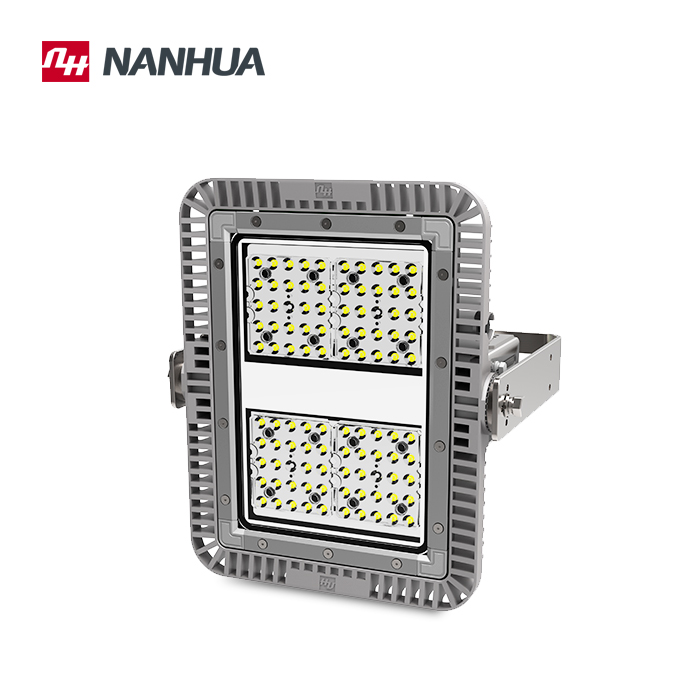

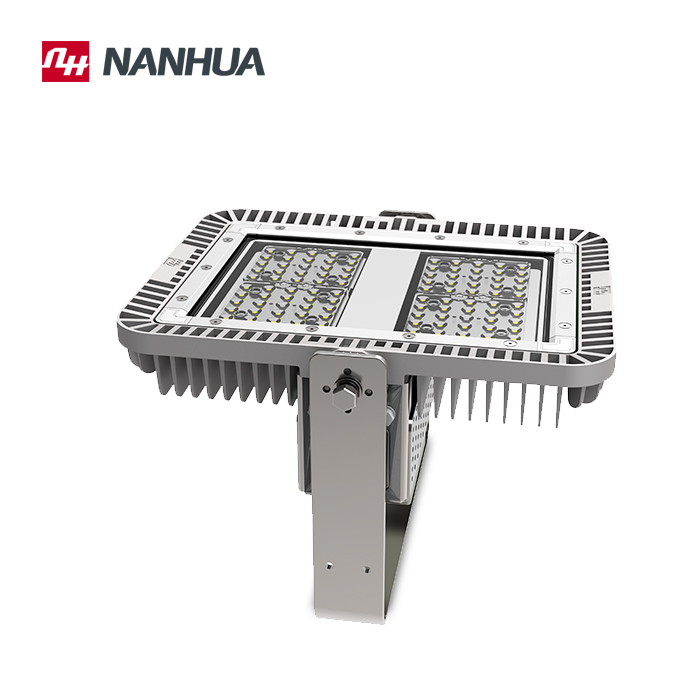

UL Flood Light 200W
Application
Designed for the indoor or outdoor lighting for the ports, mines, squares and large buildings
Major functions and features
• Excellent shockproof and corrosion resistance.
• Adjustable mounting bracket
• Perfect for the onshore application with IP65
• Lead line or Terminal wiring type.
• Multiply power consumptions can be chosen.
• Hollowed-out grid design and aluminum alloy body, light-weight and fabulous heat emission.
• State-of-the-art LED chips, high reliability and stability.
• With anti-drop chain to improve the safety-protection
•Multiply lighting angle is selectable
Specifications
Power consumption | LF301A:100W | Operating voltage | AC100V~AC240V | |
LF302A:150W | Power frequency | 50Hz~60Hz | ||
LF303A:200W | ||||
Color temperature | Cool white:5500K-6000K | Life span | ≥50000hrs | |
Warm white:3000K-3500K | Color rendering index | Cool white: Ra=75 | ||
Lighting efficacy | 85-90 lm/w | Warm white: Ra=80 | ||
PF | >0.9 |
|
| |
Weight | LF301A: 9.5Kg | Humidity | 10% ~ 95% (non coagulation) | |
LF302A: 10.5Kg | Operating temperature | -30°C ~ +60°C | ||
LF303A:11.2Kg | ||||
Material | Body:Aluminum alloy | IP rate | IP65 | |
Lens:PC |
|
| ||
Installation details
• Secure the light on a smooth surface which has enough strength with M10 screws
• Fix the anti drop chain at the appropriate place where has enough mechanical strength
• Open the gland cover at the side of the lamp, connect the power lines to terminal L, N, PE or directly connect to L, N, PE power through lead lines.
• Then fasten the scews of back borad and connect power.
Notice
• Temperature rise when light working is normal phenomenon.
• Make sure there are more than 3m between light and lighted objects to avoid fire.
• Do not cover light with any object.
• Replacement and maintenance should be processed by professionals after power off.
