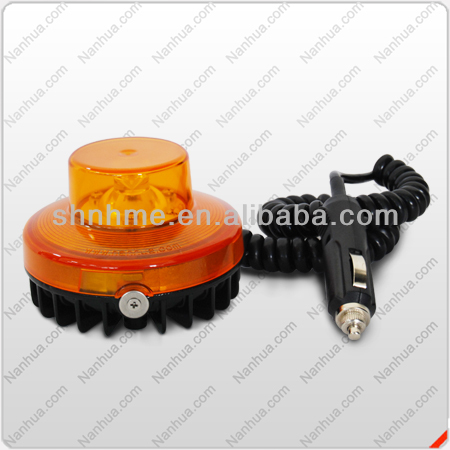

driveway patrol
Specification
Standard | Compliant to the ICAO low intensity type C | Vertical degree | 12 |
Light source | LED | Peak intensity angle | 2.5 |
LED color | Amber / blue(other color can be customized) | Horizontal degree | 360 |
Operating voltage | DC12~24V(other can be customized) | Flashing rate | 60-90/min(other can be customized) |
Power consumption | 1.5W(flash) | LED life | 100,000h |
Intensity | 50cd | On/off level | 400±100Lux |
| |||
Operating temperature | -40C ~ +70C | IP code | IP65 |
Humidity | 10% ~ 95% (no condensing) | Weight | 0.5kg |
Material | Base:Die casting aluminum Housing: PC |
|
|
Use Fresnel lens, high utilization of light, valid keeping light beam in the scope as required
Functions & Features
- Based on LED technology, low power consumption, and high efficiency.
- Use constant LED drive to prolong led life.
- Lamp housing – Polycarbonate, with good anti-impact strength, thermal stability, high transmittance.
- Die casting aluminum enclosure with powder-coat paint finishes, providing corrosion resistance and durability.
- Built-in photocell can switch ON/OFF the light at dawn and dusk (optional).
- Several mounting styles for selections, such as screws fixing, magnetic fixing.
- Extremely Reliable – Major Maintenance Cost Saving.
Mounting dimension(unit: mm)
Installation and operation
- Put the aviation obstruction light on the top of the obstructions according to its mounting type (magnetic or common type).Fix and fasten the spring line.

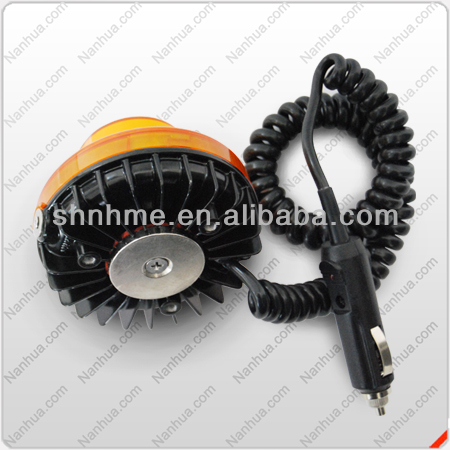

- Magnetic type
Directly fix it onto the surface of the magnetic metal. - Common type
Fix it onto the surface with 3pcs M6 bolts for the common mounting .
- Magnetic type
- Make sure the voltage of car socket is the same with that of obstruction light, the light can work at DC10-30V.
- Plug in the car socket, when the luminance is less than the switch value of obstruction light, the light will flash normally while when it is more, the light will stop automatically.
Functions & Features
- The aviation obstruction light can only work normally when the luminance of environment is less than 400±100Lux.
- The fuse is installed inside of the car socket, please change it on time if damaged.
- Temperature rise when light working is normal phenomenon.
Product File
- Model: LS730U
- On Stream Date:December, 2012
- Applications:&Design for the moving obstructions in the airport except air plan, such as all kinds of vehicles.
- Standard:ICAO Type C low intensity.
- Certificate:
- Improve Records: None
- Fault Records:None
- Quantity/Delivery Day:100 sets/ 10 days
