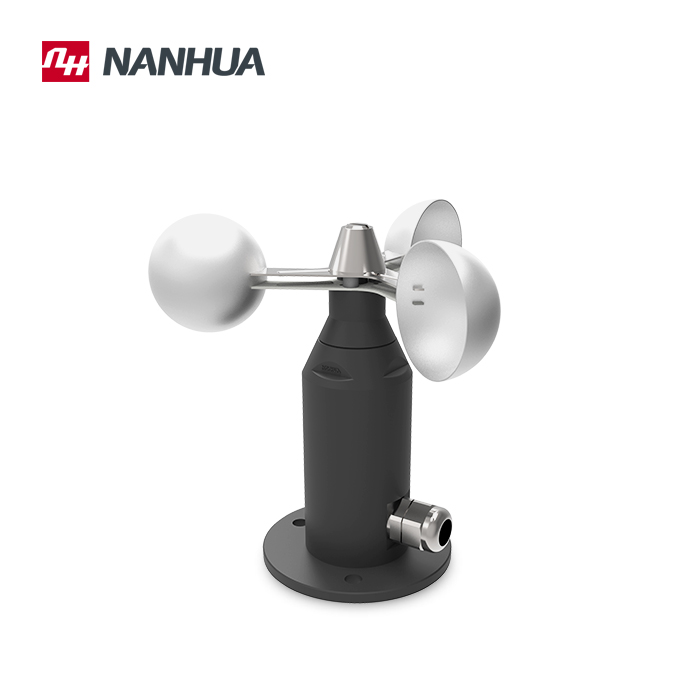

wind speed sensor
Features |
l Adopt non-contact magnetic measuring technology. l High accuracy, high reliability l Wide wind measuring range, low starting threshold. l Metal housing, excellent corrosion resistant design, stainless steel wind cup, high anti-wind level. l Wind cups use stainless steel, suit for harsh environment application. l Compact design, include wind speed measuring and heating, ease to mount and maintain on site. l Fault tolerant design, product not damage in wrong wiring connection. l Multistage lightning surge design. l Wide voltage design. |
General Specifications
|
Electrical |
| Mechanical |
|
Rated voltage | DC12V~30V | Housing material | Aluminum alloy+Polyester coating |
Operating current | Max. 50mA | Wind cup | SS304 |
Heating voltage | DC12V~30V | Bearing | SS440C |
Heating power | ≤50W | Humidity | 0%~100%RH |
Heating type | PTC auto-heating | Operating temperature | Ta -40 °C ~ +70 °C |
Lightning surge | IEC61000-4-5 4kV /2kA | IP rate | IEC60529 IP65 |
| IEC61000-4-2 air discharge 16kV | Wiring | Aviation socket |
| IEC61000-4-2 contact discharge 8kV | Housing color | Black RAL9005 |
|
| Weight | 0.6 kg |
Meteorological |
|
|
|
Starting threshold | ≤0.5m/s Vu=20 °C |
|
|
Anti-wind level | >70m/s |
|
|
Range | 0.5~50m/s |
|
|
Accuracy | ±0.5m/s(VL<5m/s) |
|
|
| ±3% (VL>5m/s) |
|
|
Resolution | 0.1m/s |
|
|
