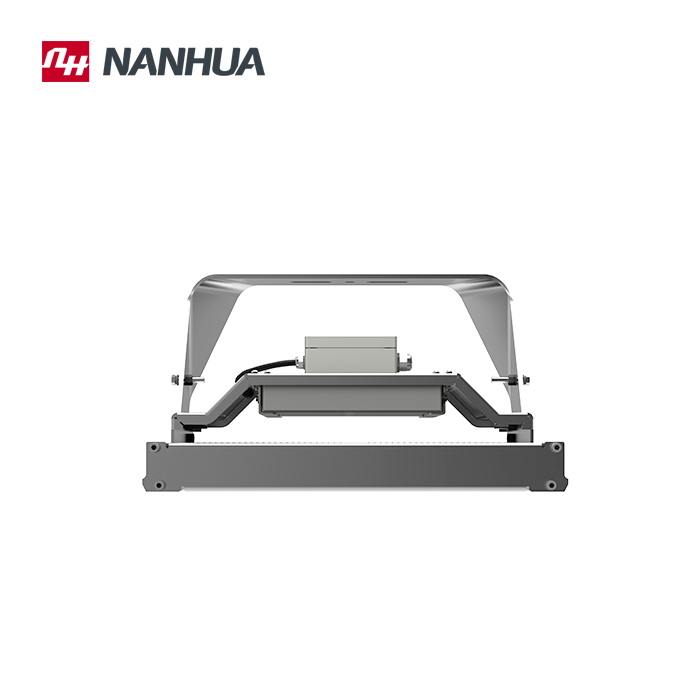

LED High Mast Light LF70 for Outdoor Stadium Lighting
Application
Widely used in ports, factories and mines, plazas, overpasses, crossroads and other regions of the high mast and area lighting.
Major Functions and Features
Flat slim shape with high strength design
NANHUA independent design
Use international brand original high-performance light source and power supply, stable and reliable
High-beam professional light distribution design
Modular design, easy for maintenance
Main Specifications
Input Voltage | AC100V~AC240V | Frequency | 50Hz~60Hz | ||
Rated Power | 560W/440W/300W/220W/150W/75W | ||||
CCT | Cool White:5500K-6000K Warm White:2700K-3000K | LED Lifespan | ≥50000hrs | ||
PF | >0.9 | ||||
Lumens per Watt | Cool White: 120 lm/W Warm White:100 lm/W | CRI | Cool White:Ra≥70 | ||
Beam spread | Special beam for High Mastuse | Warm White:Ra≥80 | |||
IP Rate | IP65 | IK Rate | IK08 | ||
Vibration-resistant Level | 1.5G(ANSI C136.31) | Ambient Humidity | 10% ~ 95% (noncondensing) | ||
Material | Housing:Aluminum alloy | Operating Temperature | -30C ~ +50C | ||
Lens:PC | Corrosion-resistant Level | ISO9227 720H | |||
Installation and Operation
• Lamps need to use M12 screws with anti-off nuts fix to the mounting surface, the mounting surface should be smooth and have sufficient mechanical strength.
• Fix the anti-dropping chain in the proper place, and the fixing surface should have sufficient mechanical strength.
• Connect the lead wire to the L,N,PE power.
•Lamp external power cord must meet at least 16AWG three-core sheathed cable, sheathed wire diameter 10MM.
Notice
•When lamp in operation, Lamp aluminum lamp body and PC surface has a certain temperature rise, is a normal phenomenon
• The Minimum distance from the object to be illuminated should be 3 metersto avoid fire.
•The lamp surface shall not be covered when operating.
• Should cut off the power before lamps’ replacement and maintenanceuntil cooling well, and should be operated by professionals.
Appendix 1:Fixture Lumens
| 2700K-3000K | 5500K-6000K |
(lm) | (lm) | |
560W | 56000 | 67200 |
440W | 44000 | 52800 |
300W | 30000 | 36000 |
220W | 22000 | 26400 |
150W | 15000 | 18000 |
75W | 7500 | 9000 |
