Home > Products > LF70XX Airport Apron High Mast Lighting

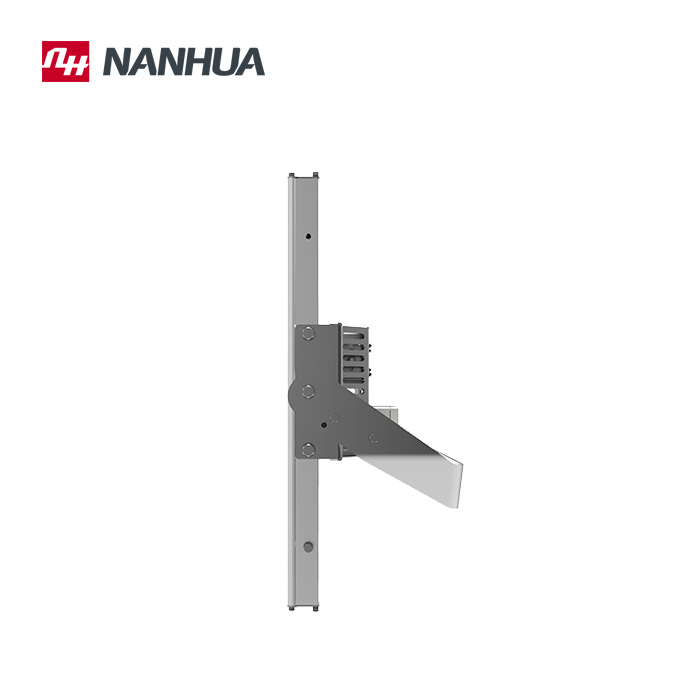

LF70XX Airport Apron High Mast Lighting
Click on the image to view the original image
Product： views：2LF70XX Airport Apron High Mast Lighting
Branch： NANHUA
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 19:54
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100V~AC240V
Lamp Luminous Flux(lm):
9000
CRI (Ra>):
70
Color Temperature(CCT):
Cool White
Beam Angle(°):
NA
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Model Number:
LF70
Working Temperature(℃):
-30 - +50
Light Source:
LED
Item Type:
High Mast Lights
LED Light Source:
Cree
Lamp Power(W):
150
Lamp Luminous Efficiency(lm/w):
120
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton pack or wooden pack according to customer's needs
Port
Shanghai
Lead Time:
in 20 days

LED High Mast Light LF70 for apron high mast lighting







Application



Widely used in ports, factories and mines, plazas, overpasses, crossroads and other regions of the high mast and area lighting.



Major Functions and Features



  • Flat slim shape with high strength design
  • NANHUA independent design
  • Use international brand original high-performance light source and power supply, stable and reliable
  • High-beam professional light distribution design
  • Modular design, easy for maintenance



Main Specifications



Electrical



Mechanical



Rated voltage

AC100V~AC240V

Body material

Aluminum alloy + SS

Frequency

50Hz~60Hz

Cover material

PC

Rated power consumption

560W/440W/300W/220W/150W/75W

Safety wire material

SS

Power factor

>0.9

Operating temperature

Ta-30℃~ +60℃

(overheat protection)

Lightning surge

GB/T 17626.5-2008±2KV

IP Rate

IEC60529 IP65

Electrostatic discharge

GB/T 17626.2-2008± 6KV

Anti-vibration

IEC60068  5G

EMC

GB/T 17626.5-2008

IK rate

IEC62262 IK08



GB/T 17626.2-2008

Salt spray rate

ISO9227  720H



GB/T 17626.4-2008

Body color

Silver





Weight

560W: 27kg, 440W: 23kg,  300W: 16kg, 220W: 13kg,  150W: 11kg,  75W: 9kg





Photometric







LEDs life span

≥50000h





Color temperature

Cold white: 5500K-6000K

Warm white:2700K

Lumen per Watt

Cold white: 120 lm/w

Warm white:100 lm/w

CRI

Cold white: Ra≥70

Warm white: Ra≥80

Beam angle

15°/ 25°/ 60°







Installation and Operation



  • Lamps need to use M12 screws with anti-off nuts fix to the mounting surface, the mounting surface should be smooth and have sufficient mechanical strength.
  • Fix the anti-dropping chain in the proper place, and the fixing surface should have sufficient mechanical strength.
  • Connect the lead wire to the L,N,PE power.
  • Lamp external power cord must meet at least 16AWG three-core sheathed cable, sheathed wire diameter 10MM.



Notice

  • When lamp in operation, Lamp aluminum lamp body and PC surface has a certain temperature rise, is a normal phenomenon
  • The Minimum distance from the object to be illuminated should be 3 metersto avoid fire.
  • The lamp surface shall not be covered when operating.
  • Should cut off the power before lamps’ replacement and maintenanceuntil cooling well, and should be operated by professionals.



Appendix 1:Fixture Lumens





2700K-3000K

5500K-6000K

(lm)

(lm)

560W

56000

67200

440W

44000

52800

300W

30000

36000

220W

22000

26400

150W

15000

18000

75W

7500

9000
