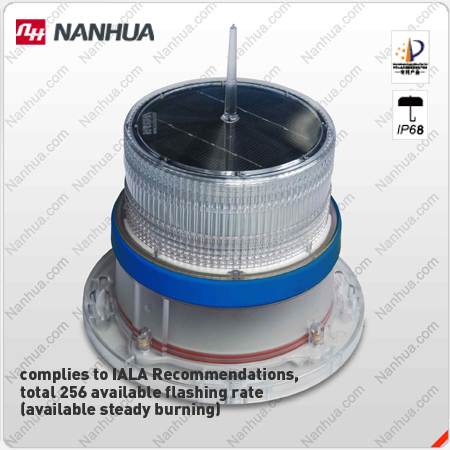

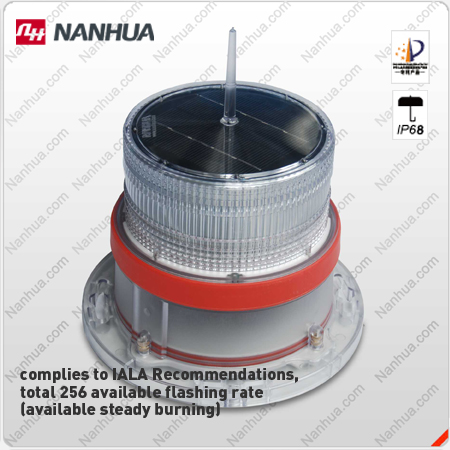

ML201 solar equipment marking
ML201 solar equipment marking is Ideal for hazard marking, aquaculture, navigation, perimeter lighting & a host of other applications.
Main functions and features
• Based on LED technology, and its color complies to IALA Recommendations E-200-1.
• Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
• PC housing,UV resistance, shockproof and corrosion proof.
• With birds pike
• 256 kinds of flashing rate are available, comply with IALA
• intensity can be adjusted from 25%, 50%, 75% and 100% of total intensity
• With photocell, and manual switch.
• With Steel wire to prevent falling during mounting and adjusting
• With built in NiMH battery, easy for replace.
• No RF-radiations, EMC Compliant.
• Extremely Reliable and cost saving .
Speficiations
Light Characteristics | |
Intensity | 10cd |
Visible Range | >2 .5nm |
Available colors | Red, amber, green, blue, white |
Vertical degree | >9 |
Horizontal degree | 360 |
Light source | LED |
LED life | ≥100,000 hrs |
Electrical Characteristics | |
Autonomy | >20 days(12hour darkness,12.5%duty cycle) |
On/off level | 300 lux±100lux |
Flashing rate | complies to IALA Recommendations, total 256 available flashing rate(available steady burning) |
Power Supply | |
Solar module type | Multicrystalline |
Output | 1.8 Watts |
Battery type | High grade NiMH-Environment friendly |
Battery capacity | 3.6V/8 AH |
Physical Characteristics | |
Integrated housing | UV resistance PC |
Waterproof | IP68 |
Weight | 1.7 KG |
Ambient temperature | -30°C ~ +70°C |
Size | H: 170mm, D: 228mm |
Mounting dimension | 200-4XM6 |
Customized | External power or Infrared control |
Size(mm)
Product File
- Model: ML201A solar equipment marking
- Applications: Applied to maritime buoy,river buoy,shore beacon, fixed pile dolphin and maritime oil well structure as signal light.
- Standard: General Navigation light technical conditions; Navigation light signal color;
- Certificate:
- CE certified
- Wind Tunnel Test Report
- Design patent
- Improve record:None
- Fault Record:None
