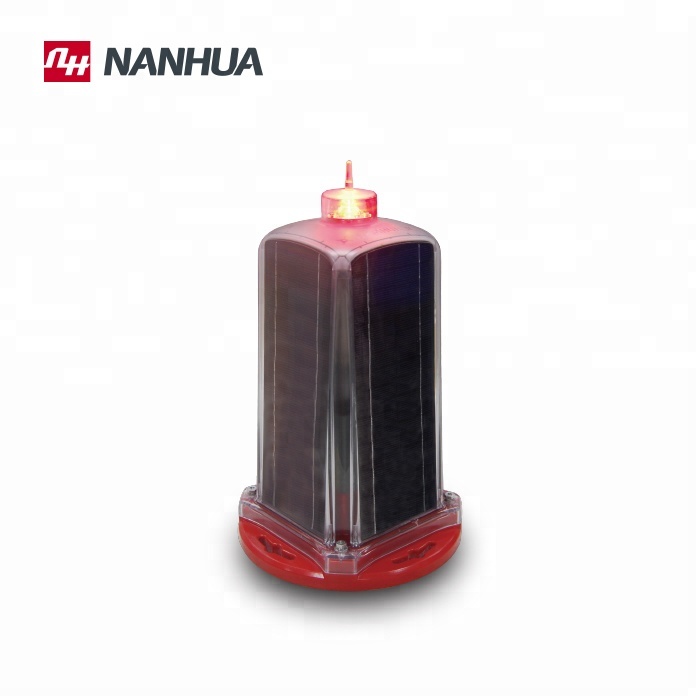

ML411A led solar marine lanterns
ML411A led solar marine lanterns
Applying to ocean buoy, river buoy, shore mark and offshore oil platform or other fixing and floating aids for navigation.
Major functions&Features
GSM remote control.
GPS ( optional).
Based on LED technology, its color complies to IALA Recommendations E-200-1.
Lamp shade, lamp body integration design, IP68.
PC housing, UV resistance, shockproof and corrosion resistance.
With bird spike.
256 kinds of flashing rate are available, comply with IALA.
Built-in sealed lead-acid colloidal battery, maintenance-free, easy to replace.
Specifications
Optical | |
Effective intensity | >40cd |
Visible range | >4 Nautical mile |
LED color | red,yellow,blue,green,white |
Vertical degree | >7° |
Horizontal degree | 360 ° |
Light source | LED |
LED lifetime | ≥100,000 hrs |
Operation | |
Autonomy | >30 days(14hour darkness,12.5%duty cycle) |
On/Off level | 300 lux±100lux,end user can adjust it |
Flashing rate | complies to IALA Recommendations, total 256 available flashing rate( steady burning,adjustable ) |
Power Supply | |
Solar panel | monocrystalline silicon solar panel |
Output | 5W*4 |
Battery | Maintenance free sealed lead acid battery |
Battery capacity | 12V/12 Ah |
Physical Characteristics | |
Integrated housing | UV resistance polycarbonate |
Waterproof | IP68 |
Weight | 5.9KG |
Temperature | -40℃ ~ +80℃ |
Size | High 370mm, Diameter 235mm |
Installation dimension | 235mm 200mm |
Option | External charging power GPS synchronization GSM faulty alarm function |
Installation and operation
For sake of battery protection during transportation and storage time, StAt is in oFF status. FLASH is 027. Intensity is 36cd. Before installation or testing, please set StAt: Auto or on. Adjust demanded light character and intensity.
If light does not work at first using time, please put the light under sunlight to charge 12 hours or plug charger to charge battery. The light will Work normally.
Solar marine lantern must be installed where is full of sunlight, in order to make lantern work continuously.
Please contact us if any question in operation.
Notice
The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
