Home > Products > LS310 FAA Type L810(F) aviation light

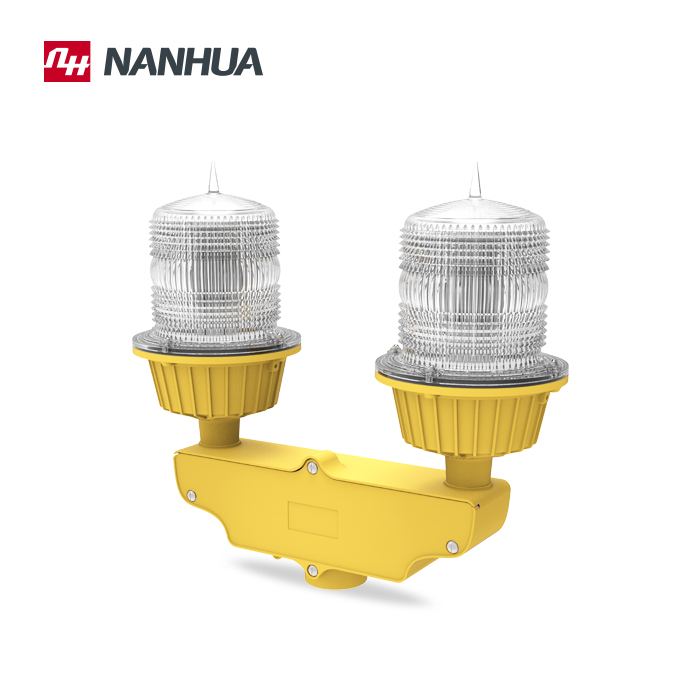

LS310 FAA Type L810(F) aviation light
Click on the image to view the original image
Product: views:2LS310 FAA Type L810(F) aviation light
Branch: NANHUA
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:55
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC24V/DC48V
Beam Angle(°):
≥10°
IP Rating:
IP65
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Model Number:
LS310
products name:
LS310 FAA Type L810(F) aviation light
Standard:
Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810
Light source:
High luminance LED
Material:
Body:aluminum alloy Housing:PC
Power consumption:
6W single light ( steady burning )
Vertical degree:
≥10°
Intensity:
≥32.5cd
LED lifetime:
≥100,000h
IP protection:
IP65
Weight:
4.5kg
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month LS310 FAA Type L810(F) aviation light
Packaging & Delivery
Packaging Details
Cartons or Wooden cases as requirement of LS310 FAA Type L810(F) aviation light
Port
Shanghai port
Lead Time:
1~4 weeks depends on one batch order quantity

LS310 FAA Type L810(F) aviation light

Product Description



• Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810

Application: tower(power transportation, telecom, GSM), smokestacks(power plant, coking plant, chemical plant), high buildings, bridge, harbor machinery, construction machinery, wind turbine etc for aircraft warning.

Main functions and features

  • Use Fresnel lens, high utilization of light, valid keeping light beam in the scope as required.
  • Based on LED technology, low power consumption, and high efficiency.
  • Lamp housing is with bird spike. Its material is polycarbonate, good at anti-impact strength, thermal stability, fire resistance..
  • Basing is aluminum alloy. It is light weight and corrosion resistance.
  • G3/4”pipe is available for installation, easy for mounting.
  • Self- contained compartment, with stainless steel wire which is used to secure the unit against falling in operation.
  • LAMP1, LAMP 2, 2 lamps power input are separate control, with controller can come true flashing, steady burning, hot & standby.
  • Extremely reliable, maintenance cost saving.

Specification



Standard

Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810

Vertical degree

≥10°

Light source

High luminance LED

Horizontal degree

360°

Light color

red(other color can be customized)



Operating voltage

DC24V/DC48V

Power consumption

6W single light ( steady burning )

Intensity

≥32.5cd

LED lifetime

≥100,000h

Operating temperature

-40°C ~ +70°C

IP protection

IP65

Relative humidity

10% ~ 95% (no condensing)

Weight

4.5kg

Material

Body:aluminum alloy

Housing:PC







Installation and operation

  • Please check the supply voltage does comply with rated voltage of the lamp.
  • Screw the lamp on G3/4’pipe of mounting bracket, which should be fixed on a smooth surface with enough mechanical strength.Or you can select our mounting bracket: PJ024, PJ005. Note that installation is fixed and reliable, so as not to fall.
  • Open the terminal box , according left picture to connect lamp1, lamp2 power cable, attention to + - polar.
  • Switch on the power after checking up. The light begins to work.

Flash frequency adjust method

  • Install the terminal box.
  • Connect the power cable, lights working.

Notice

  • The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
  • When the lamp works, temperature rising is normal phenomenon.
  • Please do not open any components except professional serviceman.
  • The product is a sealed structure. Do not be tampered by anyone other than registered installer.
Company Information

 Company Introduction



NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.



Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000m². As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificate.



Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.



NANHUA’s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.

 Our Philosophy


NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.



Features of Aviation obstacle lights (FAA)



Features of Aviation obstacle lights (ICAO)

Light Type

Colour

Signal type/

(flash rate)

Peak intensity(cd) at given Background Luminance(b)

Day

(Above 500cd/m²)

Twilight

(50-500cd/m²)

Night

(Below 50cd/m²)

Low-intensity,Type A

(fixed obstacle)

Red

Fixed

N/A

N/A

10

Low-intensity,Type B

(fixed obstacle)

Red

Fixed

N/A

N/A

32

Low-intensity,Type C

(mobile obstacle)

Yellow/

Blue

Flashing(60-90fpm)

N/A

40

40

Low-intensity, Type D

(follow-me, vehicle)

Yellow

Flashing(60-90fpm)

N/A

200

200

Low-intensity, Type E

Red

Flashing

N/A

N/A

32

Medium-intensity,Type A

White

Flashing(20-60fpm)

20 000

20 000

2000

Medium-intensity,Type B

Red

Flashing(20-60fpm)

N/A

N/A

2000

Medium-intensity,Type C

Red

Fixed

N/A

N/A

2000

High-intensity, Type A

White

Flashing(40-60fpm)

200 000

20 000

2000

High-intensity, Type B

White

Flashing(40-60fpm)

100 000

20 000

2000
