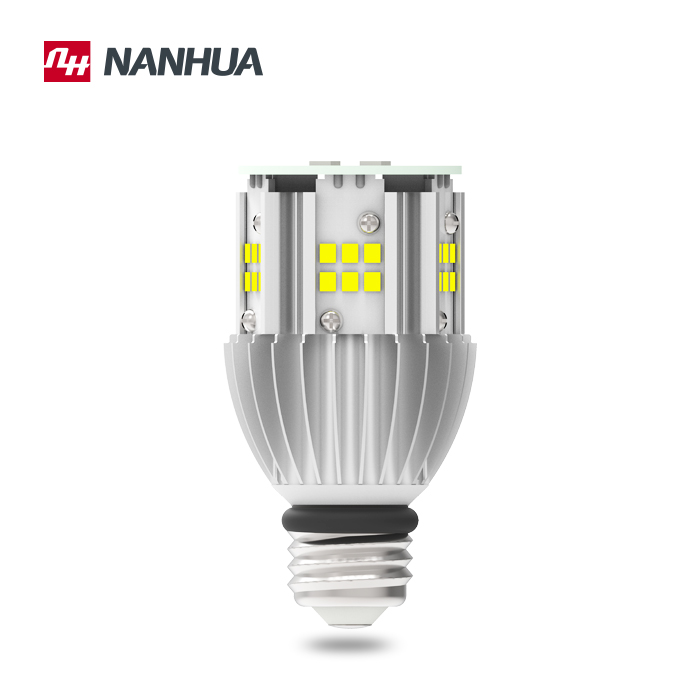

LB203 E27 LED aviation obstruction light bulb
LB203 E27 LED aviation obstruction light bulb for a wide variety of cranes used in Harbors, Metallurgies, Towers (Telecom, GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light.
The lamp is used to replace the incandescent bulb,or make it combine the red housing as lowintensity aviation obstruction light.
Main functions and features
- Based on LED technology.
- Body is aluminum alloy,with good heat-dispersion,longer life time.
- Built-in isolation constant-current power supply,high efficiency and stability.
- Screwed type, convenience to mount.
Specification
Standard | ICAO (Aerodromes Annex 14) (Type A) and FAA-L810 | Working mode | Stead burning(flash is optional) |
LED source | LED | Vertical degree | ≥10° |
LED color | White(red is optional) | Horizontal degree: | 360° |
Operating voltage | AC110V~AC240V (others can be customized) | Frequency | 50-60Hz |
Power consumption | 6W | Flux | 600 Lm |
Intensity | >32.5cd | Led life | ≥50,000h |
Operating temperature | -40°C ~ +55°C | Material | Body:Aluminum Alloy Insulator: PC |
Relative humidity | 10% ~ 95% (no condensing) | Weight | 0.14kg |
Installation and operation
- Please use this product according to the local standard or ICAO standard.
- Mounting the bulb with E27 base on smooth surface and connect power cable to the light.
- If the light works under DC power supply, connect the power cable according to the indicating marking on the bulb
- Check whether the supply voltage complies with operating voltage of the bulb.
- Screw the lamp on the E27 base in clockwise.
- Power on after verification of connection and the light starts to work.
Model Selection
Model | Features |
LB203A | Intensity >32.5cd |
LB203B | Intensity >10cd |
Note
- Please do disconnect the power supply whatever screw the lamp or take down it.
- Please advoid to be hurted by the aluminum flake or with glove to operate.
- There is adhesive at the joint,it can’t be opened to repair.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
