Aircraft navigation lighting

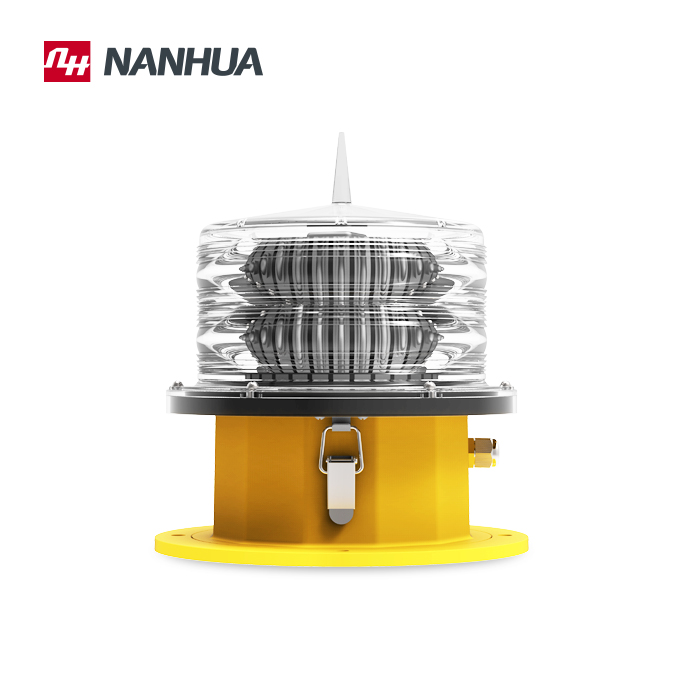

LM100 aircraft flashing warning light
· ICAO medium intensity Type B obstacle lights
· FAA type L-864/L-885 Steady-burning red obstruction light & Flashing red obstruction light
· Application: Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Major Functions&Features
- Professional photometric lens design,valid keeping light beam in scope as required.
- Based on latest LED technology, extremely low power consumption and high efficiency.
- Outdoor use with water proof,wind (>240km/h) and corrosion resistance.
- No electromagnetic or audio interference.
- EMC compliance,use constant current driver to extend LED lifespan.
- Option function: Built-in photocell,Flash rate adjustable, GPS flash synchronization.
Specification
International standard | ICAO(Annex 14)medium intensity aviation obstruction light standard and FAA-L864 | ||
Color | Red | Light source | LED |
Intensity | 2000±25% cd | Working mode | Steady burning or flashing (optional) |
Vertical degree | ≥3° | Horizontal degree | 360° |
Voltage | AC110V~AC240V/DC48V | Power consumption | 65W (steady burning) |
Light source power | 60W | LED life | ≥100,000h |
Flashing rate | 20-60times/min(Default:20 times/min) | ||
On/Off level | 50lux (Suitable for the light control feature ) | ||
| |||
Ambient temperature | -40°C ~ +70°C | IP protection | IP65 |
Humidity | 10% ~ 95% (no coagulation) | Weight | 7.0kg |
Installation and operation
- Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
- When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object.
- Make sure the power supply can match the rated power of light before connecting.
- Unfasten three buckles on the base and overturn the lamp body, then the terminals appear.
- Insert the power cable from the cable gland and then connect them to the corresponding terminals inside the lamp body.
- After finishing the connection, fasten the buckles. Check whether the power cables are connected correctly before power on.
- GPS synchronization test should be in the outdoor environment without any block. Synchronization takes about one minute.(Only suit for the type of synchronization with GPS).
Notice
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
- Ensure that the power connection part is correct before using.
- Temperature rise when light working is normal phenomenon.
- Please do not open any components inside by yourself.
- This product is a sealed structure; Please do not be tampered with by anyone other than registered installer.Once found, we are not warranty.
Company Introduction
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
