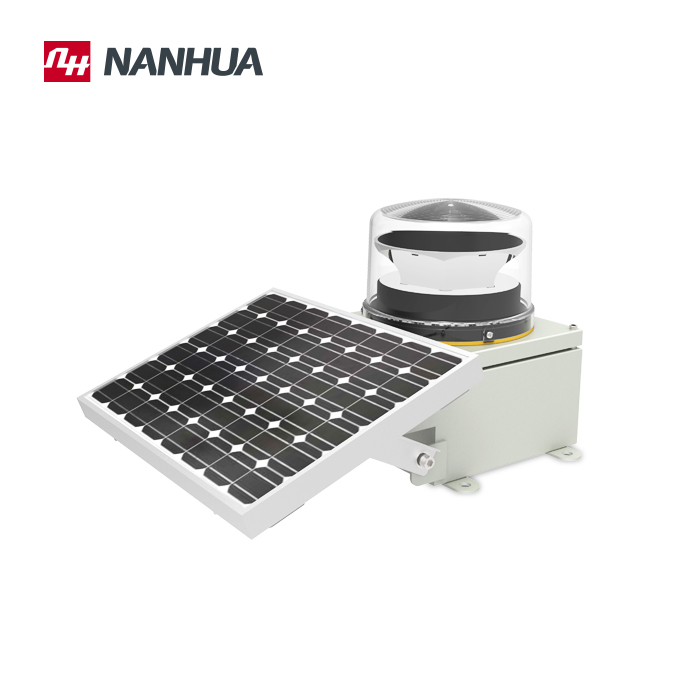

LT864B medium intensity aviation solar light
LT864B solar aviation hazard marking
- ICAO(Aerodromes Annex 14)
- Application:For Masts & Tower obstacles(Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.
Main functions and features
Based on LED technology,working stable, low maintenance costs.
Anti-vibration, corrosion resistance.
High power LED, LED lifespan more than 100,000 hours
GPS ( Customized )
zigbee wireless alarm signal output(optional)
International standard | ICAO; FAA-L864;MH-T6012-1999 | Vertical degree | ≥3° |
Light source | LED | Horizontal degree | 360° |
Color | Red | Flashing rate | 20 times/min |
Power supply | 18V 12W silicon solar panel 12V 12AH battery | Flash duration | 100ms |
Power consumption | 30W |
Lifespan | ≥100,000hours |
Intensity | 2000±500cd | On/Off level | 50-200 lux |
Ambient temperature | -40°C ~ +55°C | IP Protection | IP65 |
Humidity | 10% ~ 95% (no coagulation) | Weight | 11kg |
Material | Case: cold rolled sheet(powder paint),Base:Aluminum alloy Housing:PC,Reflector:ABS | Continuous working time in cloudy days | 7 days(Ambient temperature 25°C) |
Installation and Operation
- Install of the product before, ensure product install position has enough space, the specific size should be not less than the install of the light size, the light specific pls see the first left page as shown.
- More than 3 months not use this product, need charge battery, 2 ways:
1. Open the box, take out the battery, use external constant current power supply for battery charging, require 14V charging voltage, charge current 3A, large current charging for a period of time when the charging current is gradually reduce to close to 0 after stop.
2. Put the light under the sunlight directly, and open the battery switch, charge the battery by sun energy. Turn off the battery switch after a full charge.
Please do not open the control box by yourself when operating to avoid danger.
This product is a sealed structure; should not be tampered with by anyone other than professional installer.
Please use this product strictly on accordance with the instruction above.
Notice
The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
