high intensity flashing white obstruction light

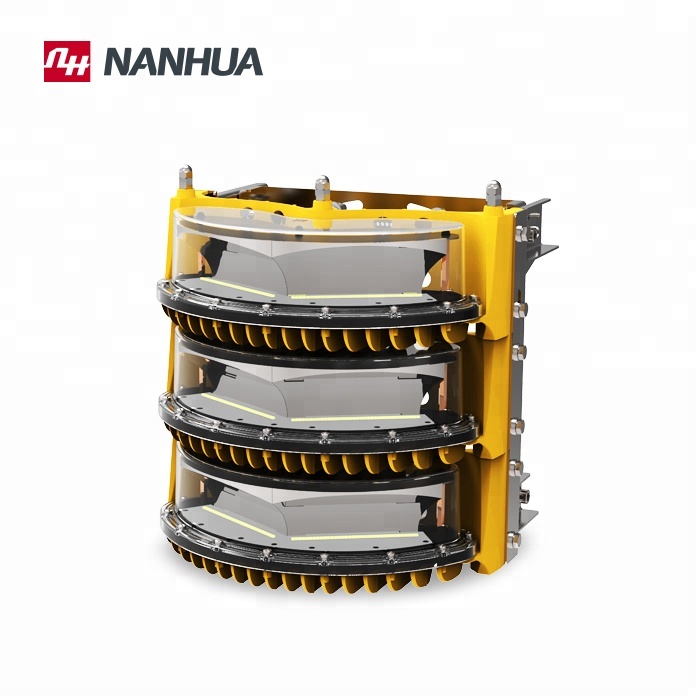

LH88 high intensity flashing white obstruction light
Applications
- Wind turbines
- Chimneys/ stacks
- Buildings and other tall structures
- skyscrapers
Major functions&Features
- Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
- Anti-UV, shock-resistant PC housing; flammability level: UL94V-2.
- Waterproof silicone seal structure.
- Light source using LED technology, long life, low energy consumption, high efficiency.
- Professional EMC design, anti-electromagnetic interference.
- Wind load level:≥240km/h.
- Day and night auto switch, can be controlled by local time or photocell.
- Lamp with fault alarm detection and alarm output.
- GPS synchronization function (optional).
Specifications
Standard | FAA:Advisory Circular 150/5345-43GH;Specification for Obstruction Lighting Equipment. | ||
Electrical parameters | Mechanical parameters | ||
Input Voltage | AC200~240V/AC100~130V/DC48V optional(power box ) DC48V(Light head) | Operating | -40°C ~ +65°C |
Frequency | 50-60Hz(AC power box ) | Ambient humidity | 0% ~ 90% RH(No condensation) |
Rated Power
| With power box, 1 layer 85W(daytime) | Storage | -55°C ~ +70°C |
With power box,2 layers 150W (daytime) | IP rate | IP66(Light) IP65(Power box) | |
With power box,3 layers 220W (daytime) | Weight | 6Kg(One layer light head) | |
| Surge Lightning Protection | IEC61000-4-5 L- L 6kV | 7.3kg(Junction box) | |
IEC61000-4-5 L- G 6kV | 9.2Kg(bracket) | ||
| Electrostatic discharge | IEC61000-4-2 Contact discharge 8kV | 40Kg(AC power box) | |
| 11Kg(DC power box) ) | |||
| Meteorological | |||
Light source | LED | Intensity
| 270,000±25% cd(FAA-L856,Our Model: LH88FA) |
LED lifespan | ≥100,000h | 140,000±25% cd (FAA-L857,Our Model:LH88FB) | |
Signal Type | flashing | 200,000±25% cd (ICAO-Type A,Our Model:LH88AA) | |
Flash Rate | 40FPM | 100,000±25% cd (ICAO-Type B,Our Model:LH88AB) | |
Horizontal Beam Spread | 120° | 200,000±25% cd (CAAC-Type A,Our Model:LH88CA) | |
| Vertical Beam Spread | 5° | 100,000±25% cd (CAAC-Type B,Our Mode:LH88CB) | |
| On/Off level | Night(<50Lx),Dawn(50-500Lx),Day time(<500Lx),Dusk(50-500Lx) | ||
Precautions
- For high-power lamp , the surface temperature is high, it cannot be covered. And the distance from the object no less than 3m, to avoid burns or fire.
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
- If there is a temperature rise during operation, it is normal.
- It with delay judgment after photocell change detected which as normal phenomenon.
- Fault alarm will be delayed, is a normal phenomenon(For example, the maximum 24-hour delay of photocell fault, the maximum 1 hour delay of GPS fault ).
- Please do not open any components inside by yourself and do not look light horizontally to protect your eyes when light is working.
- This product is sealed structure, non-professional maintenance personnel do not disassemble, once discovered, the company will not warranty.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
