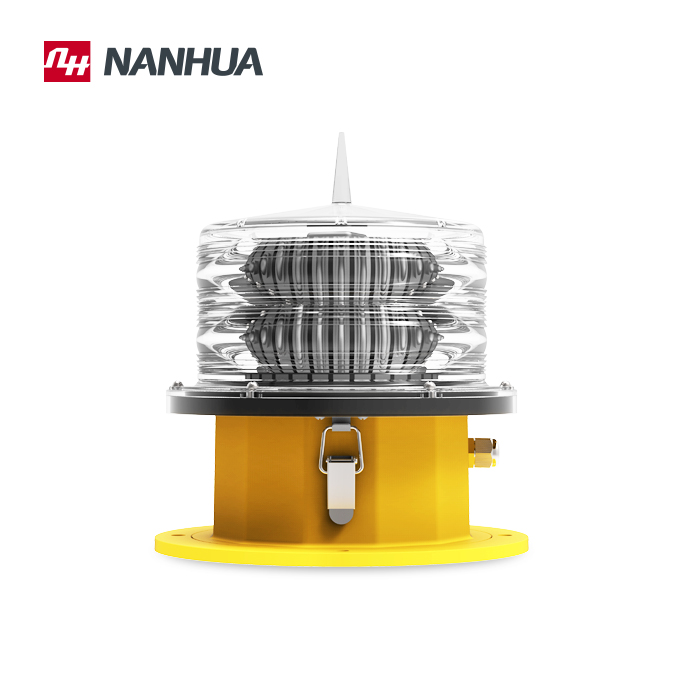

LM100 tower aviation obstruction light
· ICAO medium intensity Type B obstacle lights
· FAA type L-864/L-885 Steady-burning red obstruction light & Flashing red obstruction light
· Application: Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Major Functions&Features
- Professional photometric lens design,valid keeping light beam in scope as required.
- Based on latest LED technology, extremely low power consumption and high efficiency.
- Outdoor use with water proof,wind (>240km/h) and corrosion resistance.
- No electromagnetic or audio interference.
- EMC compliance,use constant current driver to extend LED lifespan.
- Option function: Built-in photocell,Flash rate adjustable, GPS flash synchronization.
Specification
International standard | ICAO(Annex 14)medium intensity aviation obstruction light standard and FAA-L864 | ||
Color | Red | Light source | LED |
Intensity | 2000±25% cd | Working mode | Steady burning or flashing (optional) |
Vertical degree | ≥3° | Horizontal degree | 360° |
Voltage | AC110V~AC240V/DC48V | Power consumption | 65W (steady burning) |
Light source power | 60W | LED life | ≥100,000h |
Flashing rate | 20-60times/min(Default:20 times/min) | ||
On/Off level | 50lux (Suitable for the light control feature ) | ||
| |||
Ambient temperature | -40°C ~ +70°C | IP protection | IP65 |
Humidity | 10% ~ 95% (no coagulation) | Weight | 7.0kg |
Installation and operation
- Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
- When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object.
- Make sure the power supply can match the rated power of light before connecting.
- Unfasten three buckles on the base and overturn the lamp body, then the terminals appear.
- Insert the power cable from the cable gland and then connect them to the corresponding terminals inside the lamp body.
- After finishing the connection, fasten the buckles. Check whether the power cables are connected correctly before power on.
- GPS synchronization test should be in the outdoor environment without any block. Synchronization takes about one minute.(Only suit for the type of synchronization with GPS).
Notice
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
- Ensure that the power connection part is correct before using.
- Temperature rise when light working is normal phenomenon.
- Please do not open any components inside by yourself.
- This product is a sealed structure; Please do not be tampered with by anyone other than registered installer.Once found, we are not warranty.
