Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- FR104
- Type:
- obstruction light controller
- Voltage:
- 220V
- Name:
- obstruction light controller
- Application:
- Control Lights
- Certificates:
- CE
- Warranty:
- 2 Years
- Output power:
- 24V:<384W
- Input Voltage:
- AC100-240V
- Output:
- 4 Channels
Supply Ability
- Supply Ability:
- 3000 Piece/Pieces per Month obstruction light controller
Packaging & Delivery
- Packaging Details
- carton,obstruction light controller
- Port
- Shanghai
- Lead Time:
- 5-15 days

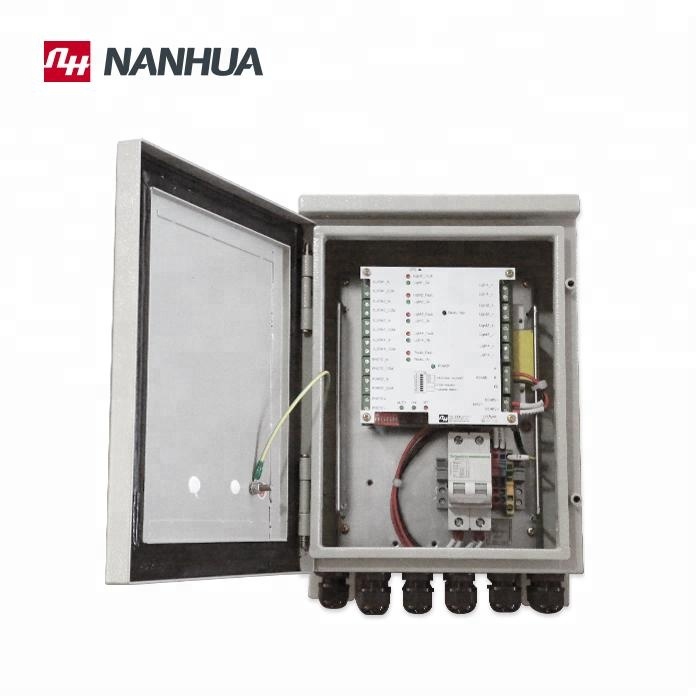

FR151W obstruction light controller
control box employs MCU IC control technology. With a pre-programmed software, FR151W can control 4 aviation obstruction lights switching and flashing at the same time. (Control box that can control more than 4 lights are also available upon request).
Specifications
| Description | Parameter |
|---|---|
| Supply voltage | AC110V ~ AC240V, DC48V |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | 300W (Optional) |
| Photocell sensitivity | 30-70 lux (optional) |
| Flashing | 20-60 times/min (optional) |
| Ambient temperature | -30°C ~ +60°C |
| Dimensions | 155x110x60 |
Functions & Features
- Switch on / off lights simultaneously.
- Failure instruction function, there are corresponding indicator shows when any of light failed.
- Instruction or alarm failure (optional)
- Alarm signal output, can connect to other external alarm devices (optional)
- The controller has a manual photocell switch, which can switch to manual control mode when photoelectric is unnecessary.
- PJ003 is the part that realize photoelectric function.
- The controller is indoor type (out-door type available upon request).
Product File
- Model: FR151W
- On Stream Date: Dec. 2, 2008
- Applications: High building, tower, crane, high chimney, lighthouse, high voltage cable tower, oil well, etc.
- Standard: MH-T 6012-1999; ICAO Annex 14
- Certificate:
- Patent:
- Improve Records:
- Fault Records:
- Quantity/Delivery Day: 10 Piece / 7 Days
