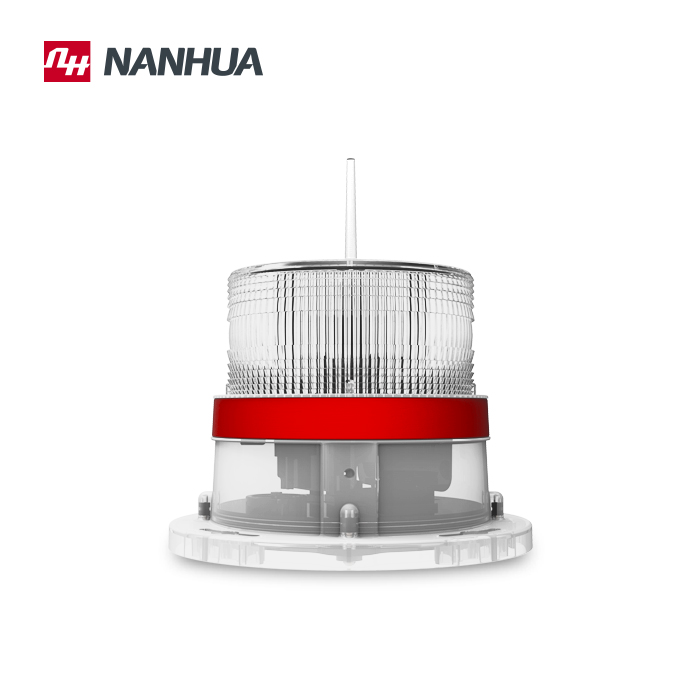

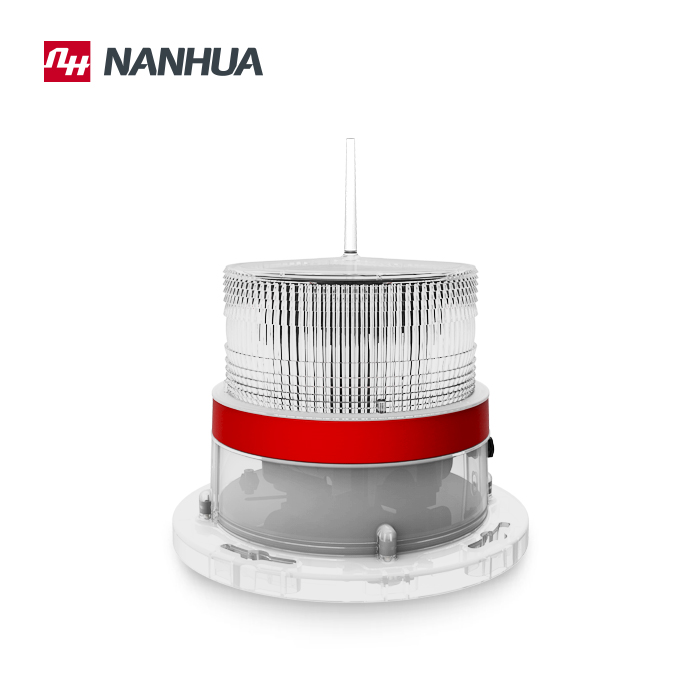

ML201A 2.5nm solar powered led navigation warning light
ML201A solar powered marine lights
Application
- Ideal for hazard marking, aquaculture, navigation, perimeter lighting & a host of other applications.
Major functions&Features
GSM remote control.
GPS ( optional).
Based on LED technology, its color complies to IALA Recommendations E-200-1.
Lamp shade, lamp body integration design, IP68.
PC housing, UV resistance, shockproof and corrosion resistance.
With bird spike.
256 kinds of flashing rate are available, comply with IALA.
Specifications
Light Characteristics | |
Intensity | 10cd |
Visible Range | >2 .5nm |
Available colors | Red, amber, green, blue, white |
Vertical degree | >9 ° |
Horizontal degree | 360 ° |
Light source | LED |
LED life | ≥100,000 hrs |
Electrical Characteristics | |
Autonomy | >20 days(12hour darkness,12.5%duty cycle) |
On/off level | 300 lux±100lux |
Flashing rate | complies to IALA Recommendations, total 256 available flashing rate(available steady burning) |
Power Supply | |
Solar module type | Multicrystalline |
Output | 1.8 Watts |
Battery type | High grade NiMH-Environment friendly |
Battery capacity | 3.6V/8 AH |
Physical Characteristics | |
Integrated housing | UV resistance PC |
Waterproof | IP68 |
Weight | 1.7 KG |
Ambient temperature | -30℃ ~ +70℃ |
Size | H: 170mm, D: 228mm |
Mounting dimension | Φ200-4XM6 |
Customized | External power or Infrared control |
Installation and operation
Solar navigation light must be installed in a place where sunshine can be fully received, to ensure that the solar lights can work continuously.
Keep lamps and fixtures installed in the axis perpendicular to the mounting surface, mounting surface should be smooth and have sufficient mechanical strength.
If first time using, the light does not burning or weak burning in dark environment, put the solar light exposure to sunlight for 12hours, then it will be normal burning.( When recharging the light, please keep the hand switch on. If not, recharging is not available)
If stored for long periods, manual switch should be put OFF side, and in a low humidity and dry place, every 40 days set the solar lights out exposure under sunlight to ensure the battery capacity. (Please turn on the switch when putting the light in the sun)
The light is built in Ni-MH battery. After 450 (15 months) using, the battery capacity will decline to initial battery capacity about 80%, please change the batteries.
Any questions in operation please contact us.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
