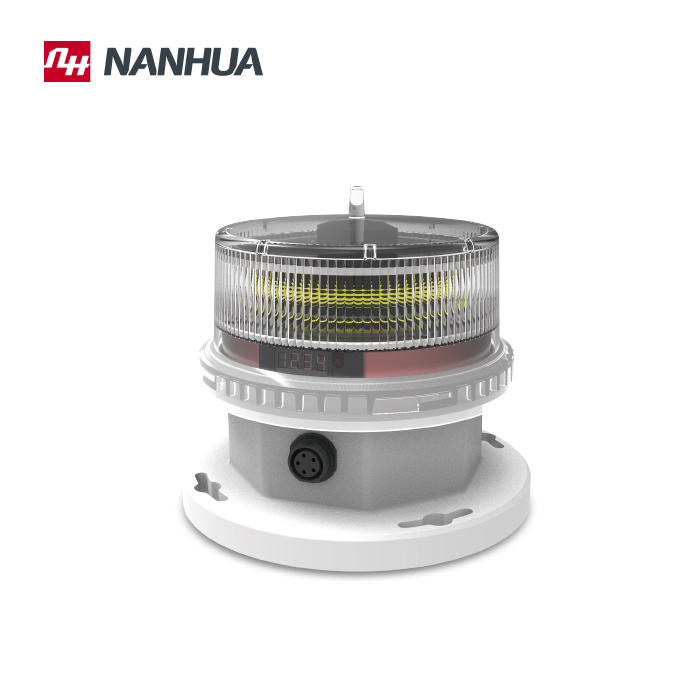

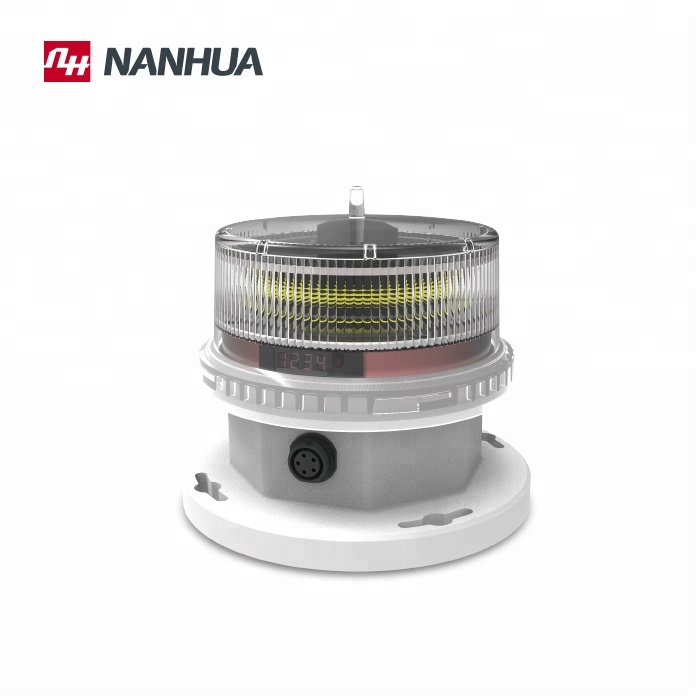

ML50 LED navigation warning light
- ML50 marine lantern can be issued at night lights, and meet the visible distance of five to seven nautical miles, used to nocturnal ship guidance.
- Applicable to the marine buoys, river buoys, shore, fixed lampposts and offshore oil derrick lights and so on.
- The unique design allows the ML50 marine lantern to be used in harsh environments
Major functions&Features
GSM remote control.
GPS ( optional).
Color complies with IALA Recommendations E-200-1.
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing, UV resistance, shockproof and corrosion proof. With bird spike.
256 kinds of adjustable flashing rate are available, comply with IALA.
Intensity is continuously adjustable. Photocell controls On/Off automatically and the value of luminance switch can be adjusted.
- Extremely Reliable and cost saving.
- Solar power is available (Optional).
Specifications
Implementation standards | |
JT/T 761-2009 | Marine lantern general technical conditions |
JT 7007-1993 | Marine lantern intensity measurement and light range calculation |
GD22-2015 | Electrical and electronic products type approval test guide |
IALA Recommendations E-200-1 | Marine Signal Lights Part 1 – Colours Edition 1 |
Electrical Characteristics | |
Input voltage | AC100-240V |
Maximum power | 25W |
Power frequency | 50-60Hz |
Input Current | 0.6A @115VAC 0.34A @230VAC |
Inrush Current | 16A @115VAC 30A @230VAC |
Mechanical structure parameters | |
Main material | Body:ABS+PC PC housing:PC |
Ambient Humidity | 0% ~ 90% RH(No condensation) |
Operating Temperature | Ta -40°C ~ +60°C |
IP Rate | IP Rate |
Color | White |
| Weight | 2.1 kg |
Optical parameters | |
Light-emitting element | LED |
Working way | 256 kinds of flash rate adjustable |
Vertical degree | ≥7° |
Horizontal degree | 360° |
Color | Red, green, blue, yellow, white |
Photocell illumination threshold | 200-500LX(adjustable) |
Visual distance | 5NM(77cd,Intensity gear 30%) 7NM(270cd,Intensity gear100%) |
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
