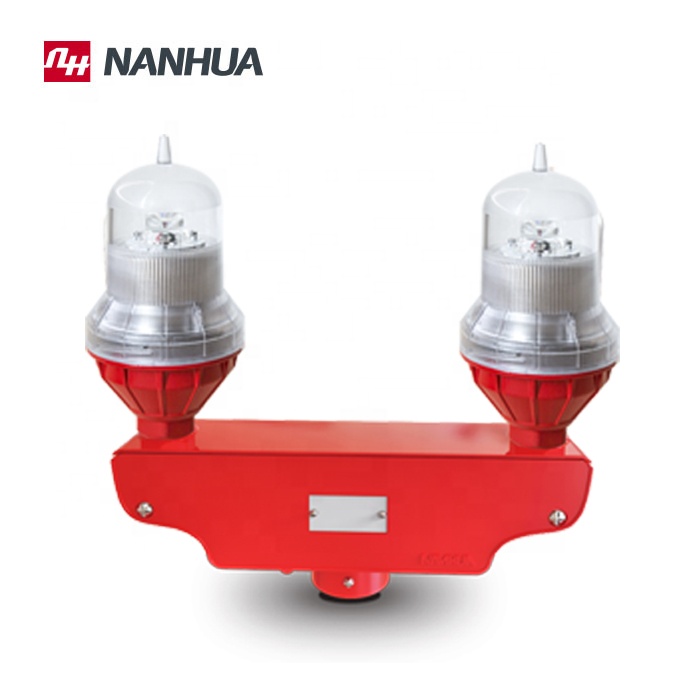

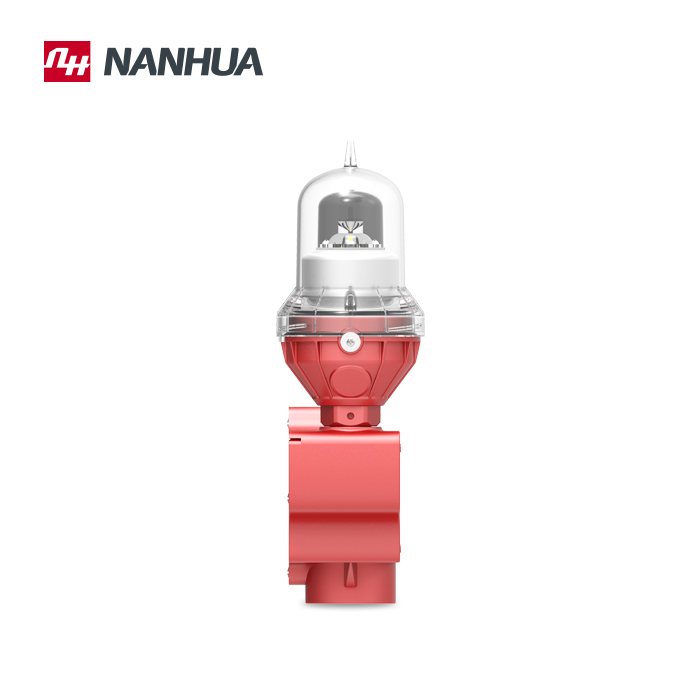

LS810D obstruction warning light
LS810D tower aviation lights/NANHUA obstruction light
- ICAO Low intensity Type A&B&E obstacle lights
- FAA L-810& L-810(F) Steady-burning red obstruction light & Flashing red obstruction light
- Application: Telecom tower, Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Main fuctions and features
- Professional photometric lens design, valid keeping light beam in the scope as required.
- Based on latest LED technology,extremely low power consumption, and high efficiency.
- Outdoor use with water proof, wind and corrosion resistance.
- No electromagnetic or audio interference.
- G3/4” screw thread pipe installation, ease of mount.
- EMC compliance. Use constant current driver to extend LED lifespan.
- Built-in photocell (can be customized) and fault alarm signal output.
- Equipped with anti-falling device.
- Steady burning or flashing type optional, flashing rate adjustable.
- External two M20X1.5 Waterproof gland can be customized.
Specification
Standard | Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810 | Vertical degree | ≥10° |
Light source | High luminance LED | Horizontal degree | 360° |
Light color | red(other color can be customized) | Flashing rate | 30FPM/40FPM/60FPM/ steady burning can be adjusted |
Operating voltage | AC110240V/DC48V/DC12V | Flashing duration | 150±20ms |
Power consumption | 4W | LED lifetime | ≥100,000h |
Intensity | ≥32.5cd | Photocell on/off level | 500±50Lux |
| |||
Operating temperature | -40°C ~ +70°C | IP protection | IP65 |
Relative humidity | 10% ~ 95% (no condensing) | Weight | 2.2kg |
Material | Body:aluminum alloy Housing:PC |
|
|
Installation and operation
- Please check the supply voltage does comply with rated voltage of the lamp.
- Screw the lamp on G3/4’pipe of mounting bracket, which should be fixed on a smooth surface with enough mechanical strength. Or you can select our mounting bracket: PJ024, PJ005. Note that installation is fixed and reliable, so as not to fall.
- If the lamp is with photocell, please do not put photocell direct to nearby light. Meanwhile ensure that the photocell is not obstructed by nearby object.
- Open the connection box and connect the power wire, signal wire according to marking. Then remount the connection box.
- Switch on the power after check up. The light begins to work.
Notice
- When the lamp works, temperature rising is normal phenomenon.
- Please do not open any components except professional serviceman.
- The product is a sealed structure. Do not be tampered by anyone other than registered
installer.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
