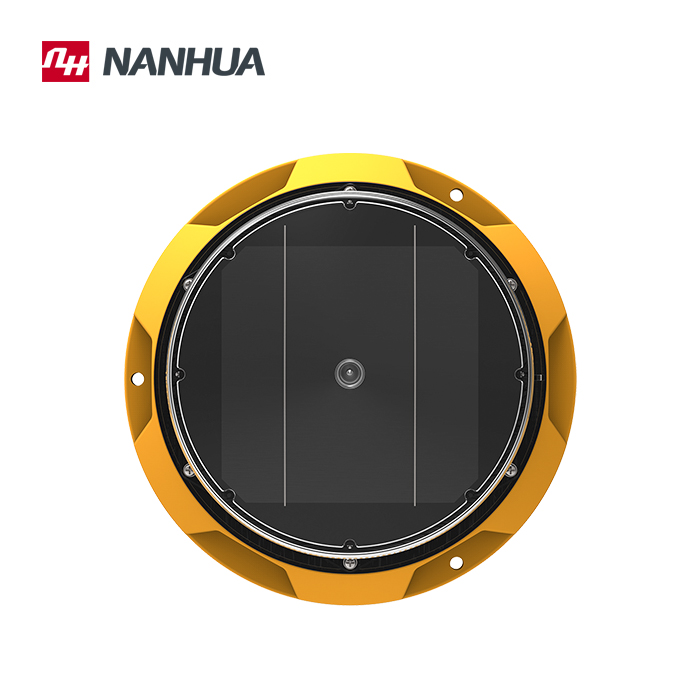

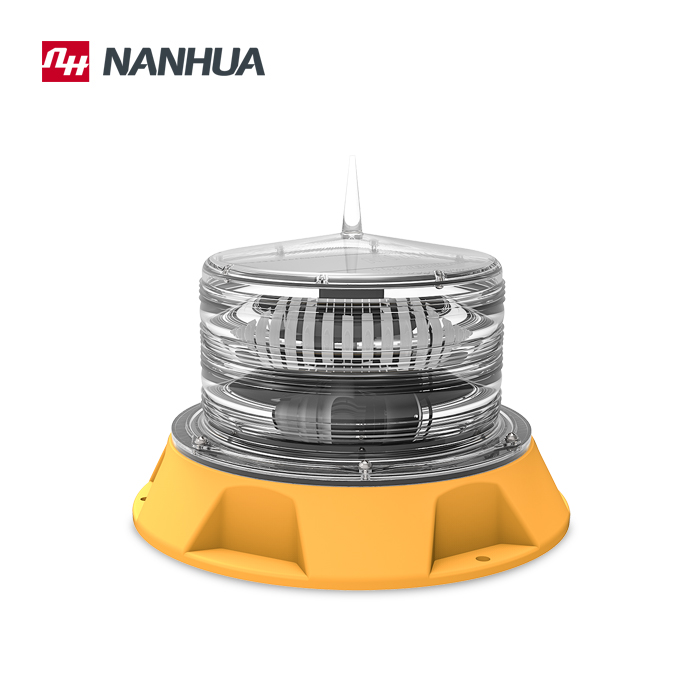

LT810A solar powered aircraft light
LT810A aircraft obstruction solar light
Obstruction light for a wide variety of cranes used in Harbors, Metallurgies, Towers (Telecom, GSM,Smokestacks, Buildings and any other potentially hazardous obstructions for air traffic with a steady burning red or flash safety light.
Main functions and features
Working stable, low maintenance costs. Anti-vibration,corrosion resistance.
Built-in Ni-MH battery, easy for replacement.
Housing: PC, with bird spike,good impact strength, thermal stability, gloss.
International standard | ICAO(Annex 14) Type B low intensity aviation light and FAA-L810 | ||
Light source | LED | Vertical degree | ≥10° |
Light color | Red | Horizontal degree | 360° |
Intensity | >32.5cd | Flash rate | 30 times/minute |
LED life | ≥100.000h | On/off level | 70/100Lux |
Battery capacity | 3.6V/8AH NiMH | Solar panel | 4W/5V |
Autonomy | 7 days (at 25℃, if the ambient temperature is lower than 0℃ or above 40℃, it will affect the battery discharge) | ||
| |||
Operating temperature | -40℃~+55℃ | IP Code | IP65 |
Humidity | 10%~95% | Weight | 4.6Kg |
Material | Base:Aluminium alloy Housing:PC | ||
Installation and Operation
- Mount the solar light in the most suitable place such as under direct sunlight, to ensure its continuous operation.
- Installation:G3/4”Pipe mounting or Flange mounting, refer to mounting dimension diagram.
- For first usage, open the battery switch at the bottom. If store for a long time, close the switch.
- It has photocell control function. When the surrounding lamination is lower than the photocell switch lamination, the light starts flash.
Notice
The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
Replace the battery regularly in order to keep light operate normally. It is suggested to replace it every year.
If the storage time is over 6 months, the light should be placed in the sunshine for 3 days to be charged fully before using.
Be careful for bird spike in case of being injured.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
