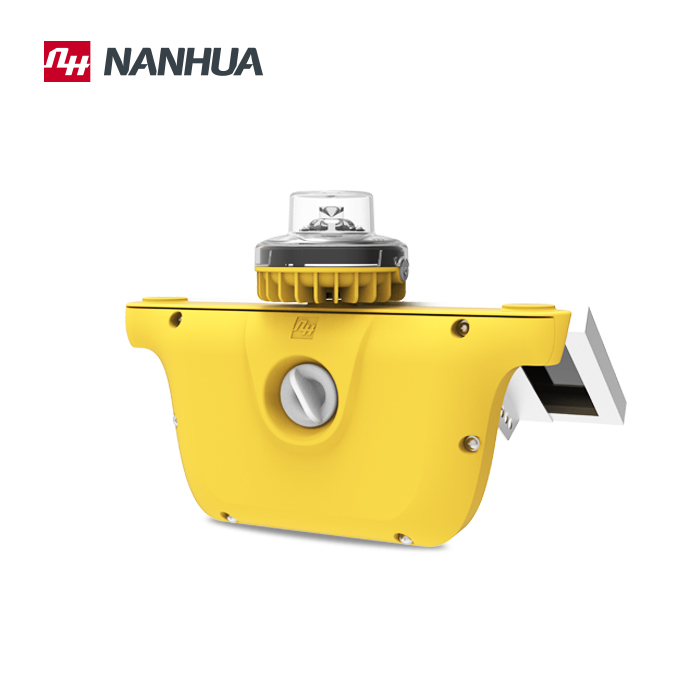

LT601 solar powered aircraft light for tower
Click on the image to view the original image
Product: views:6LT601 solar powered aircraft light for tower
Branch: NANHUA
Type: Aviation Obstruction Lights, solar type low intensity obstruction light
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:56
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights, solar type low intensity obstruction light
Lamp Power(W):
6
Beam Angle(°):
≥10°
IP Rating:
IP65
Certification:
CE
Emitting Color:
red(others can be customized)
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Model Number:
LT601
Products name:
LT601 solar power tower warning light
Light source:
LED
Intensity:
Type A:10cd,Type B:32.5cd
Battery:
3.6V/8AH NiMH
Solar panel:
6W/5V
Autonomy:
>7 days (at 25°C)
Operating temperature:
-40°C~+55°C
IP Code:
IP65
Weight:
3.3 - 3.5Kg
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month solar power tower warning light
Packaging & Delivery
Packaging Details
Cartons or Wooden cases as requirement of aviation obstruction light LT601 solar power tower warning light
Port
Shanghai Port
Lead Time:
1~4 weeks depends on one batch order quantity

LT601 solar power tower warning light

Product Description

 LT601 solar airfield lighting

  • China(CAAC)          MH6012-2015                                           Aviation Obstruction light
  • EU(ICAO)               ICAO Annex 14 Volume 1 6th Edition        Aerodrome Design and Operations
  • U.S. (FAA)             Advisory Circular 150/5345-43GH            Specification for ObstructionLighting Equipment
  • Application:

LT601 aviation obstruction light applying to masts & tower obstacles (Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.



Main functions & Features

  • Working stable, low maintenance costs.
  • Anti-vibration, corrosion resistance.
  • Built-in Ni-MH battery, easy for replacement.
  • Housing: PC, with bird spike,good impact strength, thermal stability, gloss
  • zigbee wireless alarm signal output(optional)

Specifications

Reference standard

ICAO-Type A low intensity avaition light

Light source

LED

Vertical degree

≥10°

Light color

red(others can be customized)

Horizontal degree

360°

Intensity

≥10cd

Work way

Steady burning(others can be customized)

LED lifetime

≥100,000h

On/Off level

500Lux(On/Off)

Battery

3.6V/8AH NiMH*2

Solar panel

6W/10V

Autonomy

>7days(at 25℃,if the ambient temperature is lower than 0℃ or above 40℃, it will affect the battery discharge)



Operating temperature

-40℃~+55℃

IP Protection

IP65

Humidity

10%~95%

Weight

3.3 Kg

Material

Base: Aluminium alloy, Housing:PC


Installation

  • Mount the solar light in the most suitable place such as under direct sunlight, to ensure its continuous operation.
  • Installation:G3/4″pipe mounting.
  • For first usage, open the battery switch at the bottom. If store for a long time, close the switch.
  • The angle of solar panel is adjustable from 15°~60°. End user can obtain suitable angle by adjusting the installation holes.
  • The light is with optically control function. When ambient illumination is below 500lux, it starts to work.

Battery replacement

  • Loosen 6 pcs of screws and case cover.
  • Take out the old battery.
  • Replacing new batter and fix case cover (Do not short circuit).

Notice

  • The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
  • Replace the battery regularly in order to keep light operate normally. It is suggested to replace it every year.
  • If the storage time is over 6 months, the light should be placed in the sunshine for 3 days to be charged fully before using.
Company Information

NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.



Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.



Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.



NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.

Our Philosophy


NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.


NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.


NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.



Features of Aviation obstacle lights (FAA)



Features of Aviation obstacle lights (ICAO)

Light Type

Colour

Signal type/

(flash rate)

Peak intensity(cd) at given Background Luminance(b)

Day

(Above 500cd/m²)

Twilight

(50-500cd/m²)

Night

(Below 50cd/m²)

Low-intensity,Type A

(fixed obstacle)

Red

Fixed

N/A

N/A

10

Low-intensity,Type B

(fixed obstacle)

Red

Fixed

N/A

N/A

32

Low-intensity,Type C

(mobile obstacle)

Yellow/

Blue

Flashing(60-90fpm)

N/A

40

40

Low-intensity, Type D

(follow-me, vehicle)

Yellow

Flashing(60-90fpm)

N/A

200

200

Low-intensity, Type E

Red

Flashing

N/A

N/A

32

Medium-intensity,Type A

White

Flashing(20-60fpm)

20 000

20 000

2000

Medium-intensity,Type B

Red

Flashing(20-60fpm)

N/A

N/A

2000

Medium-intensity,Type C

Red

Fixed

N/A

N/A

2000

High-intensity, Type A

White

Flashing(40-60fpm)

200 000

20 000

2000

High-intensity, Type B

White

Flashing(40-60fpm)

100 000

20 000

2000
