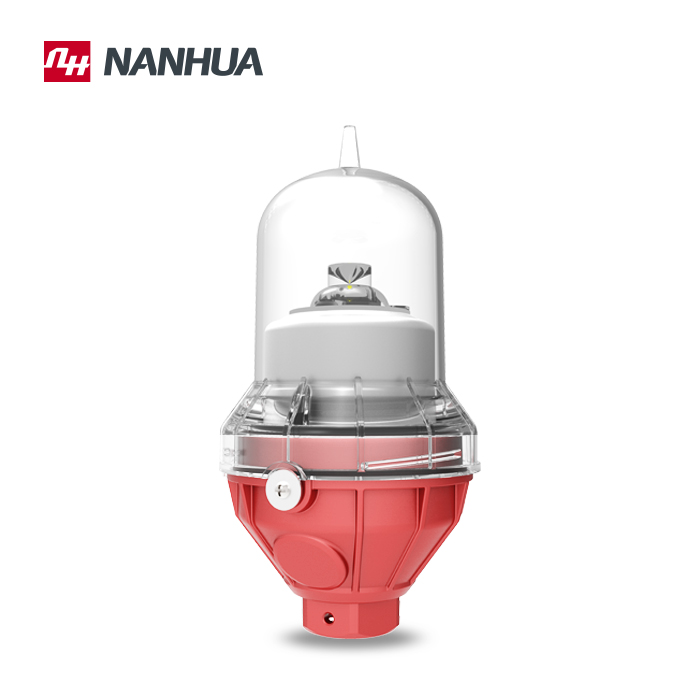

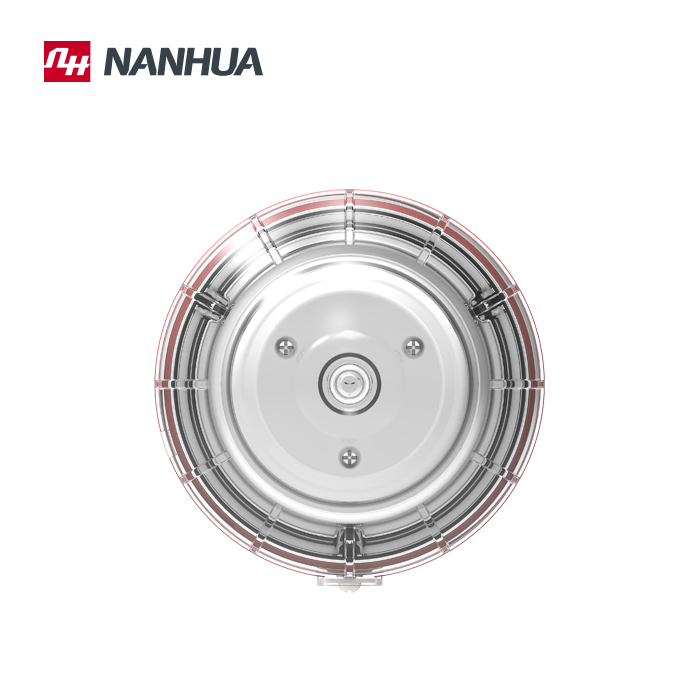

LS810 telecom tower aviation warning light
- ICAO Low intensity Type A&B&E obstacle lights
- FAA L-810& L-810(F) Steady-burning red obstruction light & Flashing red obstruction light
- Application: Telecom tower, Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Main fuctions and features
- Professional photometric lens design, valid keeping light beam in the scope as required.
- Based on latest LED technology,extremely low power consumption, and high efficiency.
- Outdoor use with water proof, wind and corrosion resistance.
- No electromagnetic or audio interference.
- G3/4” screw thread pipe installation, ease of mount.
- EMC compliance. Use constant current driver to extend LED lifespan.
- Built-in photocell (can be customized) and fault alarm signal output.
- Equipped with anti-falling device.
- Steady burning or flashing type optional, flashing rate adjustable.
- External two M20X1.5 Waterproof gland can be customized.
Specification
Standard | Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810 | Vertical degree | ≥10° |
Light source | LED | Horizontal degree | 360° |
LED color | Aviation red | Flashing rate | Steady burning or flashing(flashing rate can be selected) |
Operating voltage | AC110V~AC240V (DC48V) DC12-DC24 | LED life | ≥100,000h |
Power consumption | 4W | On/off level | 500Lux |
Intensity | Type A: ≥10cd; Type B: ≥32.5cd |
|
|
| |||
Operating temperature | -40°C ~ +55°C | IP Protection | IP66 |
Relative humidity | 10% ~ 95% (no condensing) | Weight | 0.3kg |
Material | Base:Die casting aluminum Housing: PC | ||
Installation and operation
- Check whether the supply voltage does comply with the rated voltage of the lamp.
- Insert the power cable through the bottom of lamp holder, and connect them to the terminals in the base respectively.
- Follow connection diagram and set up work model. (remark: dial switch ON---1, figure---0).
- Tighten the screws between lamp housing and base.
- Screw the lamp on the mounting bracket, which should be fixed on a smooth surface with enough mechanical strength. Or you can select our mounting bracket: PJ024, PJ028 and PJ030 (installing diagram), special bracket can be customized.
- Switch on the power, and then the light works.
Notice
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
