5-7 nautical mile electronic navigation marine
Click on the image to view the original image
Product: views:95-7 nautical mile electronic navigation marine
Branch: NANHUA
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:56
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V
Lamp Power(W):
25
Beam Angle(°):
>=7
IP Rating:
IP68
Certification:
CE
Emitting Color:
Changeable
Lamp Body Material:
ABS
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Products name:
electronic navigation marine
International standards:
IALA Recommendations E-200-1
Photocell illumination threshold:
200-500LX(adjustable)
Visual distance:
5NM(77cd,Intensity gear 30%) ,7NM(270cd,Intensity gear100%)
Color:
Red, green, blue, yellow, white
Vertical degree:
≥7°
Horizontal degree:
360°
Working way:
256 kinds of flash rate adjustable
IP Rate:
IP66/IP68
Weight:
2.1Kg
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month electronic navigation marine
Packaging & Delivery
Packaging Details
Cartons or Wooden cases as requirement of electronic navigation marine
Port
shanghai port
Lead Time:
Quantity(Pieces)1 - 2021 - 100 >100
Est. Time(days)720To be negotiated

Electronic navigation marine

Product Description

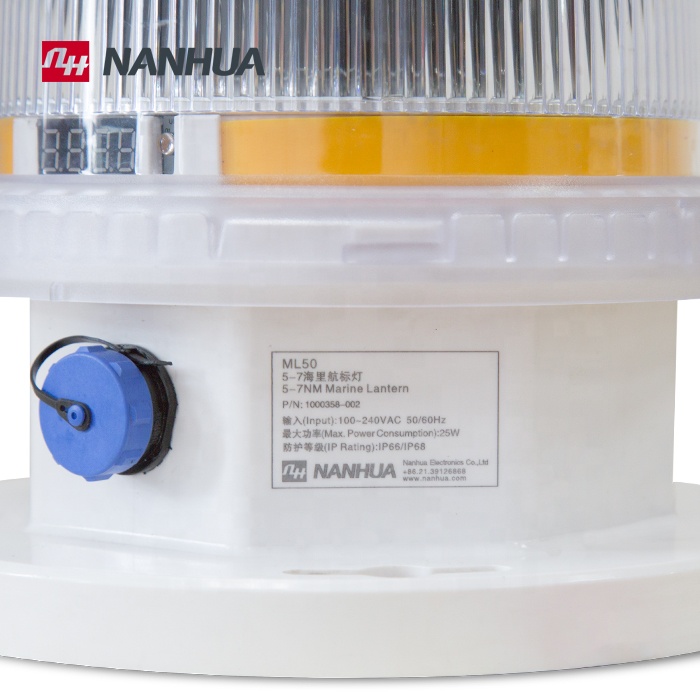

  • ML50 marine lantern can be issued at night lights, and meet the visible distance of five to seven nautical miles, used to nocturnal ship guidance.
  • Applicable to the marine buoys, river buoys, shore, fixed lampposts and offshore oil derrick lights and so on.
  • The unique design allows the ML50 marine lantern to be used in harsh environments



Major functions&Features

  • GSM remote control.

  • GPS ( optional).

  • Color complies with IALA Recommendations E-200-1.

  • Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

  • PC housing, UV resistance, shockproof and corrosion proof. With bird spike.

  • 256 kinds of adjustable flashing rate are available, comply with IALA.

  • Intensity is continuously adjustable. Photocell controls On/Off automatically and the value of luminance switch can be adjusted.

  • Extremely Reliable and cost saving.
  • Solar power is available (Optional).

Specifications



Implementation standards

JT/T 761-2009

Marine lantern general technical conditions

JT 7007-1993

Marine lantern intensity measurement and light range calculation

GD22-2015

Electrical and electronic products type approval test guide

IALA Recommendations E-200-1

Marine Signal Lights Part 1 – Colours Edition 1

Electrical Characteristics

Input voltage

AC100-240V

Maximum power

25W

Power frequency

50-60Hz

Input Current

0.6A @115VAC

0.34A @230VAC

Inrush Current

16A @115VAC

30A @230VAC

Mechanical structure parameters

Main material

Body:ABS+PC PC housing:PC

Ambient Humidity

0% ~ 90% RH(No condensation)

Operating Temperature

Ta -40°C ~ +60°C

IP Rate

IP Rate

Color

White

Weight2.1 kg

Optical parameters

Light-emitting element

LED

Working way

256 kinds of flash rate adjustable

Vertical degree

≥7°

Horizontal degree

360°

Color

Red, green, blue, yellow, white

Photocell illumination threshold

200-500LX(adjustable)

Visual distance

5NM(77cd,Intensity gear 30%)

7NM(270cd,Intensity gear100%)





Company Information

 NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.



Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.



Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.



NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.



Our Philosophy


NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.


NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.


NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.



Features of Aviation obstacle lights (FAA)



Features of Aviation obstacle lights (ICAO)

Light Type

Colour

Signal type/

(flash rate)

Peak intensity(cd) at given Background Luminance(b)

Day

(Above 500cd/m²)

Twilight

(50-500cd/m²)

Night

(Below 50cd/m²)

Low-intensity,Type A

(fixed obstacle)

Red

Fixed

N/A

N/A

10

Low-intensity,Type B

(fixed obstacle)

Red

Fixed

N/A

N/A

32

Low-intensity,Type C

(mobile obstacle)

Yellow/

Blue

Flashing(60-90fpm)

N/A

40

40

Low-intensity, Type D

(follow-me, vehicle)

Yellow

Flashing(60-90fpm)

N/A

200

200

Low-intensity, Type E

Red

Flashing

N/A

N/A

32

Medium-intensity,Type A

White

Flashing(20-60fpm)

20 000

20 000

2000

Medium-intensity,Type B

Red

Flashing(20-60fpm)

N/A

N/A

2000

Medium-intensity,Type C

Red

Fixed

N/A

N/A

2000

High-intensity, Type A

White

Flashing(40-60fpm)

200 000

20 000

2000

High-intensity, Type B

White

Flashing(40-60fpm)

100 000

20 000

2000
