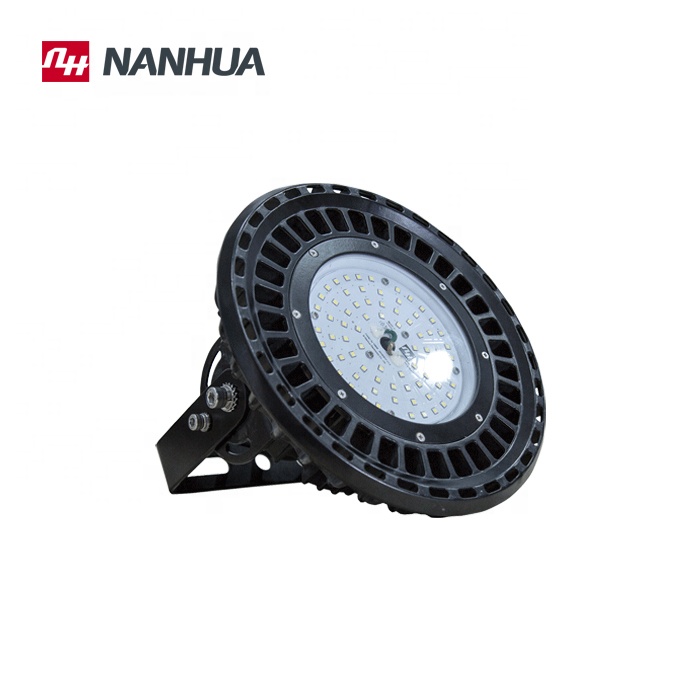

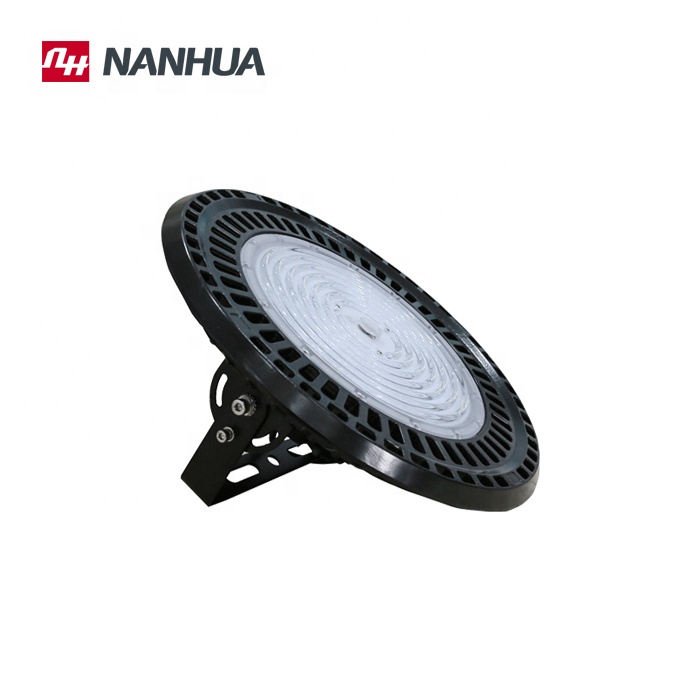

NANHUA 60W 100W 150W 200W LED High Bay Light LF22
- LF22 series high bay lights are mainly used in large space venues, such as factories, stadiums, hypermarkets, supermarkets, exhibition hall, buildings, and other indoor lighting.The light efficiency can reach 140lm/W, creating more value for customers.
- Standard: IEC60598-2-5IEC60068-2IEC60529IEC62262EN55015
- Certificate: CE
Main functions and features
Integrated die-casting structure, metal lamp housing, high strength capacity.
Hollow air duct design for efficient heat dissipation.
Human-friendly light distribution, soft light, and uniform illumination.
Anti-dust and water-proof design to reduce cleaning and maintenance cost.
60°90° beam angle are optical.
Various installation methods: Lifting mounting, Pipe mounting, Bracket mounting, etc.
Electrical |
| Mechanical |
|
Rated voltage | AC100V~AC240V | Body material | Aluminum alloy |
Frequency | 50Hz~60Hz | Cover material | PC |
Rated power consumption | 60W/100W/150W/200W | Safety wire material | SS |
Power factor | >0.9 | Operating temperature | Ta-30°C ~ +70°C |
EMC | IEC61000-4-2 CLASS 3 | IP Rate | IEC60529 IP65 |
| IEC61000-4-3 CLASS 3 | Anti-vibration | IEC60068-2-6 2G |
| IEC61000-4-4 CLASS 3 | IK rate | IEC62262 IK04 |
| IEC61000-4-5 CLASS 3 | Salt spray rate | ISO9227 240H |
| EN55015 | Body color | Black |
|
| Weight
| 60W: 2kg 100W: 2.8kg 150W: 3.9kg 200W: 4.7kg |
Photometric |
|
|
|
LEDs life span | ≥50000h |
|
|
Color temperature | Cold white: 5500K-6000K | Warm white:2700K-3000K | |
Lumen per Watt | Cold white: 140 lm/w | Warm white:120 lm/w | |
CRI | Cold white: CRI≥70 | Warm white: CRI≥80 | |
Beam angle
| 60W:110° Other:60°90°120° |
|
|
Installation and Operation
Internal wiring (Lead wire type)
- Various installation methods: Lifting mounting, pipe mounting, bracket mounting and ensure mount surface is flat and has enough mechanical strength.
- Secure safety wire to suitable position, ensure the position has enough mechanical strength
- Connect cable L, N, PE to terminal blocks.
- Power on after checking the wiring, then the lamp can be worked.
Notice
It is normal phenomenon that the lighting surface temperature rising while it is operating.
It is suggest the distance more than 3 meters between product and illuminated objective, prevent burns or fire.
Do not cover the lamp with any objectives while the lamp is working.
Turn off the power when repair or maintain the product, all wiring should be done by a licensed electrician.
