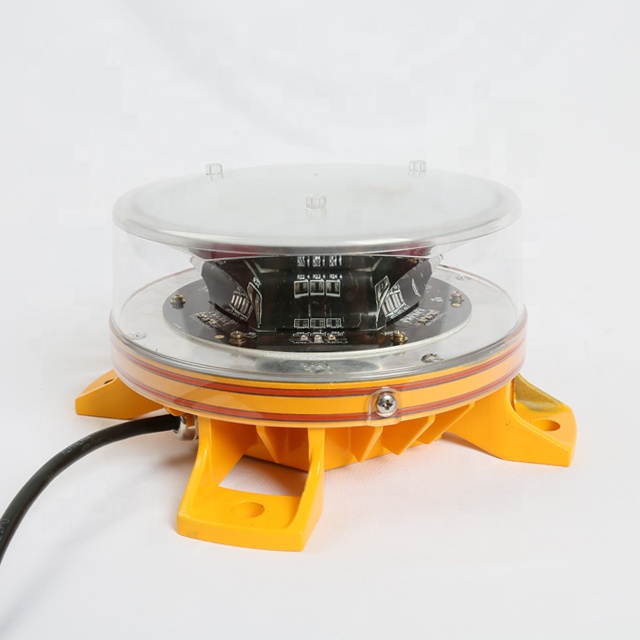

Obstruction Light LM102
LED Light source, long lifetime and low power consumption.
Professional EMC design,Anti-electromagnetic interference.
With fault alarm detection and fault alarm output function.
Main fuctions and features
Aluminum alloy die-cast shell with electrostatic powder spray surface treatment has good anti-vibration and corrosion resistance features.
Anti-UV and shock-resistant PC housing; Flammability level: UL94V-2.
LED Light source, long lifetime and low power consumption.
Professional EMC design,Anti-electromagnetic interference.
Wind resistance rating:≥240km/h.
With fault alarm detection and fault alarm output function. (NO/NC optional);
Optional synchronization function (GPS).
Optional function.
Specification
International | CAAC | MH6012-2015 | Aviation obstruction light | ||||
| ICAO | ICAO(Annex 14) Volume I, Sixth Edition | Airport design and operation | ||||
Electrical parameter | Mechanical parameters | ||||||
Voltage input | AC100V~ AC240V /DC48V | Storage temperature | Ta-40°C ~ +70°C | ||||
Fault alarm | Dry contact (NO or NC optional) | Operation temperature | Ta-40°C ~ +55°C | ||||
Average Power Consumption | ≤16W(40FPM) | Humidity | 0% ~ 90% RH (Not condensed) | ||||
Maximum power | 32W | IP Rate | IP66 | ||||
Lightning surge | IEC61000-4-5 L- L 3KV , IEC61000-4-5 L-G 6KV | Weight | 1.8kg | ||||
Wire Connection mode | with 1m lead wire | ||||||
Electrostatic Discharge | IEC61000-4-2 Contact discharge 8KV | ||||||
Optical parameter | |||||||
Light source | LED |
|
| ||||
Color | Red |
|
| ||||
Work mode | Flashing |
|
| ||||
Lifespan | ≥100,000h |
|
| ||||
Horizontal degree | 360° |
|
| ||||
Vertical degree | 3° |
|
| ||||
Flashing rate | Night:20/30/40/60FPM,steady burning; Default 40FPM |
| |||||
Flashing duration | 670ms |
|
| ||||
Effective intensity | 2000±25%cd |
|
| ||||
Photocell on/off level | 50-500lux |
|
| ||||
Installation and operation
Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object;(suitable for the type with photocell).
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world.We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
