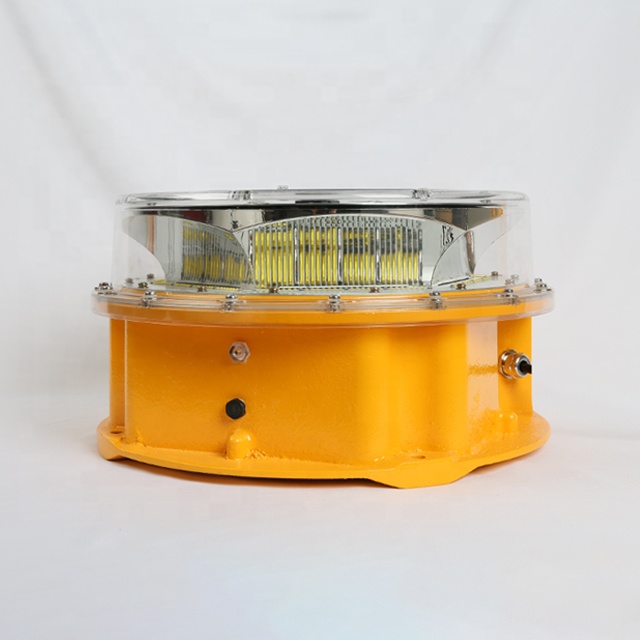

LM403 FAA medium intensity aircraft warning light 20000cd
LM403 aviation obstruction light
• LM403A Medium intensity aviation light Type A&B with working mode of 20000cd intensity white flashing in the daytime and 2000cd white flashing at night, and also with red 2000cd steady burning/flashing at night optional.
• Combined with the advanced LED light source, optical and system control technology to meet the most demanding applications;
• Suitable for towers, chimney, high building, bridge, large construction machinery, large port machinery, wind turbine generation and any other potentially hazardous obstructions to air traffic.
• Outdoor and hazardous area suitable.

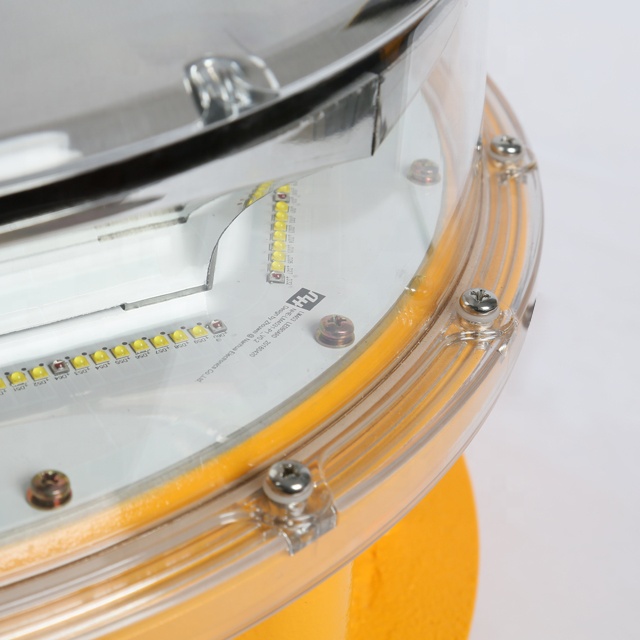

Major functions&Features
- Aluminium alloy die-cast shell with electrostatic powder spray surface treatment has good anti-vibration and corrosion resistance features.
- Anti-UV and shock-resistant PC housing; Flammability level: UL94V-2.
- Automatic power off device if open the lights cover for safety protection.
- LED Light source, long lifetime and low power consumption.
- Professional EMC design,Anti-electromagnetic interference.
- Wind resistance rating:≥240km/h.
- Local time setting control or photocell control as priority for day to night switch optional.
- With fault alarm detection and fault alarm output function.
- With synchronization function(GPS).
Specifications
International | CAAC | MH6012-2015 | ||
| ICAO | ICAO(Annex 14)14 Volume I, Sixth Edition | ||
| FAA | Advisory Circular 150/5345-43H | ||
Electrical parameters | Mechanical parameters | |||
Voltage input | AC110V/ AC220V /DC48V | Storage temperature | Ta-40℃ ~ +70℃ | |
Fault alarm | Dry contact (NO or NC optional) | Operation temperature | Ta-40℃ ~ +55℃ | |
Average Power Consumption | Daytime: 45W (40FPM)
| Humidity | 0% ~ 90% RH (Not condensed) | |
| ||||
Lightning surge | IEC61000-4-5 L- L 3kV , IEC61000-4-5 L-G 6kV | IP Rate | IP66 | |
Weight | 18.2kg | |||
Electrostatic Discharge | IEC61000-4-2 Contact discharge8kV |
|
| |
Optical parameters | ||||
Light source | LED | Color | white/white+red1 | |
Work mode | Flashing | Lifespan | ≥100,000h | |
Flashing rate | Daytime/twilight: 20/30/40 FPM; Night:20/30/40/60FPM,steady burning(red); (default 40 FPM) | Horizontal degree | 360° | |
Vertical degree | ≥3° | |||
On/Off level | 50-500lux | |||
Flashing duration | Daytime/twilight :95ms; White color at night:150ms; Red color at night:670ms |
|
| |
|
| |||
Intensity | Daytime/twilight:20000±25%cd; Night:2000±25%cd |
|
| |
1.White and red color can be optional at night;when choose red color,white color should be standby;means that when red color is in failure at night,white color began to operation.
Installation and operation
- Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
- When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object;(suitable for the type with photocell).
- Make sure the power supply can match the rated power of light before connecting.
- GPS synchronization function test in the outdoor without blocking the environment test, synchronization takes about 30 minutes .
- Open the wiring cover in side, Pass the input power cable through the power input connector on the left side of the lamp(AC or DC), connect the power cable correctly according to the marks on cable connection label,DC Voltage please pay attention to the polarity of the positive and negative poles , Penetrate the fault alarm wire and RS485 signal cable separately by the interface of alarm cable and signal cable on the right side of the light;And then check the line, please tighten the waterproof gland and buckles, and finally connected to the power supply,After power on, press the limited switch, the light starts to work.
Notice
- For high-power lamp , the surface temperature is high, it cannot be covered. And the distance from the object no less than 3m, to avoid burns or fire.
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, Isopropanol , Carbon tetra chloride, cyclohexanone and so on, otherwise, the product will be corrosion cracking.
