- Support Dimmer:
- Yes
- Input Voltage(V):
- DC12V/24V
- Lamp Power:
- 19.2W/M,20W/M,24W/M,28.8W/M
- Lamp Luminous Flux(lm):
- 1700-2900lm/m
- CRI (Ra>):
- 90
- Working Temperature(℃):
- -20 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- Certification:
- CE, RoHS, UL
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- SMD2110
- Application:
- LANDSCAPE, Indoor and outdoor
- Light Source:
- LED
- Warranty(Year):
- 5-Year
- LED Quantity:
- 320leds/m,400leds/m,640leds/m,912leds/m
- Color:
- white, natural white, warm white, Red,Green, Blue,RGB etc.
- IP Rating:
- IP20/IP64/IP65/IP68
- PCB Color:
- white, black, yellow for choice

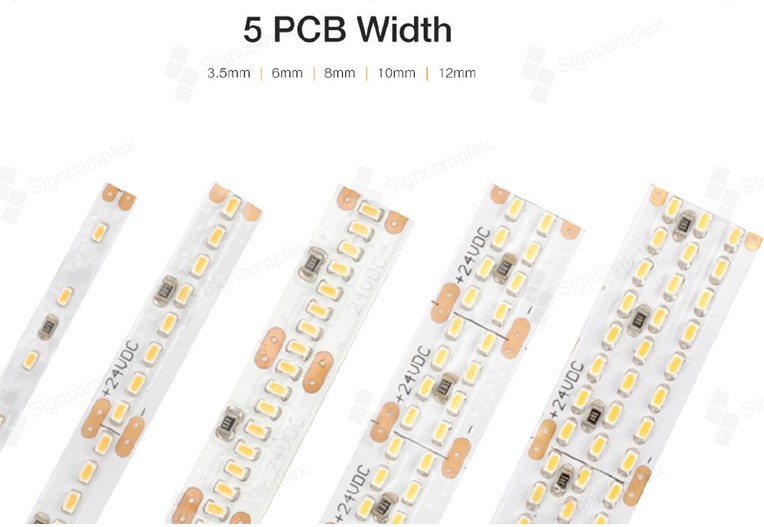

- PCB width:
- 3.5mm,6mm,8mm,10mm,12mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 61X35X24 cm
- Single gross weight:
- 12.0 kg
- Package Type:
- Reel and antistatic bag, custom package acceptable
- Lead Time:
Quantity(Meter) 1 - 500 >500 Est. Time(days) 8 To be negotiated

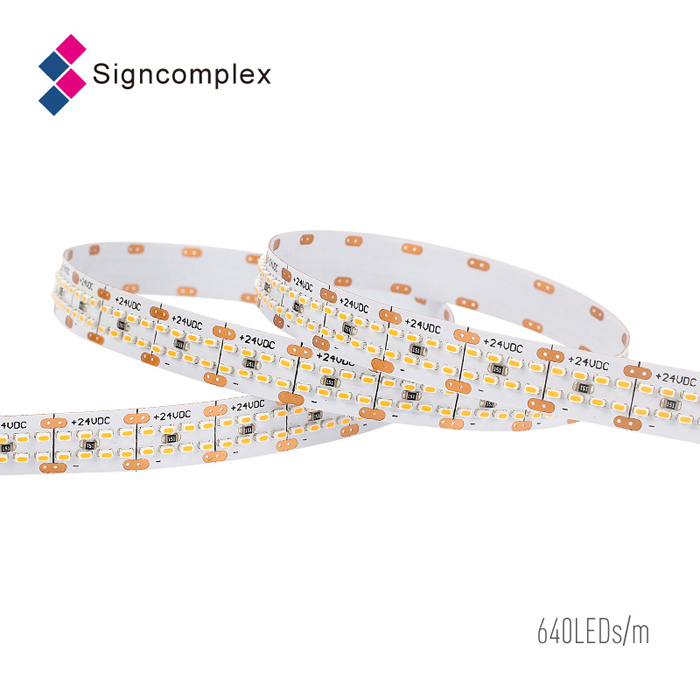

Best quality 2110 led tape light 2110 flexible led strip light
Model | SC-2110-32D-XX | SC-2110-40D-XX | SC-2110-64D-XX | SC-2110-912-XX |
Lumens/m | 1900lm, 1800lm, 1700lm | 2000lm, 1900lm, 1800lm | 2650lm, 2450lm, 2350lm | 2900lm, 2800lm, 2700lm |
Color | W, NW, WW | W, NW, WW | W, NW, WW | W, NW, WW |
Leds/m | 320 | 400 | 640 | 912 |
Rated Watt | 19.2w/m | 20w/m | 24w/m | 28.8w/m |
SMD Type | 2110 | |||
DC Voltage | 12/24V | |||
Beam angle | 120 degree |
Request price? a sample? or custom order? Contact us now for more discount! |
140 lm/w High efficiency strip | |||
High brightness and high power 3014 type LED; Double layer pure copper 2oz PCB; Standard 5 or 3m on reel. >> View Details | |||
170 lm/w High efficiency strip | |||
High brightness 2835 type LED; 120 degree; High definition, high lumen, up to 170lm/w. Cut 4pcs LEDs or cut 8pcs LEDs . >> View Details | |||
High CRI strip (CRI95/97) | |||
Full spectrum; 3528 assembled LEDs; CRI97, conform to TM-30-15 standard; Can be cut to meet requirements of different length. >> View Details | |||
Neon Flex | |||
First-class silicon and PVC material; Cuttable, max length up to 100m with one power plug; High brightness 5050 type LED. >> View Details | |||
Hybrid flexible strip | |||
5050 assembled LEDs; CRI 80, 5 colors mixed to reach 65536 colors, and the LED strip is equipped with special controller to control 52 kinds of variable modes; >> View Details | |||
Rigid LED Strip | |||
Seamless joint strip; High lighting effect, 2835/4014 high brightness LEDs; Magnetic or mount holder, convenient to install. >> View Details |
1) What are the best selling products in Signcomplex?
- LED strip
- Panel light
- Linear light
- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack/ Tri-proof light
- Emergency light (Exit Sign / Emergency Downlight / Camping Light)
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy, We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
