5 years warranty 55W Dimmable led panel light 1200x600 UL
Features:
1. Signcomplex UL approval type led panel light use 4014 SMD LED Chip, 80-90LM/W high luminous efficacy, CRI>80 with reliable quality, lifespan>50,000 hours.
2. Imported Japaness Mitsubishi LGP, 5mm thickness, 92% high transmitance. 5-8 years long lifespan, smooth surface and soft light.
3 PC diffuser with high light transmittance, 120 degree high temperature resistant.
4. 0-10V dimming, AC100-277V Led driver, PF>0.9, with junction box on the back for led driver.
5. Use reflective sheeting and aluminum back cover, to prevent light leaking.
6. Uniform lighting beam, low glarerating, low light polution, excellent eye protection.
7. Installation ways support suspdent with rope, embedded into the ceiling.
Technical Parameters:
| Model No. | SC-PSCAWCE6060-J55W |
| Wattage | 55W |
| Size | 600*1200mm |
| Dimmable type | 0-10V Dimming |
| Led chip | SMD4014 |
| CRI | >80 |
| Beam angle | 110 degree |
| Input Voltage | AC100-277V |
| PF | >0.95 |
| Warranty | 5 years warranty |
| Lifespan | 50,000hours |
| Application | Office, hotel, residentical, institute, restuarant, supermarket, store, etc. |
Product Pictures:
About Signcomplex:
1. TUV ISO 9001:2015 certified company.
2. Focus on LED Lighting field for 10 years.
3. More than 600 employees, 50 R&D team, 110 sales team.
4. 3 buildings, over 25,000 square meters factory area.
5. TOP 10 led lighting suppliers in US since 2013.
Signcomplex Factory Pictures:
Product Show room:
Factory scan, sales office:
Tradeshow:
Salesteam:

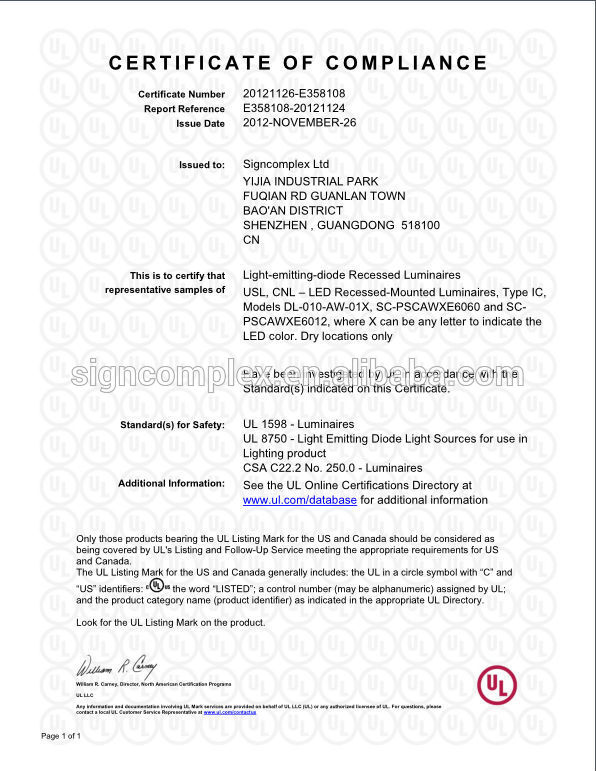

Signcomplex Equipment, R&D software, Certificates:
