Home > Products > Epistar chip PF>0.9 COB 6inch horizontal rotating led downlight

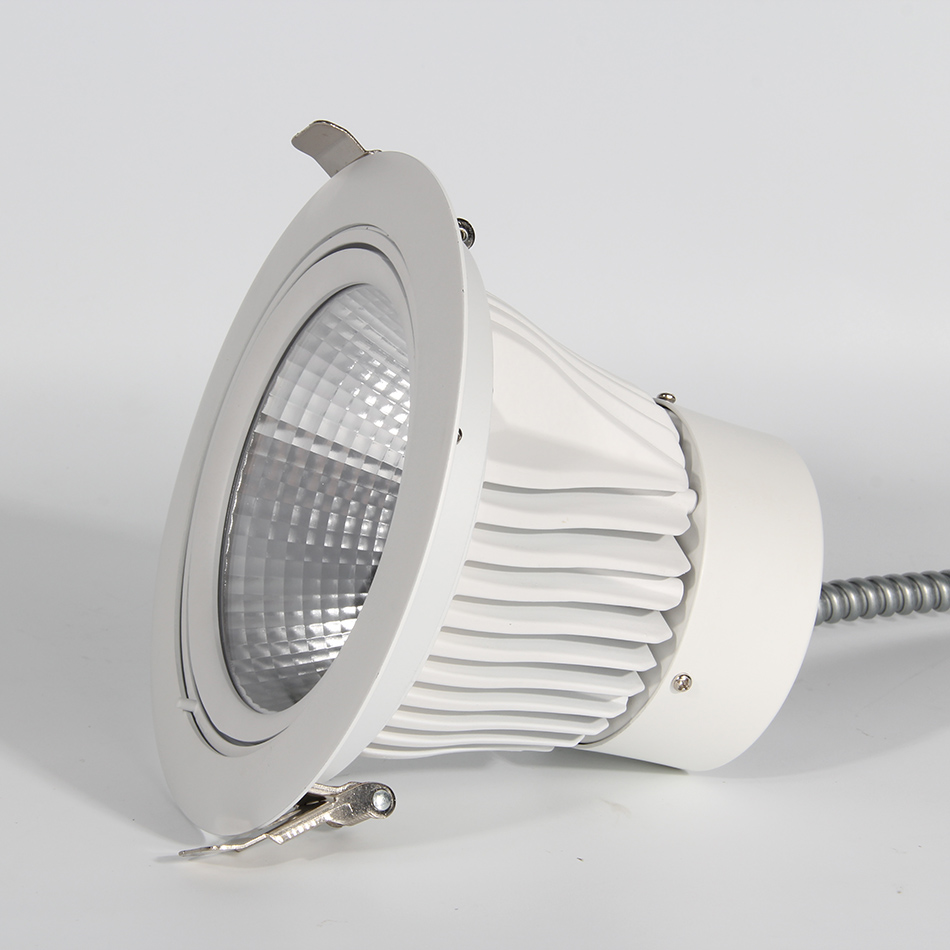

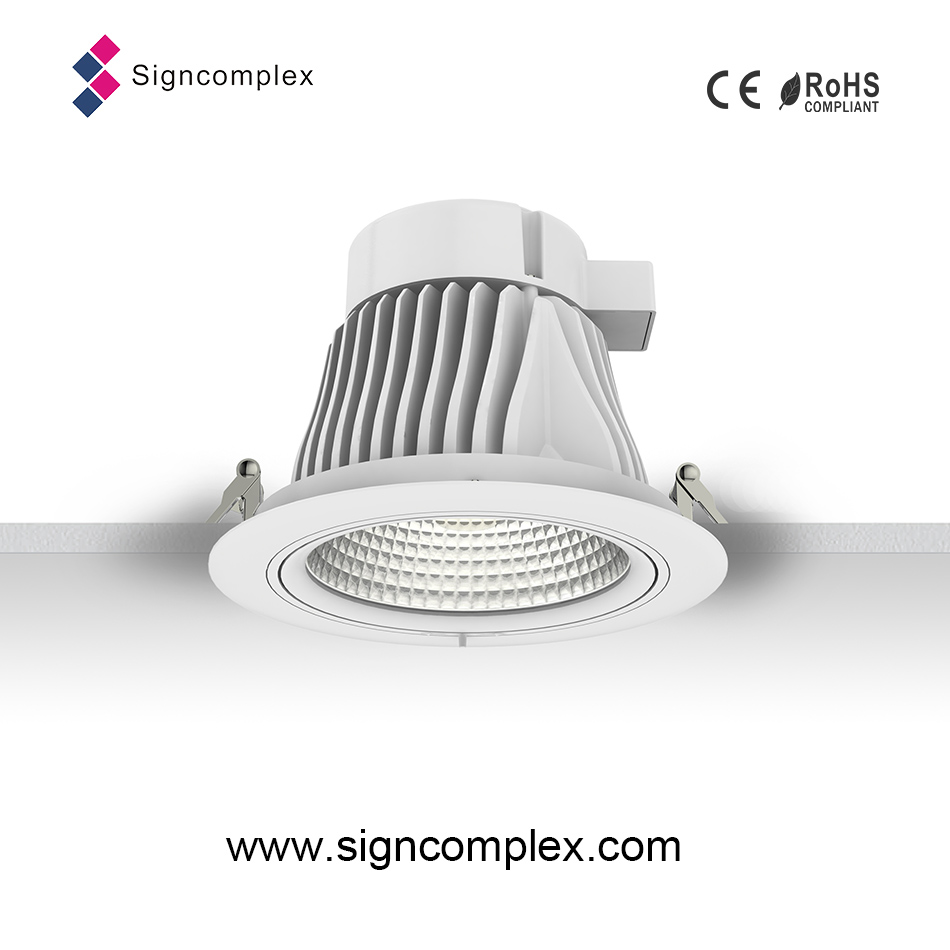

Epistar chip PF>0.9 COB 6inch horizontal rotating led downlight
Click on the image to view the original image
Product: views:4Epistar chip PF>0.9 COB 6inch horizontal rotating led downlight
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:38
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-240V AC
Lamp Luminous Flux(lm):
2720
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP33
Certification:
CE, LVD, RoHS
Model Number:
MDL6-025-AW-W-01
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Beam angle:
30degree
Color:
White/Warm white/Nature white
PF:
>0.9
Current:
<0.32A
Carton box dimension (12PCS inside):
590*390*330MM
Product Net weight:
0.87kg
Product Gross weight:
1.0kg
Applications:
hotel lobby, airport, shopping center,retail industry, museum...
Product name:
horizontal rotating led downlight
Item:
Epistar chip PF>0.9 COB 6inch horizontal rotating led downlight
Color Temperature(CCT):
Pure White
Lamp Power(W):
25
Working Temperature(℃):
-20 - +40
LED Light Source:
COB ( Epistar )
CRI (Ra>):
80
Warranty(Years):
3
Lamp Luminous Efficiency(lm/w):
120
Supply Ability
Supply Ability:
8500000 Piece/Pieces per Month we have stock for the horizontal rotating led downlight
Packaging & Delivery
Packaging Details
Product Net weight: 0.87kg
Product Gross weight:1.0kg
Dimension of inner box:185X185X150MM
Port
Shenzhen and Hongkong
Lead Time:
Shipped in 15 days after payment

Epistar chip PF>0.9 COB 6inch horizontal rotating led downlight



Description of the led downlight :

Luna COB 6" Downlight is designed to be rotatable 358° at horizontal and 30° at vertical direction, could meet various need on emitting directions. It is 25W including driver and delivers over 2000lm of 80+ CRI light while achieving up to 85lm/W. This outstanding performance is achieved by one 35W COB with Epistar chip. Its pending patent design especially the heat sink make sure perfect heat dissipation and low temperature on light body.



Features of the led downlight:

1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6.Energy-saving and high efficient LED driver.





Specification of the led downlight:



Model #CCTLED Type
(±10%)
Lumen(lm)
(f10%)
CRIPower(W)
(±10%)
Beam angleCurrentVoltage
(V)
PF
MDL6-025-AW-W-015000KCOB
( Epistar
chip )


2130>8025W30°<0.32A100-240V
AC
>0.9
MDL6-025-AW-NW-014000K 2050
MDL6-025-AW-WW-013000K 2040





Dimension:





Install drawing:

Package information:

C O B6"
Product Net weight: 0.87kg
Product Gross weight:1.0kg
Dimension of inner box:185X185X150MM



Application:

Commercial lighting where need high light output like hotel lobby, airport, shopping center,
retail industry, museum, jewelry show room and so on..



Production of flowsheet:



Main products
Certifications



Company Image











Sales Team



Production line



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- panel lights
- linear light
- high bay
- corn bulb

- tube

-LED controller

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?





Please email for details!
