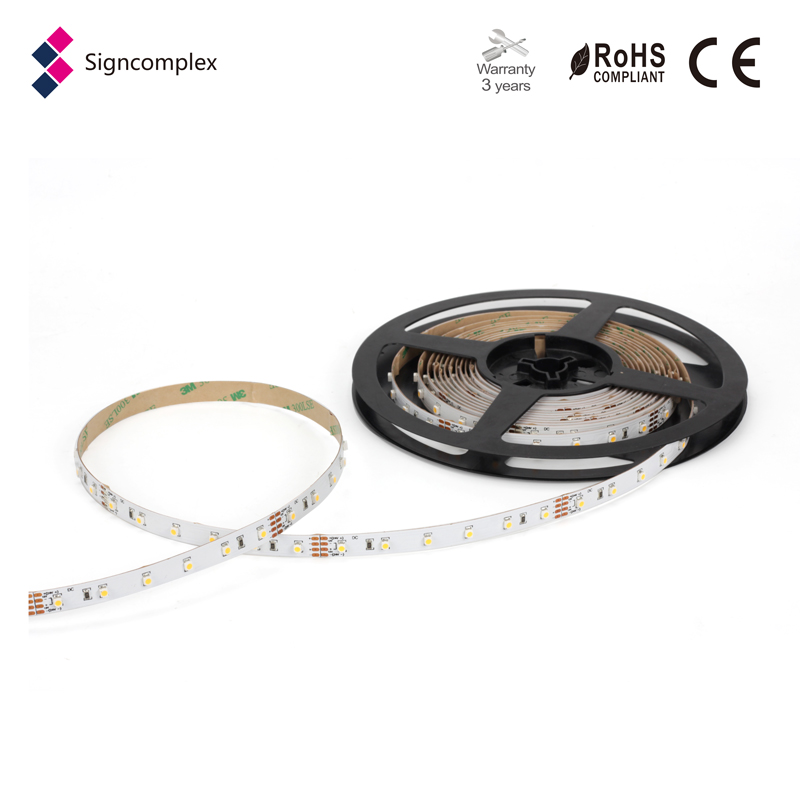

12V/24V led flexible strip light with 3 years warranty
Description :3528 12V/24V share monocolor light bar.
Features:
1.3528 assembled LEDs;
2. Color rendering index: CRI80;
3. May be cut short to meet the requirement of different lengths;
4. Adopt 12V/24V selective connected power supply mode;
5. CE, ROHS, quality guarantee for three years.
6. Waterproofing grade: IP20
7. Customized package
Product Application:
1. Stage lighting
2. Lighting for holiday, activities and exhibition;
3. Waterfall light and back light of shop sign;
4. Lighting for path and contour;
5. Light string with LED luminous character
6. Landscape and decorative lighting
Electrical parameters of the product:
| Model | Color | Lumen (LM/M) | LED Type | LED Qty (leds/m) | Beam angle(°) | DC Voltage (V) | Current (A/M) | Power (W/M) | CRI | continuous connection length(M) |
| SC-DC-X | W | 390 | 3528 | 60 | 120 | 12/24 | 0.4/0.2 | 4.8 | 80 | 5 |
| WW | 330 | |||||||||
| NW | 320 |
Size drawing:
Packaging drawing:
Considerations of the product:
1. The light bar and other accessories should be free of pressure.
2. Don’t damage conductor parts of the circuit board at the time of installation.
3. The installation of the light bar should be made at the condition complying with electrical safety standard
and only be carried out by professional personnel.
4. Ensure to use power transformer to convert for load.
5. When it is installed on metal or conductor surface, insulation protection should be made at the
contacting place.
6. Observe the positive and negative pole before installation for correct connection to prevent damage to
light bar.
7. Please note to prevent static at the time of installation.
8. The product should be provided with anti-corrosive environment such as avoidance of damp water ball
and other adverse factors.
